2021 Kawasaki Z H2 Se Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

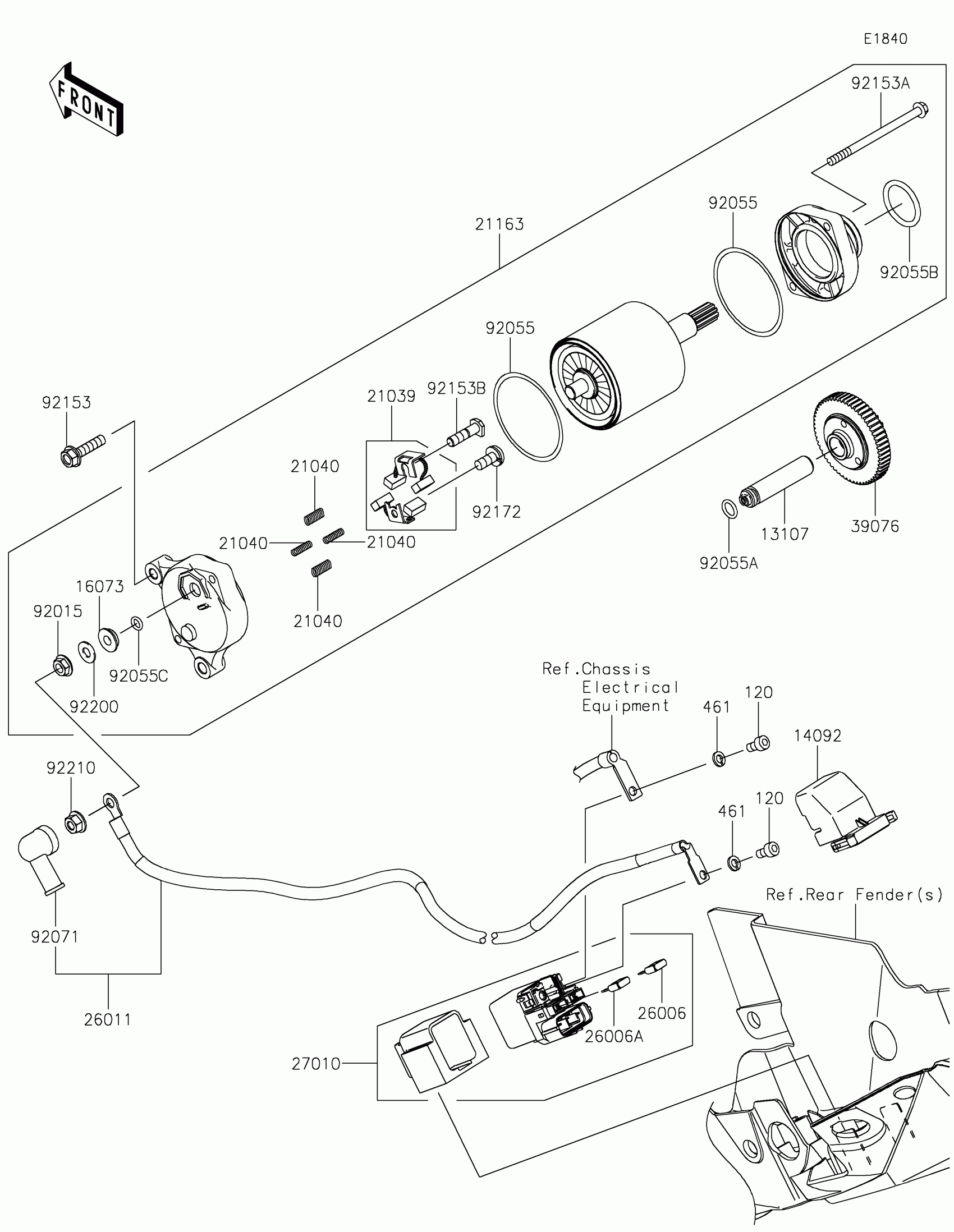

2021 Kawasaki Z H2 Se Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X10

120CB0510

1

$1.42

In stock

13107

SHAFT

13107-0813

1

$59.67

In stock

14092

COVER

14092-0109

1

$9.22

In stock

16073

INSULATOR

16073-0053

1

$11.42

In stock

21039

BRUSH,CARBON

21039-0004

1

$120.17

In stock

21040

SPRING-BRUSH

21040-0003

1

$9.47

In stock

21163

STARTER-ELECTRIC

21163-0788

1

$733.34

In stock

26006

1

$5.34

In stock

26006A

1

$4.32

In stock

26011

WIRE-LEAD

26011-0910

1

$40.60

In stock

27010

SWITCH

27010-0773

1

$138.72

In stock

39076

LIMITER

39076-0025

1

$148.54

In stock

461

WASHER-SPRING,5MM

461DA0500

1

$0.76

In stock

92015

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92055

RING-O

92055-0136

1

$6.16

In stock

92055A

RING-O,8.8X1.9

92055-099

1

$3.72

In stock

92055B

RING-O

92055-1276

1

$7.86

In stock

92055C

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92071

GROMMET

92071-0024

1

$9.86

In stock

92153

BOLT,FLANGED,6X25

92153-1592

1

$1.81

In stock

92153A

BOLT

92153-1850

1

$11.42

In stock

92153B

BOLT

92153-1866

1

$4.14

In stock

92172

SCREW

92172-0334

1

$4.14

In stock

92200

WASHER

92200-0386

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock
