2021 Kawasaki Z H2 Se Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2021 Kawasaki Z H2 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

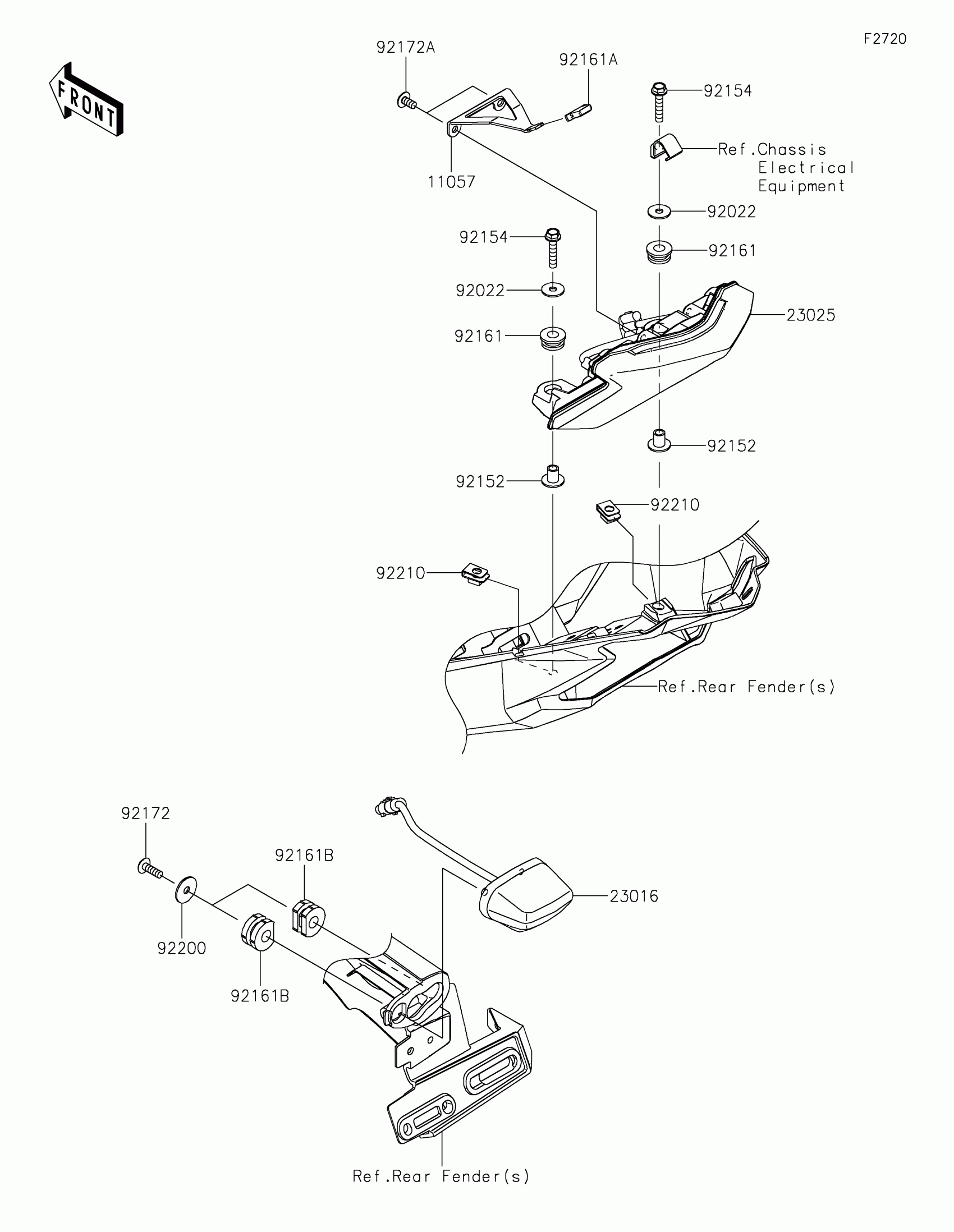

2021 Kawasaki Z H2 Se Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,TAIL LAMP

11057-0247

1

$4.31

In stock

23016

1

$67.09

In stock

23025

LAMP-TAIL

23025-0361

1

$298.53

In stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92152

COLLAR,5.6X8X11.2

92152-1562

1

$2.19

In stock

92154

BOLT,FLANGED,5X25

92154-2682

1

$1.10

In stock

92161

DAMPER

92161-0317

1

$2.71

In stock

92161A

DAMPER

92161-0365

1

$4.23

In stock

92161B

DAMPER

92161-0776

1

$4.39

In stock

92172

SCREW,TAPPING,5X16

92172-0175

1

$1.53

In stock

92172A

SCREW,TAPPING,5X10

92172-0262

1

$1.20

In stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock
