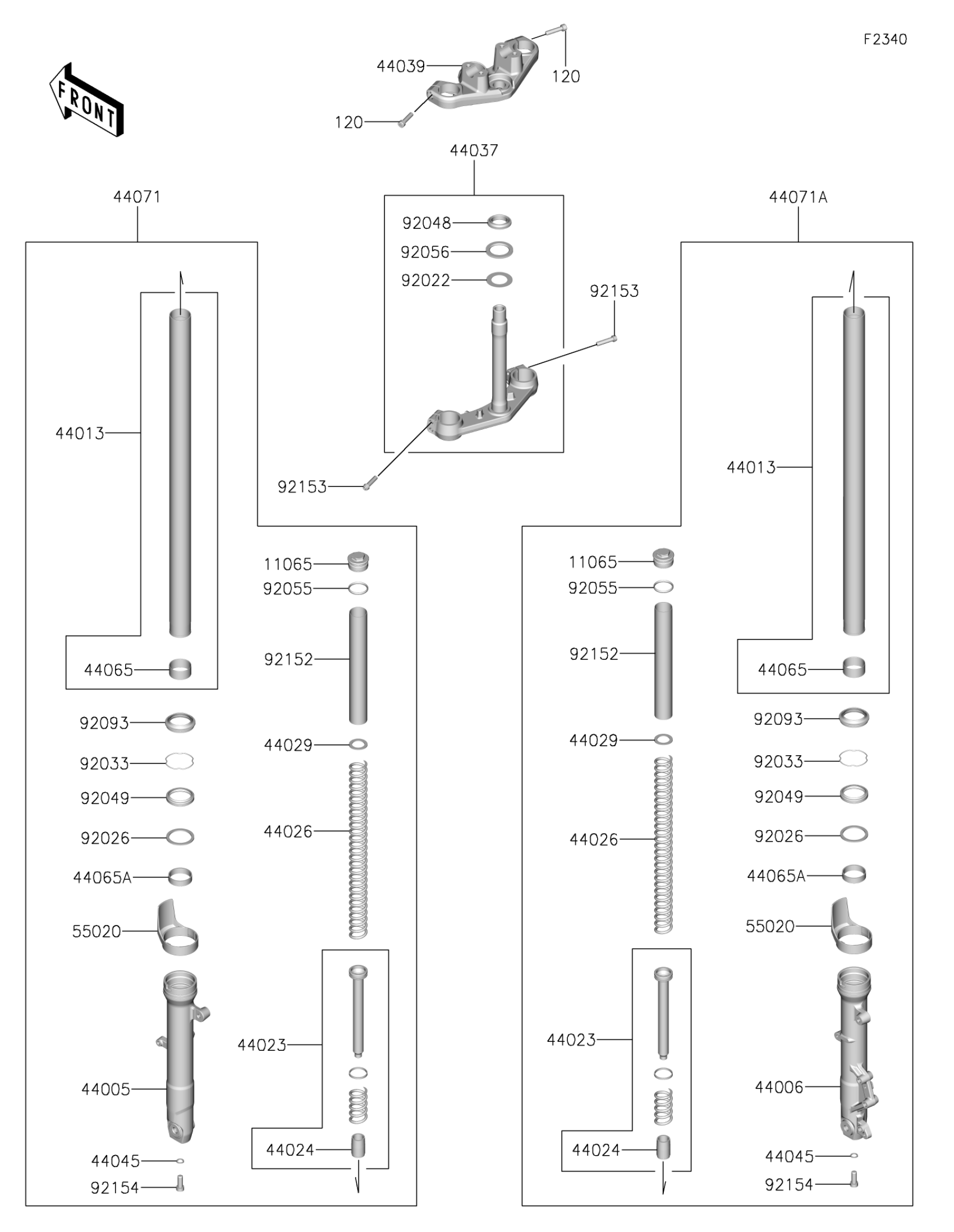

Kawasaki Z e-1 ABS Front Fork Diagram

#

Description
Price

11065

CAP

11065-1286

$45.48

44005

PIPE-LEFT FORK OUTER,F.S.BLK

44005-0130-18R

$517.06

44006

PIPE-RIGHT FORK OUTER,F.S.BLK

44006-0133-18R

$517.06

44013

PIPE-FORK INNER

44013-0416

$469.40

44023

CYLINDER-SET-FORK

44023-0197

$113.48

44024

CAP-OIL-LOCK

44024-0006

$12.34

44026

SPRING-FRONT FORK

44026-0299

$53.55

44029

SEAT-FORK SPRING

44029-1131

$10.00

44037

HOLDER-FORK UNDER,F.BLACK

44037-0178-21

$385.21

44039

HOLDER-FORK UPPER

44039-0183

$297.09

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-0076

$19.54

44065A

BUSHING-FRONT FORK

44065-0077

$19.31

44071

DAMPER-ASSY,LH

44071-1604

$724.07

44071A

DAMPER-ASSY,RH

44071-1605

$724.07

55020

GUARD,FORK

55020-0872

$8.87

92022

WASHER,30.5X50X0.6

92022-231

$4.17

92026

SPACER,FORK OUTER

92026-1276

$7.25

92033

RING-SNAP

92033-1222

$4.88

92048

RACE,STEERING STEM BEARING

92048-0048

$13.85

92049

SEAL-OIL

92049-0807

$18.32

92055

RING-O,FORK TOP

92055-1420

$4.18

92056

SEAL-OIL,STEERING STEM

92056-003

$6.75

92093

SEAL,DUST

92093-0717

$19.29

92152

COLLAR,FORK,L=275

92152-3786

$7.24

92153

BOLT,SOCKET,8X35

92153-0854

$5.98

92154

BOLT

92154-2551

$7.54

120

BOLT-SOCKET,8X35

120CC0835

$2.20
