2024 Kawasaki Z e-1 ABS Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

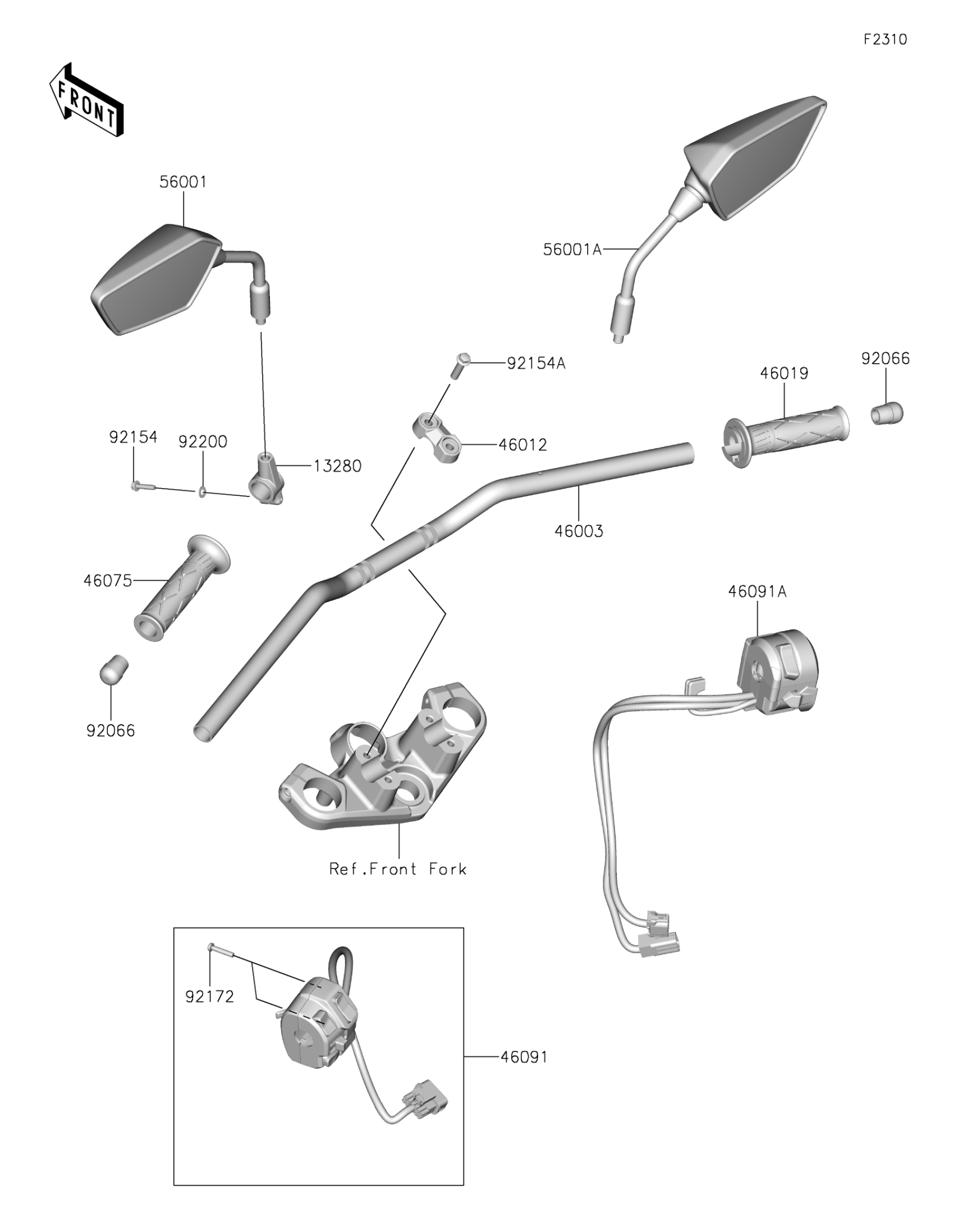

2024 Kawasaki Z e-1 ABS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13280

HOLDER,MIRROR

13280-1000

1

$20.71

In stock

46003

HANDLE

46003-0834

1

$144.67

In stock

46012

HOLDER-HANDLE,UPP

46012-0391

1

$16.20

In stock

46019

GRIP-ASSY,THROTTLE

46019-0125

1

$36.77

In stock

46075

GRIP,HANDLE,LH

46075-0663

1

$18.68

In stock

46091

1

$232.99

In stock

46091A

1

$327.99

In stock

56001

MIRROR-ASSY,LH

56001-0092

1

$47.95

In stock

56001A

MIRROR-ASSY,RH

56001-0093

1

$54.07

In stock

92066

PLUG

92066-0122

1

$1.64

In stock

92154

BOLT,UPSET,6X22

92154-1422

1

$4.17

In stock

92154A

BOLT,FLANGED,8X30

92154-3840

1

$2.41

In stock

92172

SCREW-PAN-CROS,5X25

92172-1140

1

$8.97

In stock

92200

WASHER,6.5X11.5X0.8

92200-0947

1

$0.44

In stock
