2024 Kawasaki Z e-1 ABS Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

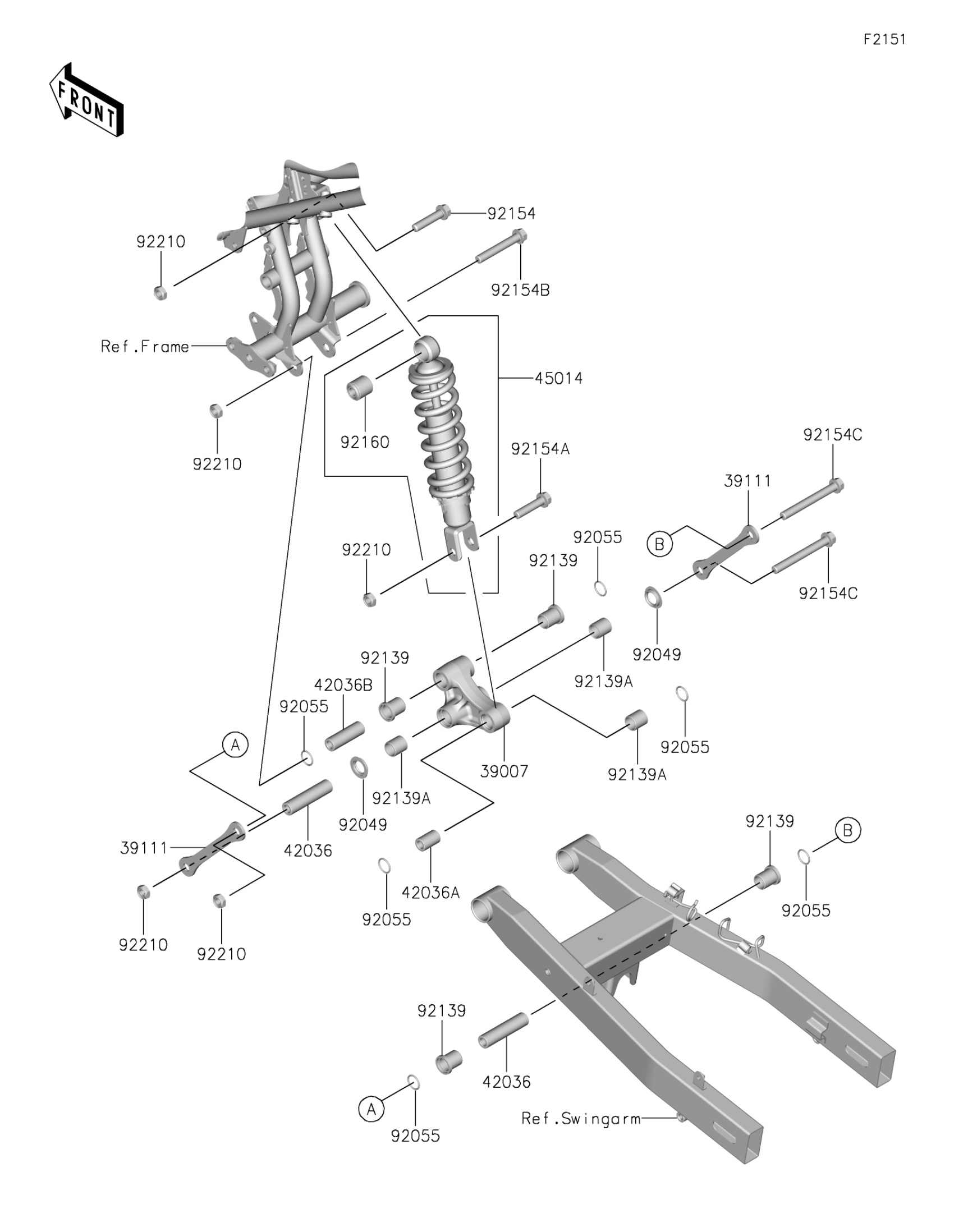

2024 Kawasaki Z e-1 ABS Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP

39007-0513

1

$131.01

In stock

39111

ROD-TIE,SUSPENSION

39111-0404

1

$34.48

In stock

42036

SLEEVE,12.1X20X83

42036-0807

1

$32.76

In stock

42036A

SLEEVE,12.1X20X32

42036-0823

1

$11.68

In stock

42036B

SLEEVE,12.1X20X62

42036-0824

1

$15.37

In stock

45014

SHOCKABSORBER,BLACK

45014-0803-10

1

$718.18

In stock

92049

SEAL-OIL

92049-0849

1

$9.02

In stock

92055

RING-O,19.8X2.2

92055-0732

1

$1.10

In stock

92139

BUSHING,20X23X29

92139-0890

1

$7.27

In stock

92139A

BUSHING,20X23X24

92139-0940

1

$3.64

In stock

92154

BOLT,FLANGED,12X55

92154-0362

1

$3.68

In stock

92154A

BOLT,FLANGED,12X52

92154-0942

1

$6.59

In stock

92154B

BOLT,FLANGED,12X80

92154-1308

1

$10.58

In stock

92154C

BOLT,FLANGED,12X105

92154-7156

1

$18.46

In stock

92160

1

$31.51

In stock

92210

NUT,LOCK,12MM

92210-1247

1
Out of stock
