2024 Kawasaki Z e-1 ABS Rear Master Cylinder Diagram

← All diagrams

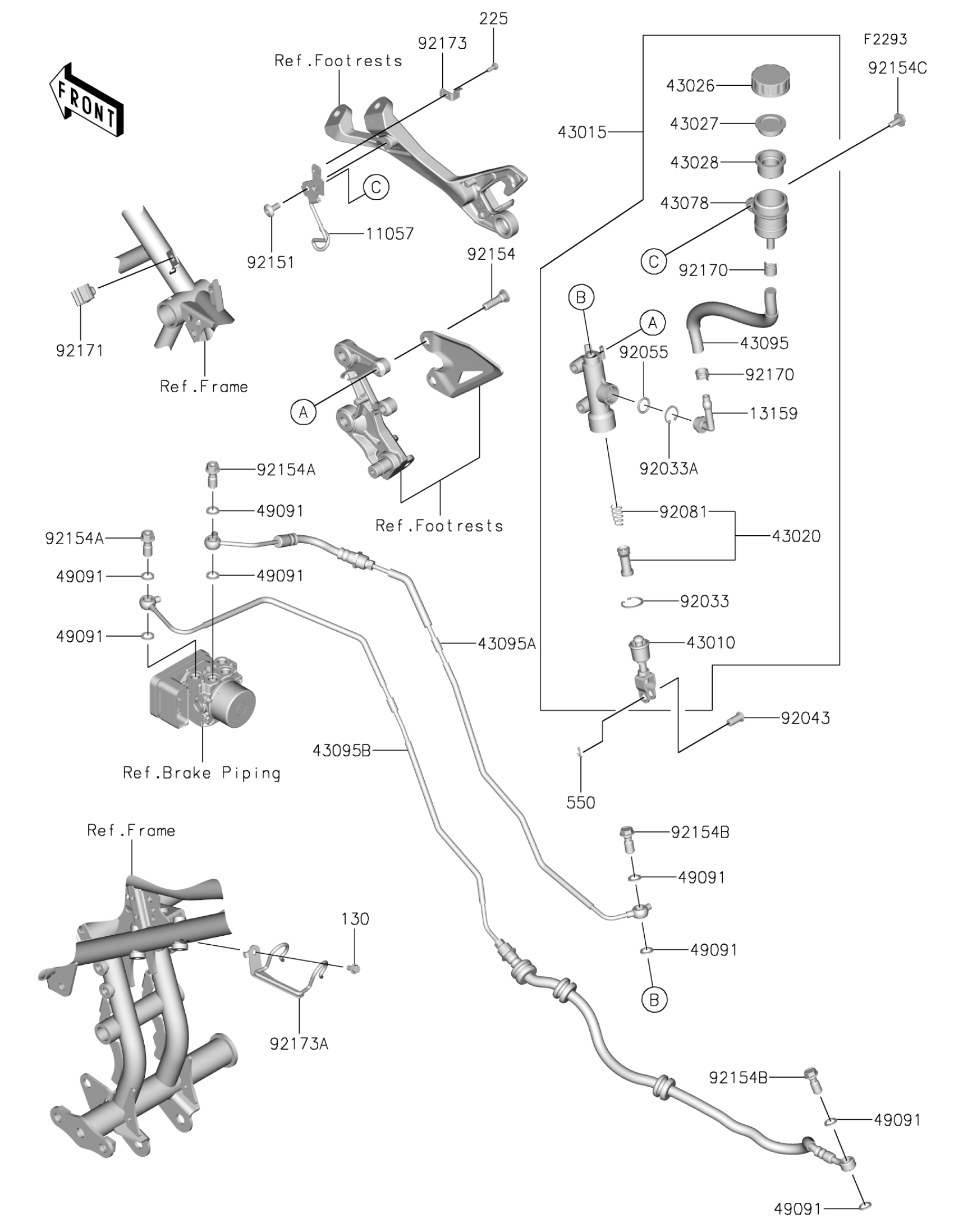

Find the part on the Rear Master Cylinder diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z e-1 ABS Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RR RESERVOIR

11057-1101

1
Out of stock

13159

CONNECTOR

13159-1056

1

$11.16

In stock

43010

ROD-ASSY-BRAKE

43010-0022

1

$72.46

In stock

43015

1

$270.29

In stock

43020

PISTON-COMP-BRAKE

43020-0023

1

$66.46

In stock

43026

CAP-BRAKE

43026-0009

1

$38.22

In stock

43027

PLATE-DIAPHRAGM

43027-1053

1

$4.97

In stock

43028

DIAPHRAGM

43028-1065

1

$17.85

In stock

43078

RESERVOIR

43078-0040

1

$29.54

In stock

43095

1

$13.41

In stock

43095A

1

$209.98

In stock

43095B

1

$219.12

In stock

49091

1

$1.81

In stock

92033

1

$6.19

In stock

92033A

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92043

PIN

92043-0904

1

$3.51

In stock

92055

RING-O,14.8X2.4

92055-0741

1

$2.95

In stock

92081

1

$11.69

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92154

BOLT,SOCKET,8X30

92154-0843

1

$3.74

In stock

92154A

BOLT,BANJO,10X22

92154-1138

1

$5.89

In stock

92154B

BOLT,BANJO,10X23

92154-1712

1

$3.56

In stock

92154C

BOLT,UPSET-WP,6X16

92154-2244

1

$1.10

In stock

92170

CLAMP,HOSE

92170-1091

1

$3.97

In stock

92171

CLAMP

92171-0818

1

$3.93

In stock

92173

1

$4.85

In stock

92173A

CLAMP

92173-2766

1

$9.05

In stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock

225

1

$2.37

In stock

550

PIN-COTTER,2.0X15

550AA2015

1

$0.94

In stock
