2024 Kawasaki Z e-1 ABS Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2024 Kawasaki Z e-1 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

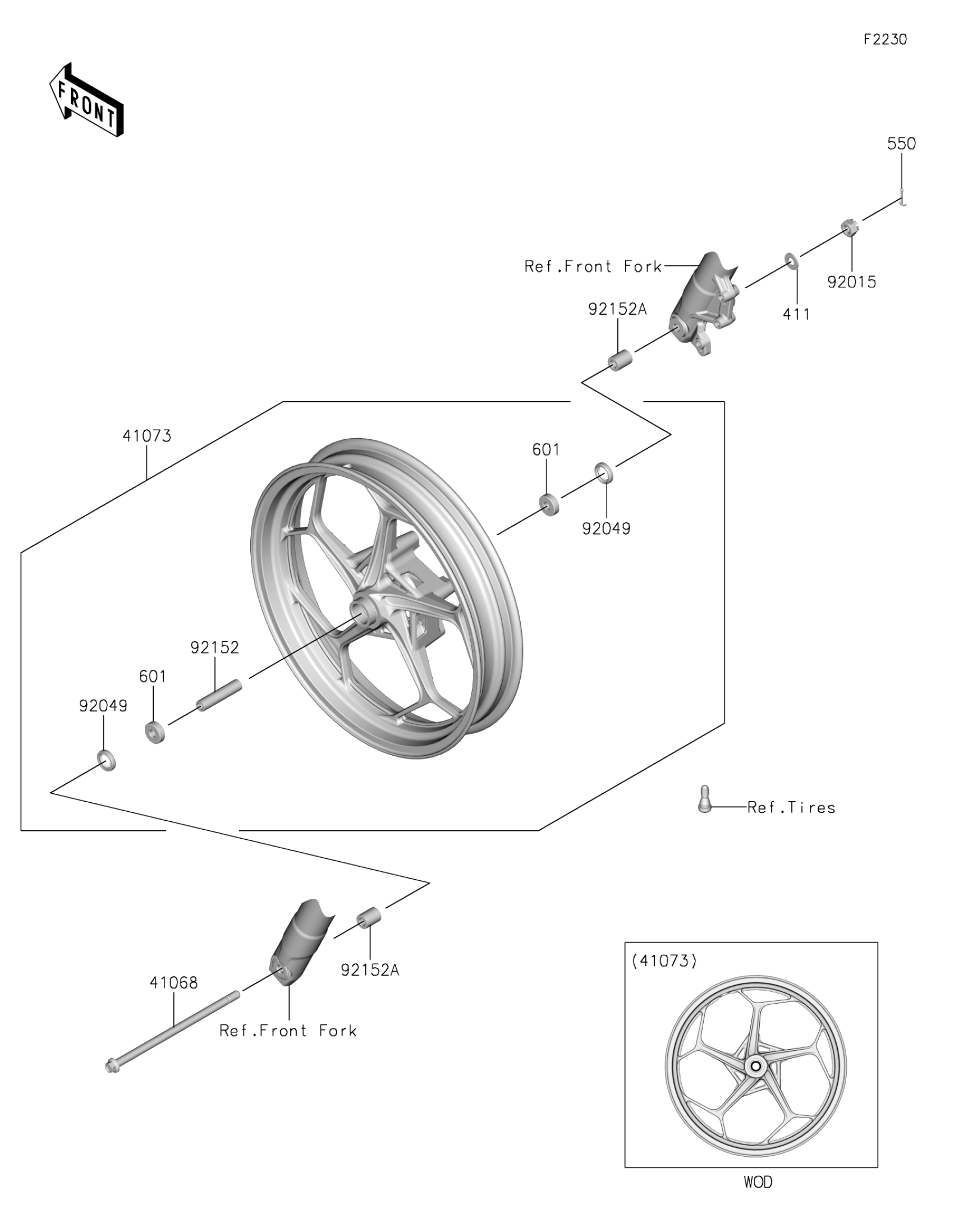

2024 Kawasaki Z e-1 ABS Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR

41068-0667

1

$22.61

In stock

41073

WHEEL-ASSY,FR,G.BLACK

41073-0824-QT

1

$655.67

In stock

92015

NUT,CASTLE,12MM

92015-1870

1

$5.04

In stock

92049

SEAL-OIL

92049-0779

1
Out of stock

92152

COLLAR,12.1X17X76.5

92152-1758

1
Out of stock

92152A

COLLAR,12X22X28.5

92152-2468

1

$11.69

In stock

411

WASHER-PLAIN,12MM

411AA1200

1

$0.93

In stock

550

PIN-COTTER,3.0X30

550AA3030

1

$2.08

In stock

601

1

$18.14

In stock
