2017 Yamaha R3 (YZFR3HL) Windshield Diagram

← All diagrams

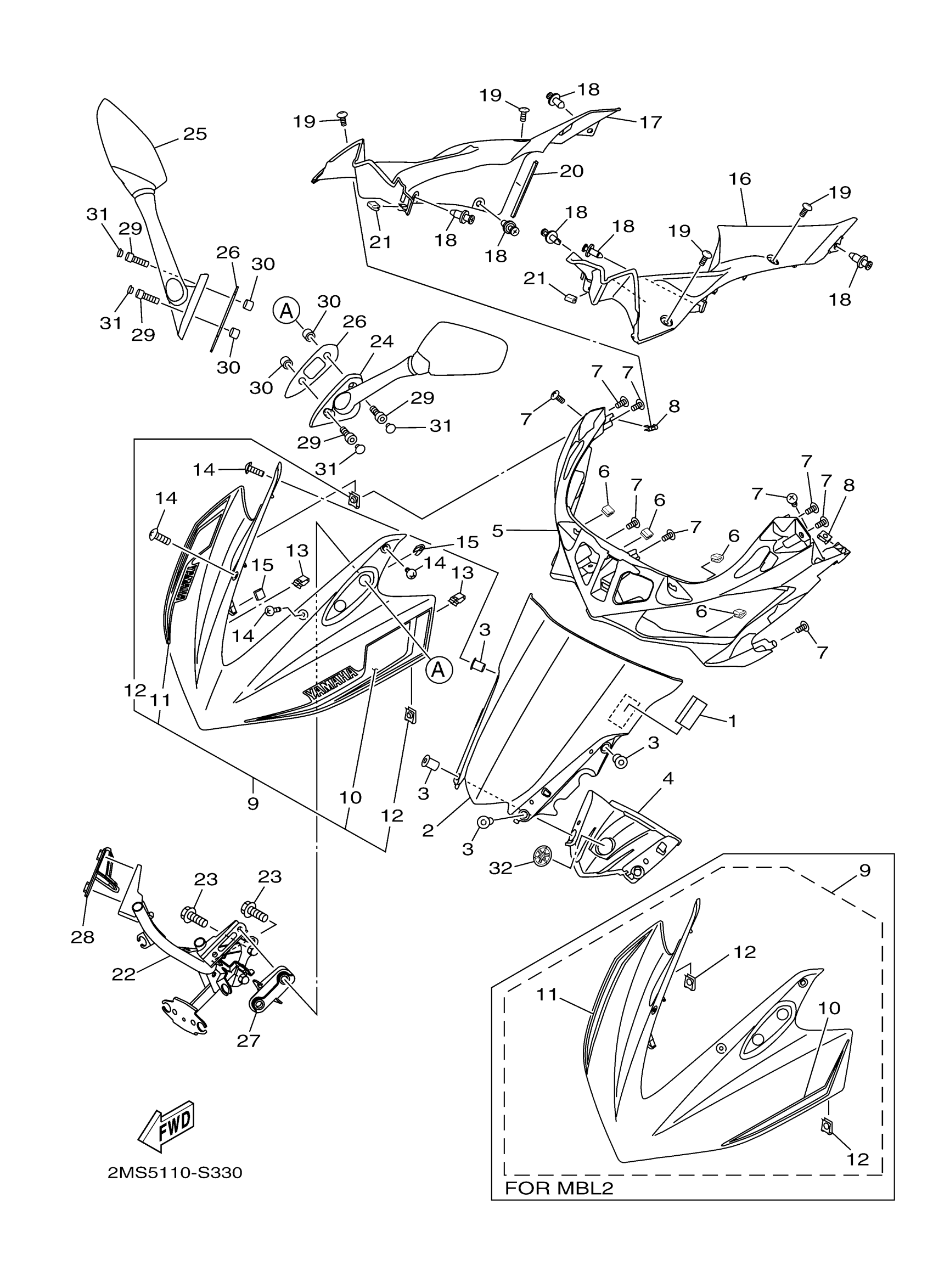

Find the part on the Windshield diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha R3 (YZFR3HL) Windshield Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LABEL, NOTICE WINDSHIELD 1

1WD-F815K-10-00

1

$1.05

In stock

2

WINDSHIELD

1WD-F8381-00-00

1
Out of stock

3

NUT(1KT)

90179-05523-00

1

$4.33

In stock

4

COVER, METER

1WD-H3559-00-00

1
Out of stock

5

BODY, FRONT UPPER 1

1WD-F835G-00-00

1
Out of stock

6

TRIM

1WD-F8376-00-00

1

$2.48

In stock

7

SCREW, TAPPING

97702-50016-00

1

$1.98

In stock

8

NUT, SPRING

90183-050A7-00

1

$2.62

In stock

9

BODY COWLING SUB ASSY

1WD-XF83F-00-P5

1
Out of stock

10

GRAPHIC,1

1WD-F8391-B1-00

1
Out of stock

11

GRAPHIC 2

1WD-F8392-B0-00

1
Out of stock

12

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

13

HOOK

44D-F8379-00-00

1

$5.14

In stock

14

SCREW, ROUND HEAD(1UX)

90150-05023-00

1

$2.78

In stock

15

TRIM

1WD-F8376-00-00

1

$2.48

In stock

16

PANEL, INNER 4

1WD-F836N-00-00

—
Out of stock

17

PANEL, INNER 5

1WD-F836R-00-00

—
Out of stock

18

RIVET

90269-06081-00

—

$5.69

In stock

19

BOLT

90111-05003-00

—

$6.17

In stock

20

MOLD

1WD-F1278-00-00

—
Out of stock

21

TRIM

1WD-F8376-00-00

1

$2.48

In stock

22

STAY 1

1WD-F8356-00-00

—
Out of stock

23

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

24

REAR VIEW MIRROR ASSY (LEFT)

1WD-F6280-10-00

—
Out of stock

25

REAR VIEW MIRROR ASSY (RIGHT)

1WD-F6290-10-00

—
Out of stock

26

PLATE, RUBBER 1

1WD-F8483-00-00

—
Out of stock

27

PLATE, RUBBER 2

1WD-F8484-00-00

—
Out of stock

28

PLATE, RUBBER 3

1WD-F8485-00-00

—
Out of stock

29

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

30

COLLAR

90387-068C2-00

—

$1.46

In stock

31

PLUG

90338-05010-00

—

$6.26

In stock

32

TUNING FORK MARK

1PA-F836B-01-00

—

$28.09

In stock
