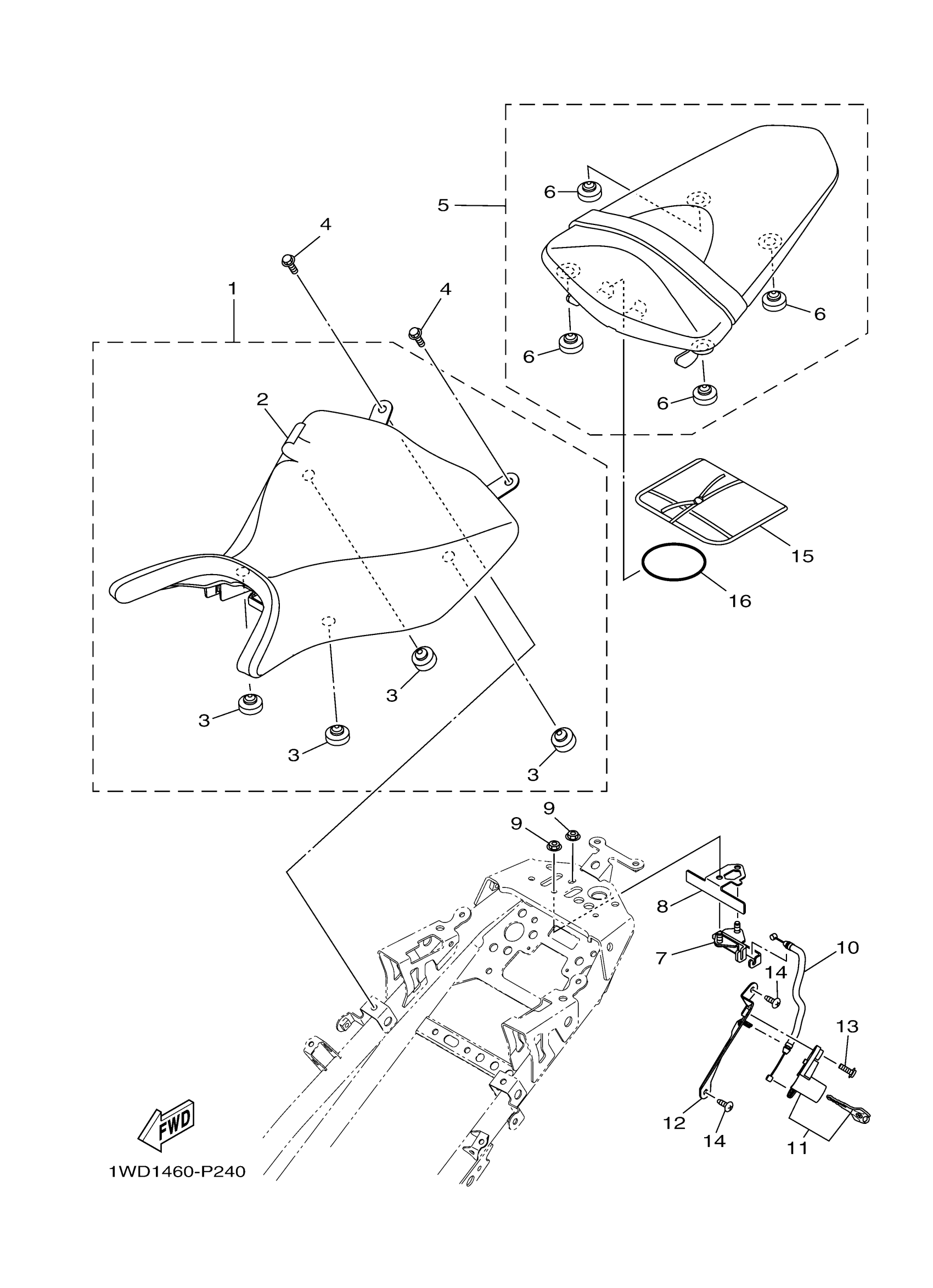

Find the part on the Seat diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha R3 (YZFR3HL) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSY

1WD-F4710-03-00

1

$46.72

In stock

2

COVER, SINGLE SEAT

1WD-F4711-01-00

1

$10.40

In stock

3

PAD, SEAT

5BP-F4741-00-00

1

$2.48

In stock

4

BOLT, FLANGE

95022-06012-00

1

$3.00

In stock

5

TANDEM SEAT ASSY

1WD-F4750-01-00

1

$63.85

In stock

6

PAD, SEAT

3C1-F4741-00-00

—

$1.20

In stock

7

SEAT LOCK ASSY

1WD-F4780-00-00

1

$19.85

In stock

8

PLATE

1WD-F4792-00-00

—

$16.34

In stock

9

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

10

CABLE, SEAT LOCK

1WD-F478E-00-00

1

$6.43

In stock

11

ROTOR SUB ASSY WITH KEY

1WD-WF479-00-00

1

$64.25

In stock

12

STAY, LOCK

1WD-F117K-00-00

1

$4.06

In stock

13

SCREW, WITH WASHER

90159-06054-00

1

$1.08

In stock

14

SCREW, TAPPING

97702-50016-00

1

$1.98

In stock

15

TOOL KIT

1WD-F8100-00-00

1

$30.88

In stock

16

BAND, BATTERY

5VV-H2131-00-00

—

$2.45

In stock
