2017 Yamaha R3 (YZFR3HL) Fender Diagram

← All diagrams

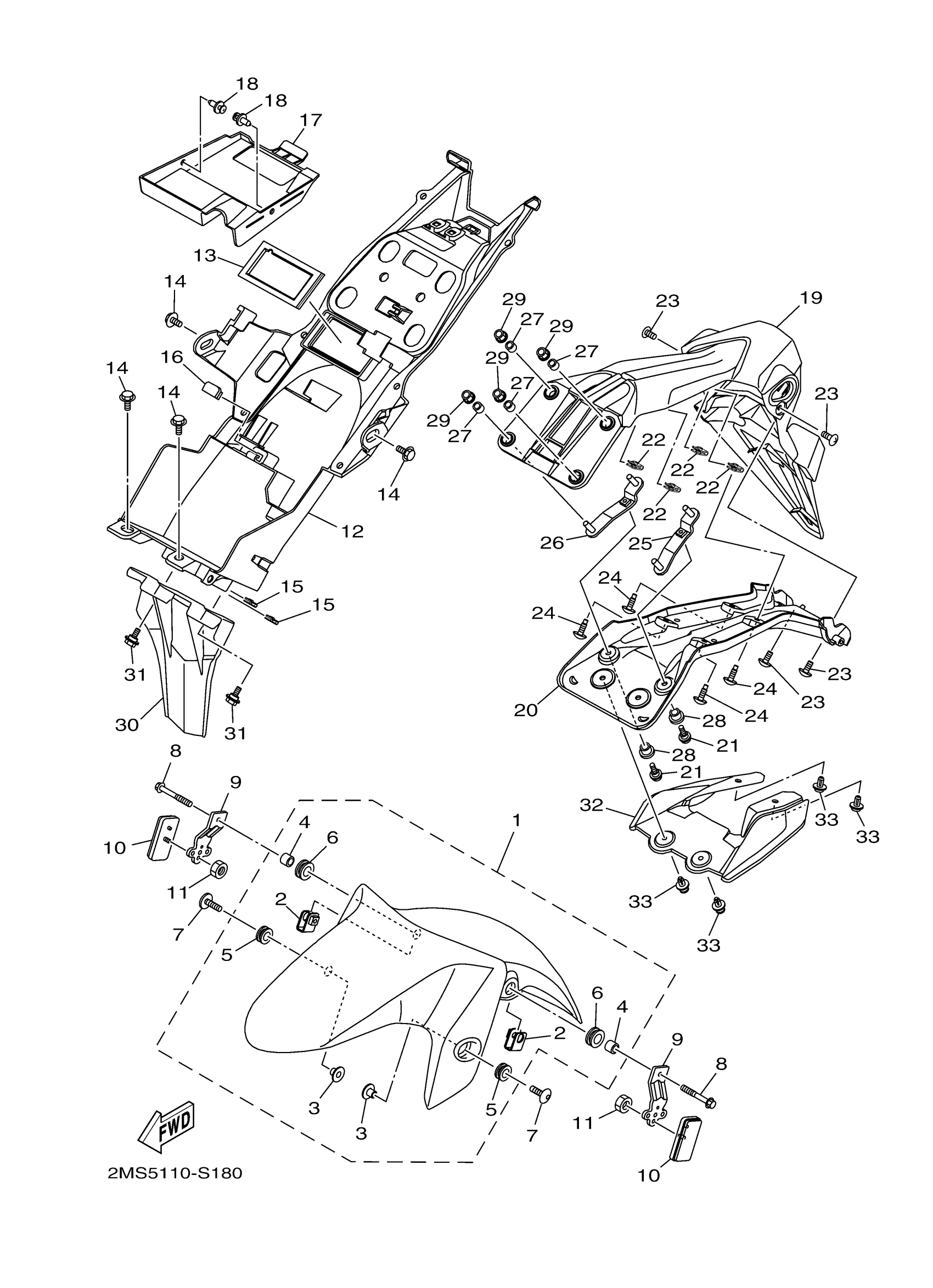

Find the part on the Fender diagram for your 2017 Yamaha R3 (YZFR3HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha R3 (YZFR3HL) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

1WD-XF151-00-P7

—
Out of stock

2

BRACKET

1WD-F1586-00-00

1
Out of stock

3

COLLAR

90387-068C5-00

—
Out of stock

4

COLLAR

90387-068L0-00

1
Out of stock

5

GROMMET (45P1)

90480-12815-00

1
Out of stock

6

GROMMET

90480-15809-00

—
Out of stock

7

BOLT,HEX. SOCKET BUTTON

90111-06137-00

1
Out of stock

8

BOLT, SMALL FLANGE

95027-06045-00

1
Out of stock

9

BRACKET, REFLECTOR 1

1WD-F113J-00-00

1
Out of stock

10

REFLECTOR ASSY

8GM-85110-00-00

1
Out of stock

11

NUT, FLANGE

95702-05500-00

1
Out of stock

12

FENDER, REAR

1WD-F1611-02-00

1
Out of stock

13

SEAL

1WD-F1669-00-00

1
Out of stock

14

BOLT(3KJ)

90109-063F1-00

1
Out of stock

15

NUT, SPRING

90183-050A6-00

1
Out of stock

16

SEAL, 2

1WD-F16A2-00-00

—
Out of stock

17

COVER, REAR FENDER

1WD-F163E-01-00

—
Out of stock

18

RIVET

90269-06081-00

—
Out of stock

19

GUARD, MUD

B1X-F1629-00-00

—
Out of stock

20

BRACKET, FENDER

1WD-F1617-01-00

—
Out of stock

21

BOLT,HEX. SOCKET BUTTON

90111-05021-00

—
Out of stock

22

NUT, SPRING

90183-050A7-00

—
Out of stock

23

SCREW, TAPPING(4MV)

97707-50016-00

—
Out of stock

24

BOLT

90111-05018-00

—
Out of stock

25

BRACKET, REAR STAY

1WD-F1688-00-00

—
Out of stock

26

BRACKET, REAR STAY 2

1WD-F1689-00-00

—
Out of stock

27

COLLAR (8H6)

90387-07573-00

—
Out of stock

28

COLLAR

90387-068L9-00

—
Out of stock

29

NUT, U FLANGE

95604-06200-00

—
Out of stock

30

FLAP

1WD-F1621-01-00

—
Out of stock

31

BOLT

90109-05003-00

—
Out of stock

32

COVER, REAR FENDER 1

1WD-F163A-00-00

—
Out of stock

33

RIVET

90269-06081-00

—
Out of stock
