1995 Yamaha YZF600R (YZF600RG) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

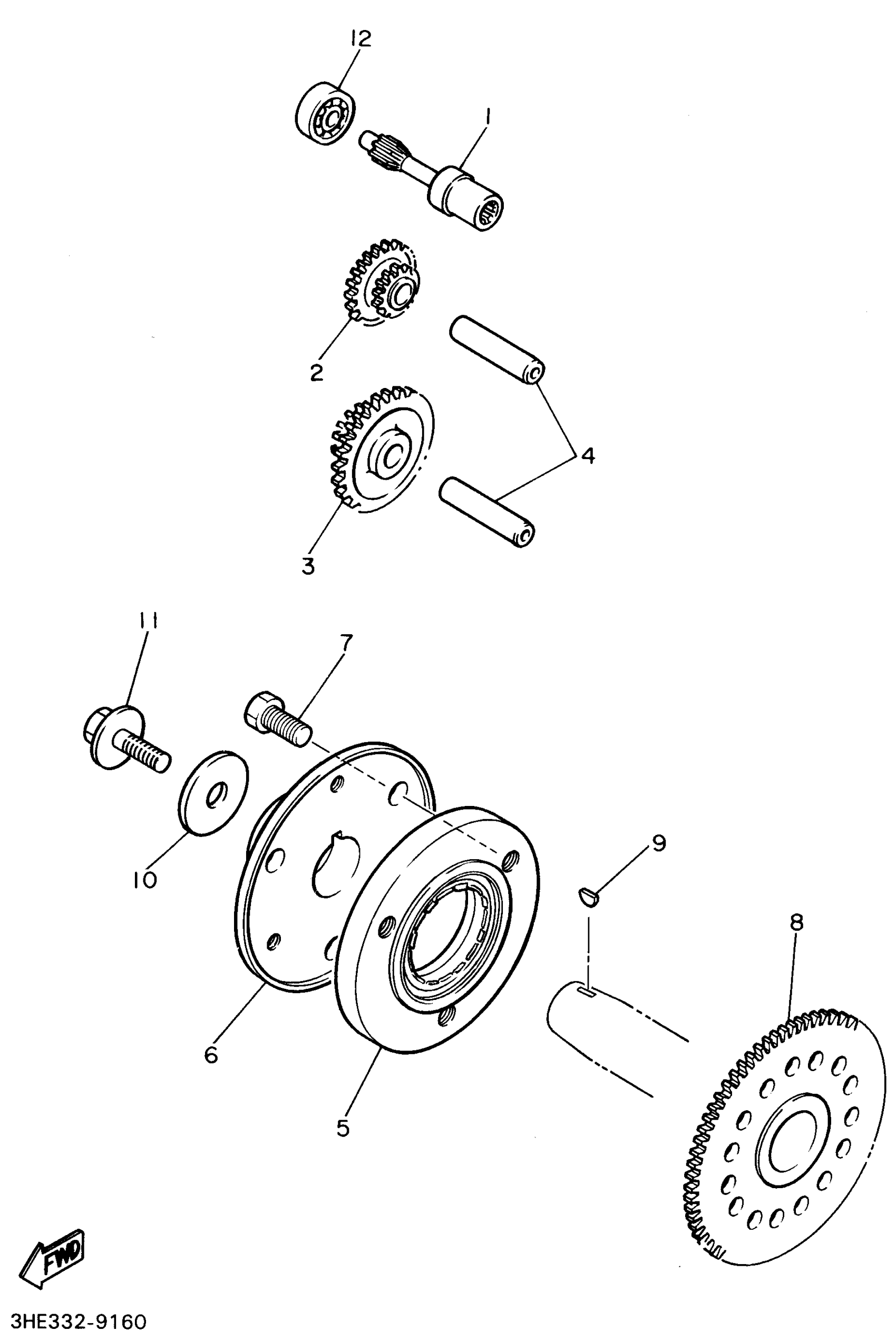

1995 Yamaha YZF600R (YZF600RG) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT 1

5RT-15521-00-00

—
Out of stock

2

GEAR, IDLER 1

3HE-15512-00-00

1
Out of stock

3

GEAR, IDLER 2

3HE-15517-00-00

—
Out of stock

4

SHAFT 1

3TJ-15521-00-00

—
Out of stock

5

STARTER ONE-WAY ASSY

3HE-15590-02-00

1
Out of stock

6

WHEEL, STARTER

3HE-15524-00-00

—
Out of stock

7

BOLT, SOCKET

91317-08020-00

1

$2.34

In stock

8

GEAR 3

4JH-15515-00-00

—
Out of stock

9

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

10

WASHER, PLATE(1WG)

90201-107K6-00

—

$8.82

In stock

11

BOLT, WASHER BASED(1TX)

90105-10445-00

1

$9.68

In stock

12

BEARING (3R0)

93306-20009-00

1

$38.79

In stock
