1995 Yamaha YZF600R (YZF600RG) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

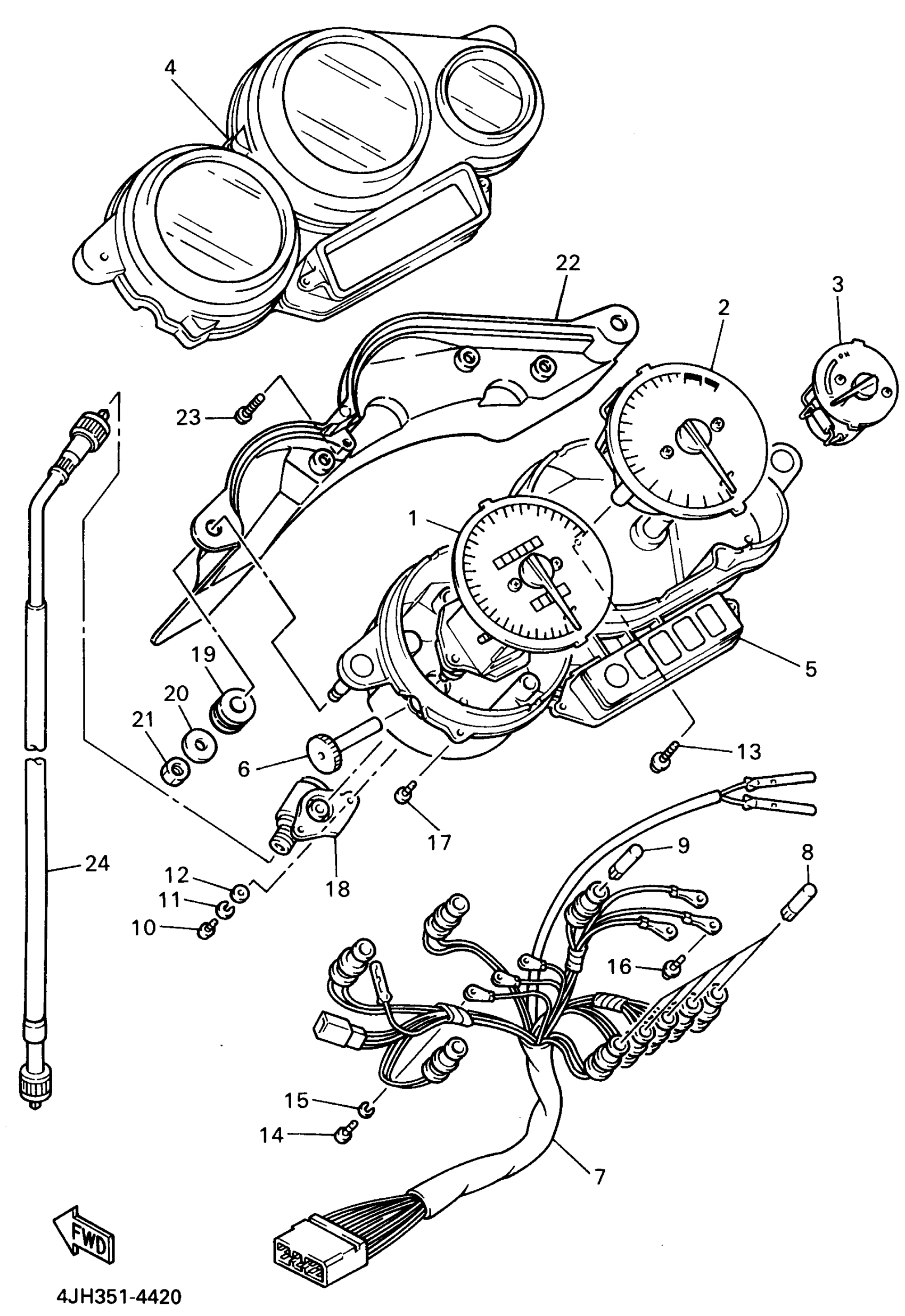

1995 Yamaha YZF600R (YZF600RG) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

4FM-83570-10-00

1
Out of stock

2

TACHOMETER ASSEMBLY

4FM-83540-00-00

1
Out of stock

3

WATER TEMPERATURE ASSEMBLY

4FM-83590-00-00

1
Out of stock

4

COVER, METER

4FM-83559-00-00

1
Out of stock

5

CASE, INNER

4FM-8353H-60-00

1
Out of stock

6

KNOB, TRIP METER

2GH-83578-00-00

1
Out of stock

7

SOCKET CORD ASSEMBLY

4FM-83509-00-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

BULB (12V-1.7W)

3FV-83517-00-00

1

$6.30

In stock

10

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

11

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

12

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

13

. SCREW, WITH WASHER

97902-04122-00

1

$6.46

In stock

14

SCREW PAN HEAD

98580-03010-00

1

$6.68

In stock

15

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

16

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

17

SCREW, TAPPING(71E)

90164-04023-00

—
Out of stock

18

SOCKET CORD ASSY

4FM-83520-00-00

—
Out of stock

19

GROMMET(3GM)

90480-14585-00

—
Out of stock

20

WASHER, PLATE 8221447500

90201-06057-00

—
Out of stock

21

NUT(6TA)

95317-06600-00

—

$2.69

In stock

22

COVER, METER

3GM-87278-A0-00

1
Out of stock

23

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

24

SPEEDOMETER CABLE ASSY

4VR-83550-01-00

—

$31.61

In stock
