1995 Yamaha YZF600R (YZF600RG) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

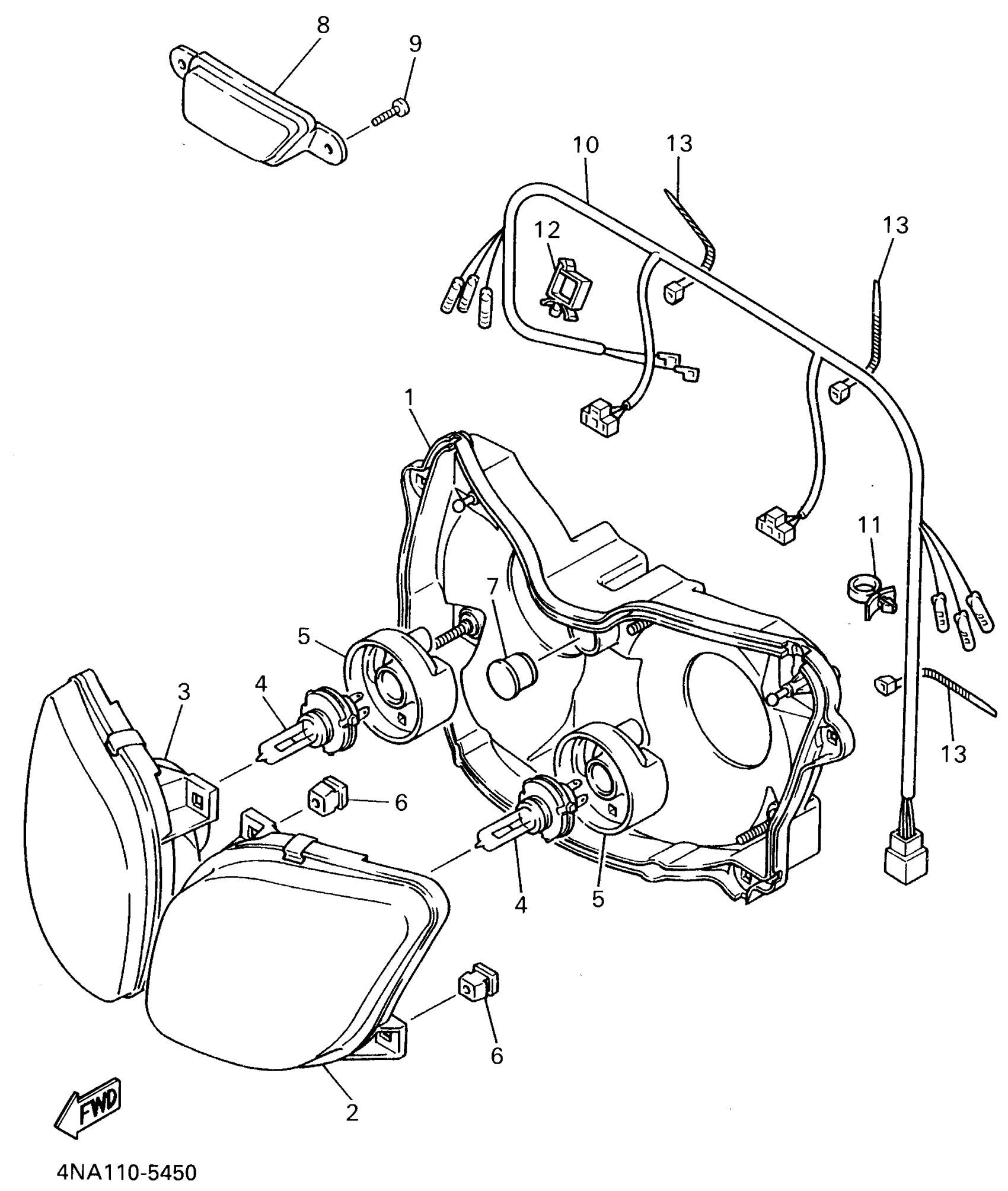

1995 Yamaha YZF600R (YZF600RG) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

4FM-84330-41-00

1
Out of stock

2

LENS ASSEMBLY

4FM-84320-40-00

1
Out of stock

3

LENS ASSEMBLY

4FM-8432A-40-00

1
Out of stock

4

BULB, HEADLIGHT

1ML-84314-00-XX

1
Out of stock

5

COVER, SOCKET

4JG-84397-00-00

—

$12.89

In stock

6

. NUT, ADJUSTING

51L-84334-00-00

1
Out of stock

7

PLUG (4U5)

90338-24112-00

1

$4.25

In stock

8

CAP

3LK-84378-00-P4

1
Out of stock

9

SCREW, TRUSS TAP.

97707-50012-00

1

$3.15

In stock

10

CORD, HEADLIGHT

4NA-84359-00-00

1
Out of stock

11

CLAMP(3SK)

90464-13133-00

1

$6.17

In stock

12

CLAMP (1J7)

90464-16021-00

1

$10.86

In stock

13

CLAMP(4FM)

90464-15195-00

1

$2.77

In stock
