1995 Yamaha YZF600R (YZF600RG) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

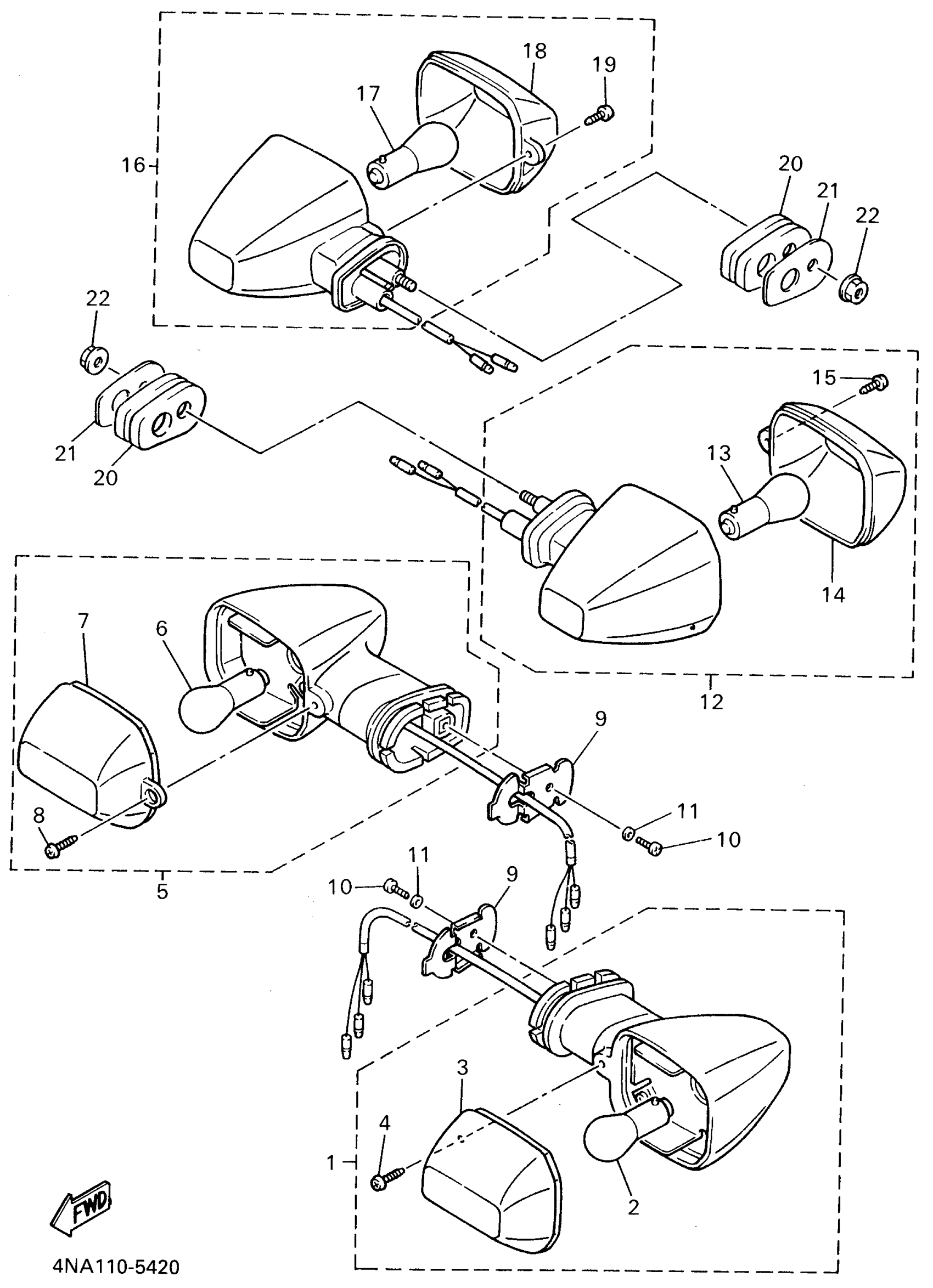

1995 Yamaha YZF600R (YZF600RG) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FLASHER LIGHT ASSY 1

4JH-83310-11-00

1
Out of stock

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

3

LENS, FLASHER

4JH-83332-10-00

1
Out of stock

4

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

5

FRONT FLASHER LIGHT ASSY 2

4JH-83320-11-00

—
Out of stock

6

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

1
Out of stock

7

LENS, FLASHER 2

4JH-83342-10-00

1
Out of stock

8

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

9

STAY, FLASHER 1

4JH-83318-00-00

1
Out of stock

10

SCREW, PAN HEAD(JG1)

98507-04008-00

1
Out of stock

11

WASHER(JF2)

92907-04600-00

1
Out of stock

12

REAR FLASHER LIGHT ASSY 1

4JH-83330-20-00

—
Out of stock

13

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

14

LENS, FLASHER

4JH-83332-10-00

1
Out of stock

15

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

16

FLASHER LIGHT ASSY 2

4JH-83340-20-00

—
Out of stock

17

. BULB (12V-32CP)

256-83311-70-XX

1
Out of stock

18

LENS, FLASHER 2

4JH-83342-10-00

1
Out of stock

19

SCREW, PAN TAP.2 SLIT

97707-40610-00

1
Out of stock

20

PLUG, BLIND

4FM-83345-00-00

—
Out of stock

21

STAY, FLASHER 2

4FM-83369-00-00

—
Out of stock

22

NUT, FLANGE(7NB)

95780-06500-00

—
Out of stock
