1995 Yamaha YZF600R (YZF600RG) Electrical 2 Diagram

← All diagrams

Find the part on the Electrical 2 diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

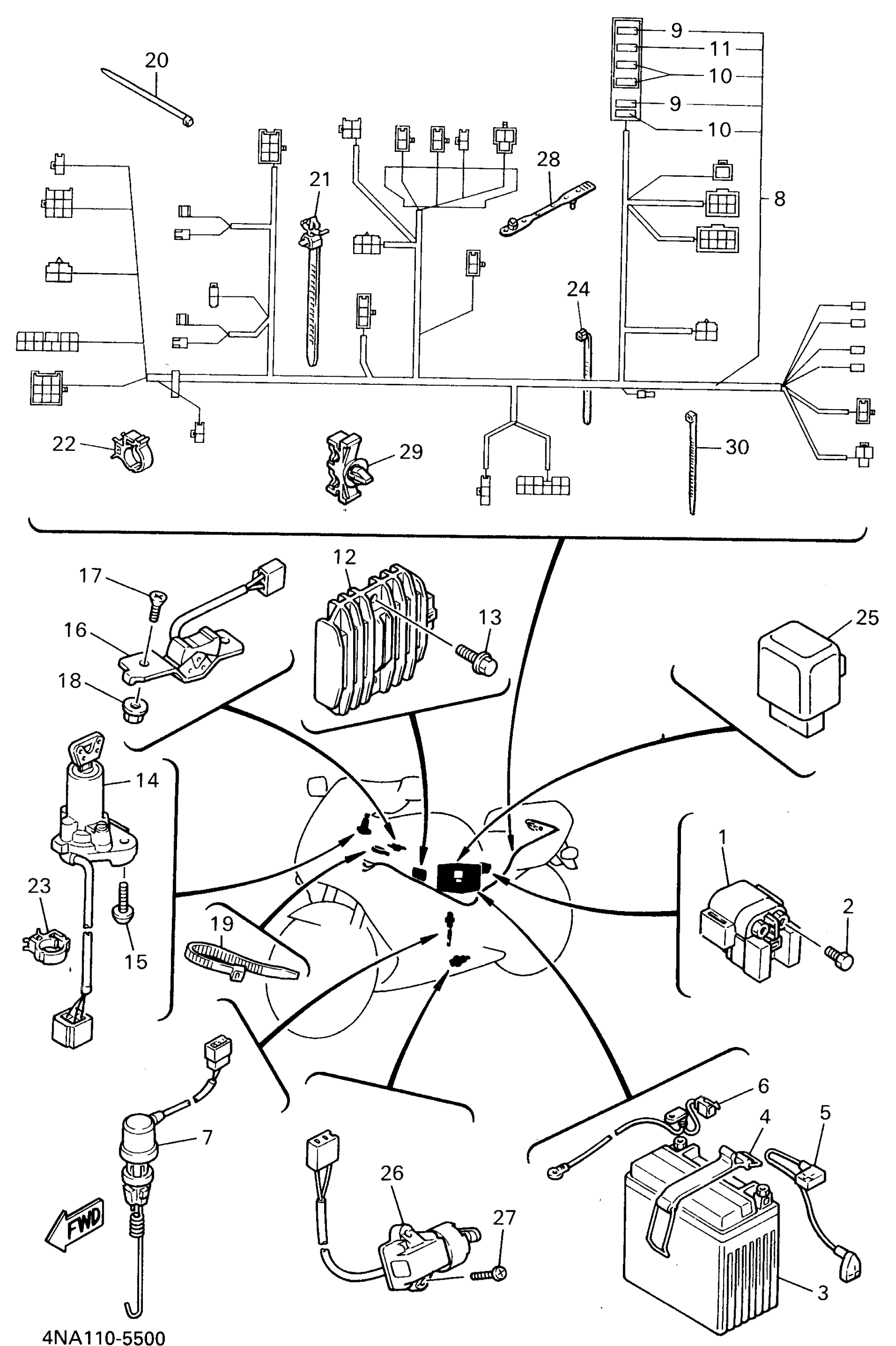

1995 Yamaha YZF600R (YZF600RG) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$128.29

In stock

2

BOLT, FLANGE(3BM)

95024-06008-00

1
Out of stock

3

YTX12BS YUASA BATTERY - SA

YTX-12BS0-00-00

1
Out of stock

4

BAND, BATTERY

4BP-82131-00-00

—
Out of stock

5

WIRE,PLUS LEAD

4NX-82115-00-00

1
Out of stock

6

WIRE, MINUS LEAD

4JH-82116-00-00

—
Out of stock

7

STOP SWITCH ASSY

1KT-82530-03-00

1
Out of stock

8

WIRE HARNESS

4NA-82590-02-00

1
Out of stock

9

FUSE (20A)

2GV-82151-00-00

1
Out of stock

10

FUSE

2KW-82151-00-00

1
Out of stock

11

FUSE (12V 15A)

36Y-82151-00-00

1

$4.08

In stock

12

RECTIFIER & REGULATOR ASSY

4JH-81960-01-00

1
Out of stock

13

BOLT, FLANGE

95817-06020-00

1

$2.69

In stock

14

MAIN SWITCH STEERING LOCK

4NA-82501-02-00

—
Out of stock

15

BOLT

90109-08196-00

1

$6.18

In stock

16

SWITCH

3TJ-83964-10-00

1
Out of stock

17

. SCREW, FLAT HEAD

98780-05016-00

1
Out of stock

18

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

19

BAND

1UA-82591-00-00

—
Out of stock

20

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

21

CLAMP(2TV)

90464-10112-00

—

$6.18

In stock

22

CLAMP(4GY)

90464-10190-00

—

$7.26

In stock

23

CLAMP(4HM)

90464-15192-00

—

$6.17

In stock

24

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock

25

RELAY ASSY

3EN-81950-02-00

—
Out of stock

26

SWITCH, SIDE STAND

3LD-82566-51-00

—
Out of stock

27

SCREW, PAN HEAD

98507-05014-00

—

$6.18

In stock

28

CLAMP

90464-07121-00

1
Out of stock

29

CLAMP(4JH)

90464-08211-00

—
Out of stock

30

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock
