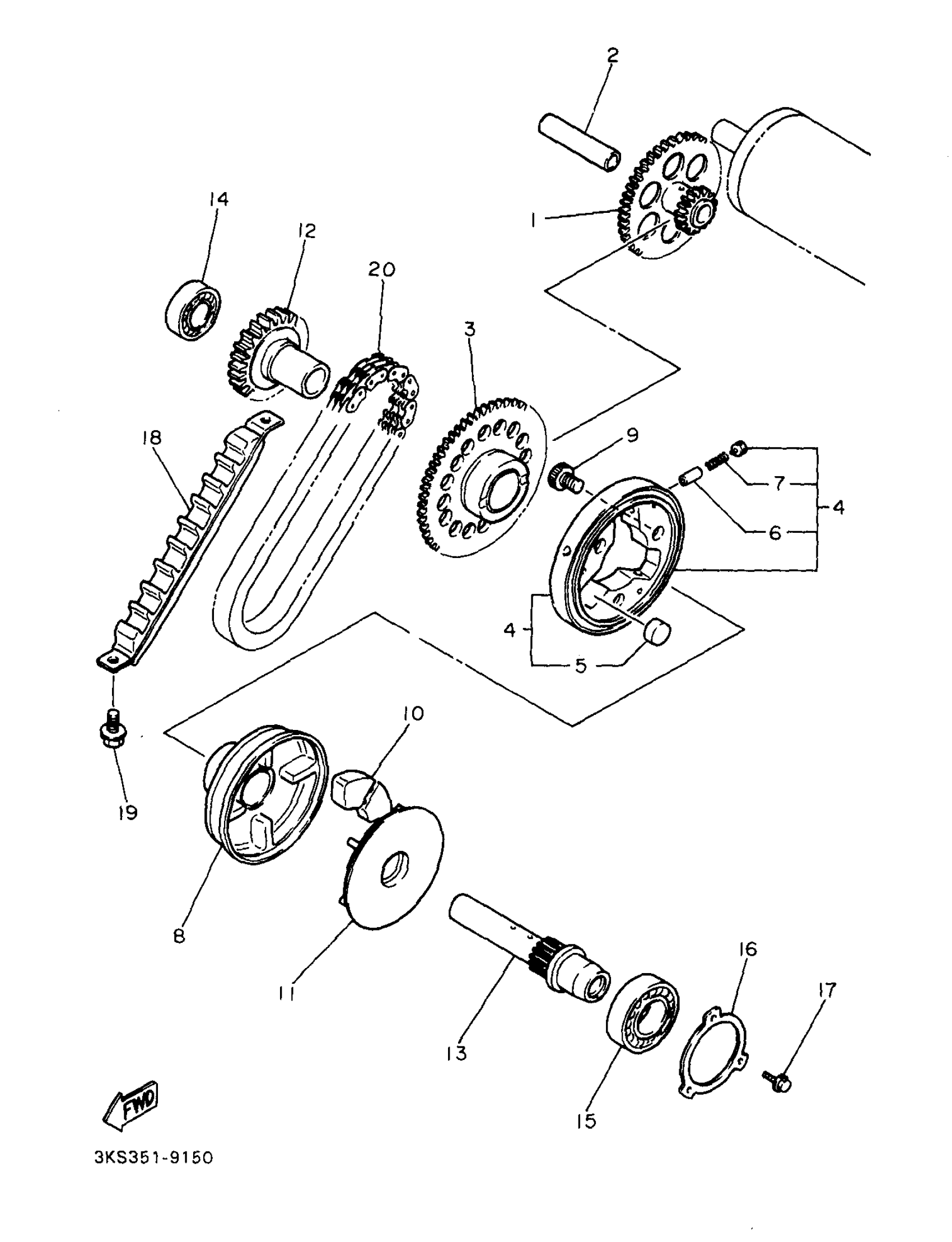

Find the part on the Starter diagram for your 1997 Yamaha YZF1000R CA (YZF1000RJC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha YZF1000R CA (YZF1000RJC) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR,IDLER 1

3GM-15512-01-00

1
Out of stock

2

SHAFT 1

51Y-15521-00-00

1
Out of stock

3

GEAR, IDLER 2

4BH-15517-00-00

1
Out of stock

4

. STARTER CLUTCH OUTER ASSEMBLY

3GM-15580-00-00

1
Out of stock

5

PIN,DOWEL(341)

93615-12088-00

1
Out of stock

6

CAP, STARTER CLUTCH

1J7-15583-01-00

1
Out of stock

7

SPRING, COMPRESSION (4G0)

90501-04623-00

1
Out of stock

8

WHEEL, STARTER

3GM-15524-00-00

1
Out of stock

9

BOLT, HEXAGON SOCKET HEAD(3KS)

90110-08177-00

1
Out of stock

10

ABSORBER 1

4H7-16155-01-00

1
Out of stock

11

RETAINER

3GM-15689-00-00

1
Out of stock

12

SPROCKET, STARTER 2

3GM-15519-00-00

1
Out of stock

13

SHAFT 2

3GM-15522-00-00

1
Out of stock

14

BEARING (7X9)

93306-20327-00

1
Out of stock

15

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

1
Out of stock

16

PLATE, BEARING COVER

1AE-15381-00-00

1
Out of stock

17

BOLT, WASHER BASED(JA9)

90105-06696-00

—
Out of stock

18

GUIDE, UPPER

4SV-11474-01-00

1
Out of stock

19

BOLT, FLANGE

95817-06014-00

—
Out of stock

20

CHAIN, PRIMARY

4SV-11456-00-00

1
Out of stock
