1997 Yamaha YZF1000R CA (YZF1000RJC) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1997 Yamaha YZF1000R CA (YZF1000RJC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

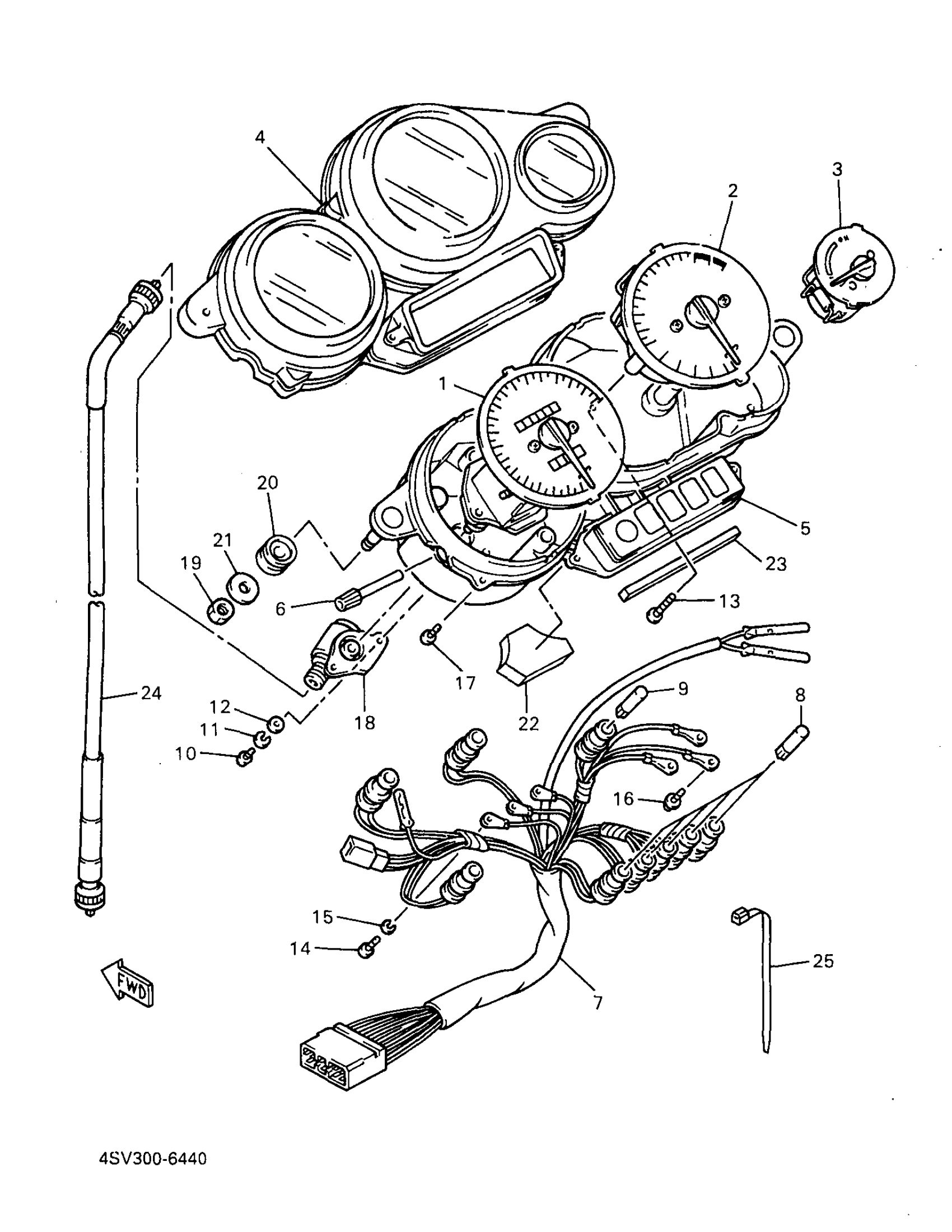

1997 Yamaha YZF1000R CA (YZF1000RJC) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

4SV-83570-30-00

1
Out of stock

2

TACHOMETER ASSEMBLY

4SV-83540-00-00

1
Out of stock

3

WATER TEMPERATURE ASSY

4SV-83590-00-00

1
Out of stock

4

COVER, METER

4FM-83559-00-00

1
Out of stock

5

CASE, UNDER

4FM-8353H-40-00

1
Out of stock

6

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

7

SOCKET CORD ASSEMBLY

4FM-83509-80-00

1
Out of stock

8

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

9

BULB (12V-1.7W)

3FV-83517-00-00

1

$6.30

In stock

10

SCREW, PAN HEAD(6G8)

98507-04010-00

1

$3.26

In stock

11

WASHER(6TA)

92907-04100-00

1

$5.98

In stock

12

WASHER(JF2)

92907-04600-00

1

$1.23

In stock

13

BOLT

4NX-83546-00-00

1
Out of stock

14

SCREW, PAN HEAD(3HH)

98507-03010-00

1
Out of stock

15

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

16

SCREW, WITH WASHER(36Y)

90159-03102-00

—
Out of stock

17

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

18

SOCKET CORD ASSY

4FM-83520-00-00

—
Out of stock

19

NUT(6TA)

95317-06600-00

—

$2.69

In stock

20

DAMPER

4SV-83513-00-00

1
Out of stock

21

WASHER, PLATE

90201-06020-00

—

$6.28

In stock

22

DAMPER

4SV-83523-00-00

1
Out of stock

23

DAMPER 2

4SV-83526-00-00

1
Out of stock

24

SPEEDOMETER CABLE ASSY

4FM-83550-02-00

—

$25.32

In stock

25

CLAMP(4FM)

90464-15195-00

—

$2.77

In stock
