1997 Yamaha YZF1000R CA (YZF1000RJC) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1997 Yamaha YZF1000R CA (YZF1000RJC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

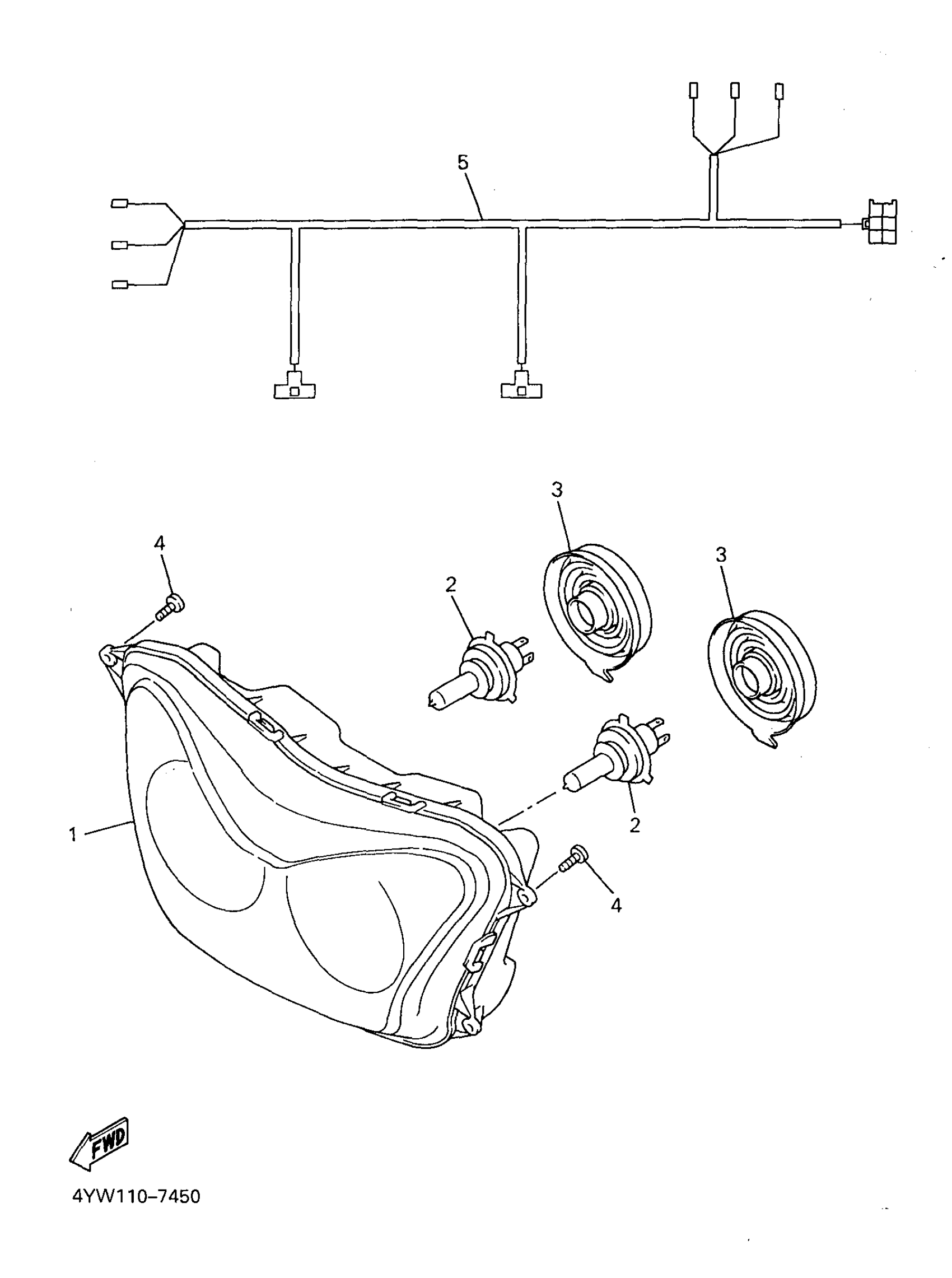

1997 Yamaha YZF1000R CA (YZF1000RJC) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSEMBLY

4SV-84310-20-00

1
Out of stock

2

BULB, HEADLIGHT

4SV-84314-10-00

1
Out of stock

3

COVER, SOCKET

4KM-84397-00-00

—
Out of stock

4

SCREW, TRUSS TAP.

97707-60014-00

1
Out of stock

5

CORD, HEADLIGHT

4WN-84359-00-00

1
Out of stock
