1997 Yamaha YZF1000R CA (YZF1000RJC) Electrical 2 Diagram

← All diagrams

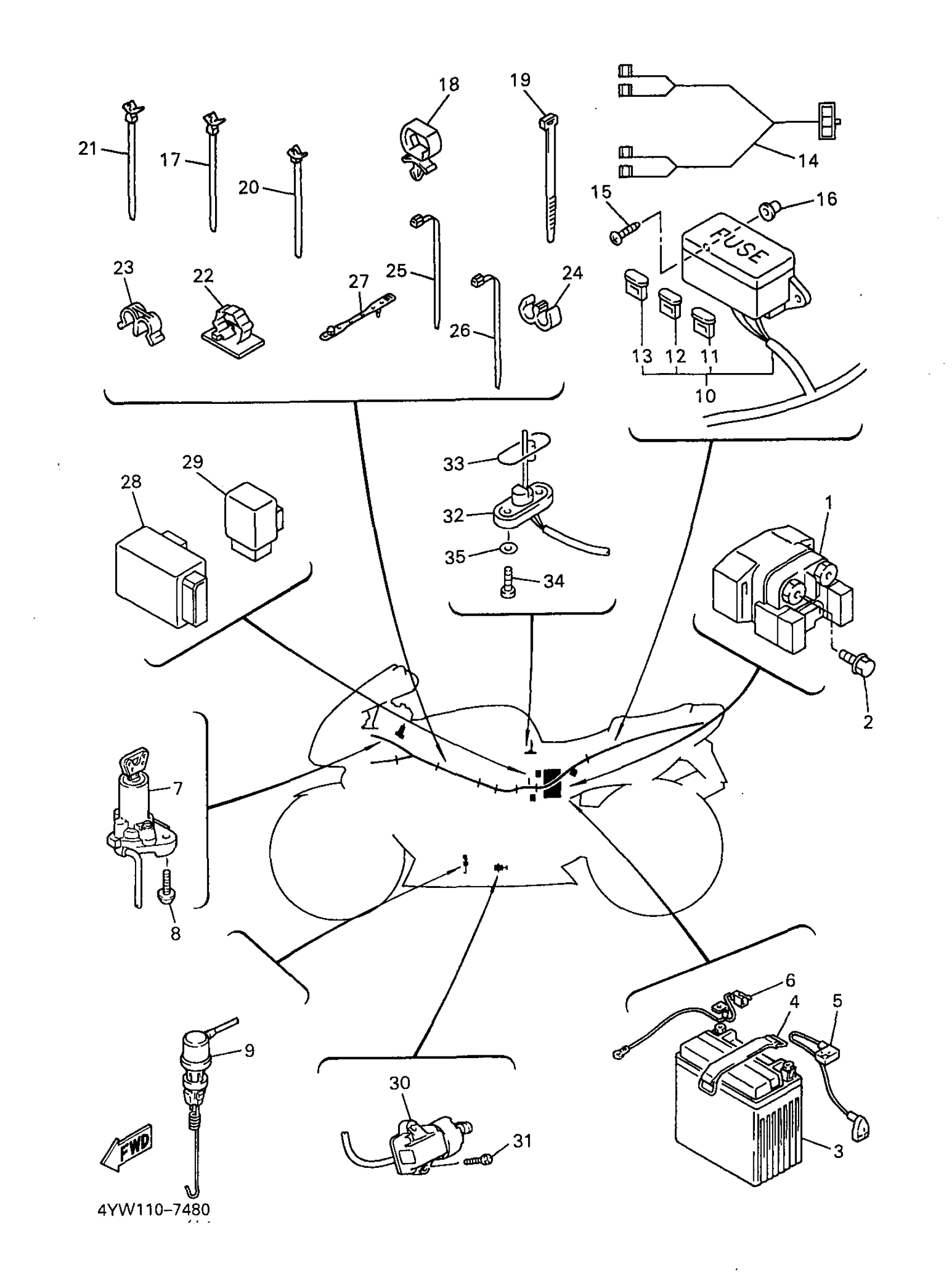

Find the part on the Electrical 2 diagram for your 1997 Yamaha YZF1000R CA (YZF1000RJC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha YZF1000R CA (YZF1000RJC) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

1
Out of stock

2

BOLT, SMALL FLANGE

95027-06008-00

1
Out of stock

3

YTX14BS YUASA BATTERY - SA

YTX-14BS0-00-00

1
Out of stock

4

BAND,BATTERY

7H3-82131-00-00

1
Out of stock

5

WIRE, PLUS LEAD

4NK-82115-00-00

1
Out of stock

6

WIRE, MINUS LEAD

4JH-82116-00-00

—
Out of stock

7

MAIN SWITCH STEERING LOCK

4NA-82501-02-00

—
Out of stock

8

BOLT

90109-08196-00

1
Out of stock

9

STOP SWITCH ASSY

1KT-82530-03-00

1
Out of stock

10

WIRE HARNESS ASSEMBLY

4WN-82590-00-00

1
Out of stock

11

FUSE (20A)

2GV-82151-00-00

1
Out of stock

12

FUSE

2KW-82151-00-00

1
Out of stock

13

FUSE (12V 15A)

36Y-82151-00-00

1
Out of stock

14

WIRE, SUB LEAD

4SV-82509-00-00

1
Out of stock

15

SCREW, TRUSS TAP.

97707-60016-00

1
Out of stock

16

PLUG(4BP)

90338-08226-00

—
Out of stock

17

CLAMP(2TV)

90464-10112-00

—
Out of stock

18

CLAMP(4SV)

90464-20237-00

—
Out of stock

19

BAND

1UA-82591-00-00

—
Out of stock

20

CLAMP(2TV)

90464-10112-00

—
Out of stock

21

CLAMP(2TV)

90464-10112-00

—
Out of stock

22

CLAMP

90464-20021-00

—
Out of stock

23

CLIP(33M)

90468-15139-00

—
Out of stock

24

CLAMP(56R)

90464-60067-00

—
Out of stock

25

CLAMP(4FM)

90464-15195-00

—
Out of stock

26

CLAMP(4FM)

90464-15195-00

—
Out of stock

27

CLAMP

90464-07121-00

1
Out of stock

28

RELAY ASSEMBLY

4SV-81950-00-00

1
Out of stock

29

RELAY ASSEMBLY (3GM-00)

3GM-81950-00-00

1
Out of stock

30

SWITCH, SIDE STAND

3LD-82566-B1-00

—
Out of stock

31

SCREW, PAN HEAD

98507-05014-00

—
Out of stock

32

SENDER UNIT ASSY, FUEL METER

3GM-85752-03-00

—
Out of stock

33

GASKET, SENDER UNIT

42X-85753-00-00

—
Out of stock

34

SCREW 366241430000

90149-06008-00

—
Out of stock

35

WASHER, PLATE(3MB)

90202-05187-00

—
Out of stock
