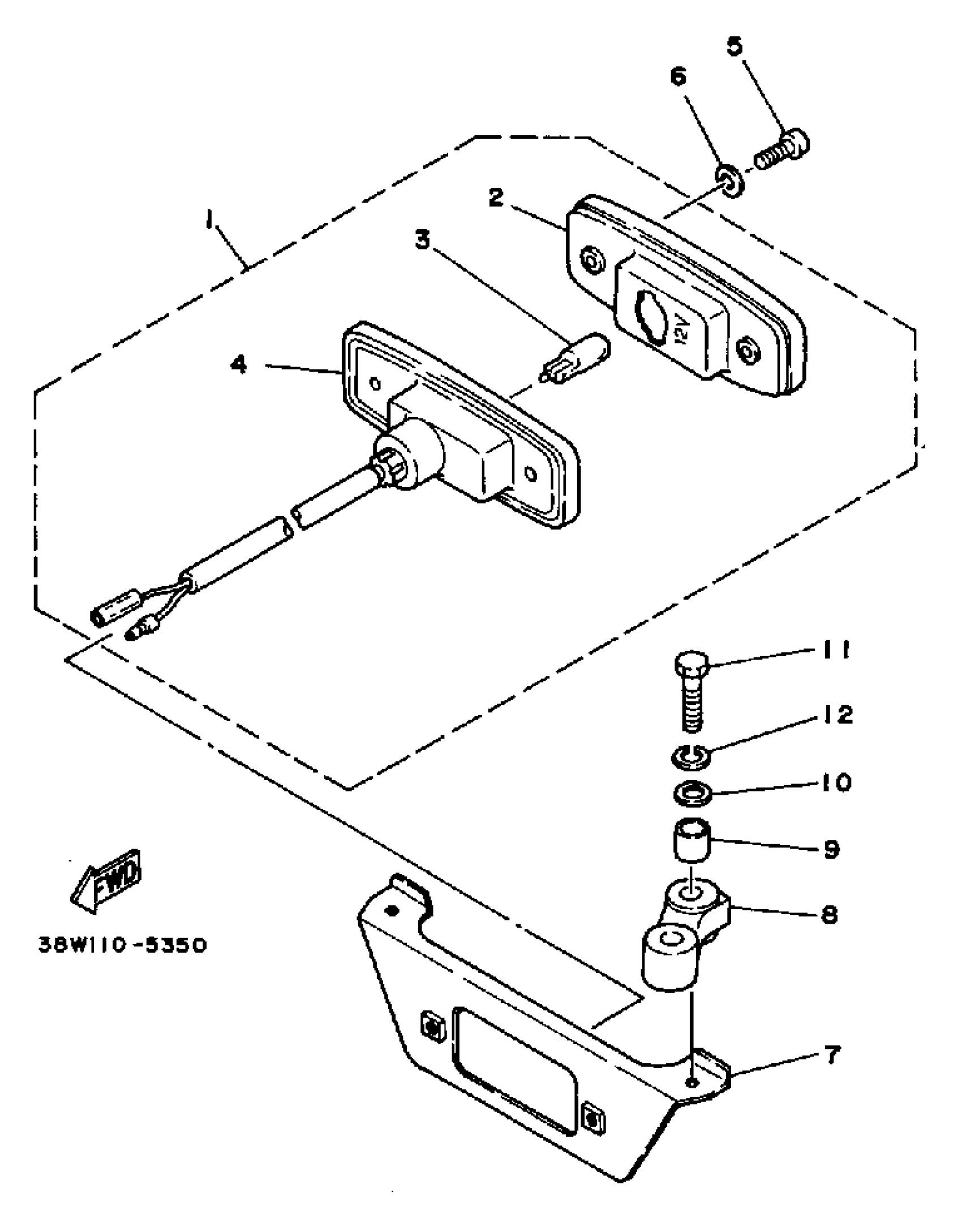

Find the part on the Taillight diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTZ250S Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. TAILLIGHT UNIT ASSY

38W-84710-00-00

1
Out of stock

2

. LENS, TAILLIGHT

38W-84721-00-00

1
Out of stock

3

. BULB, METER 12V 38W

3F9-84744-00-XX

1
Out of stock

4

. TAILLIGHT UNIT ASSY

38W-84710-00-00

1
Out of stock

5

SCREW, PAN HEAD

98517-04020-00

1

$6.18

In stock

6

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

7

BRACKET, TAILLIGHT

38W-84702-01-00

1
Out of stock

8

DAMPER, TAIL 1

38W-84736-00-00

1

$5.35

In stock

9

COLLAR (1M1)

90387-06553-00

1
Out of stock

10

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

11

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock
