1986 Yamaha YTZ250S Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

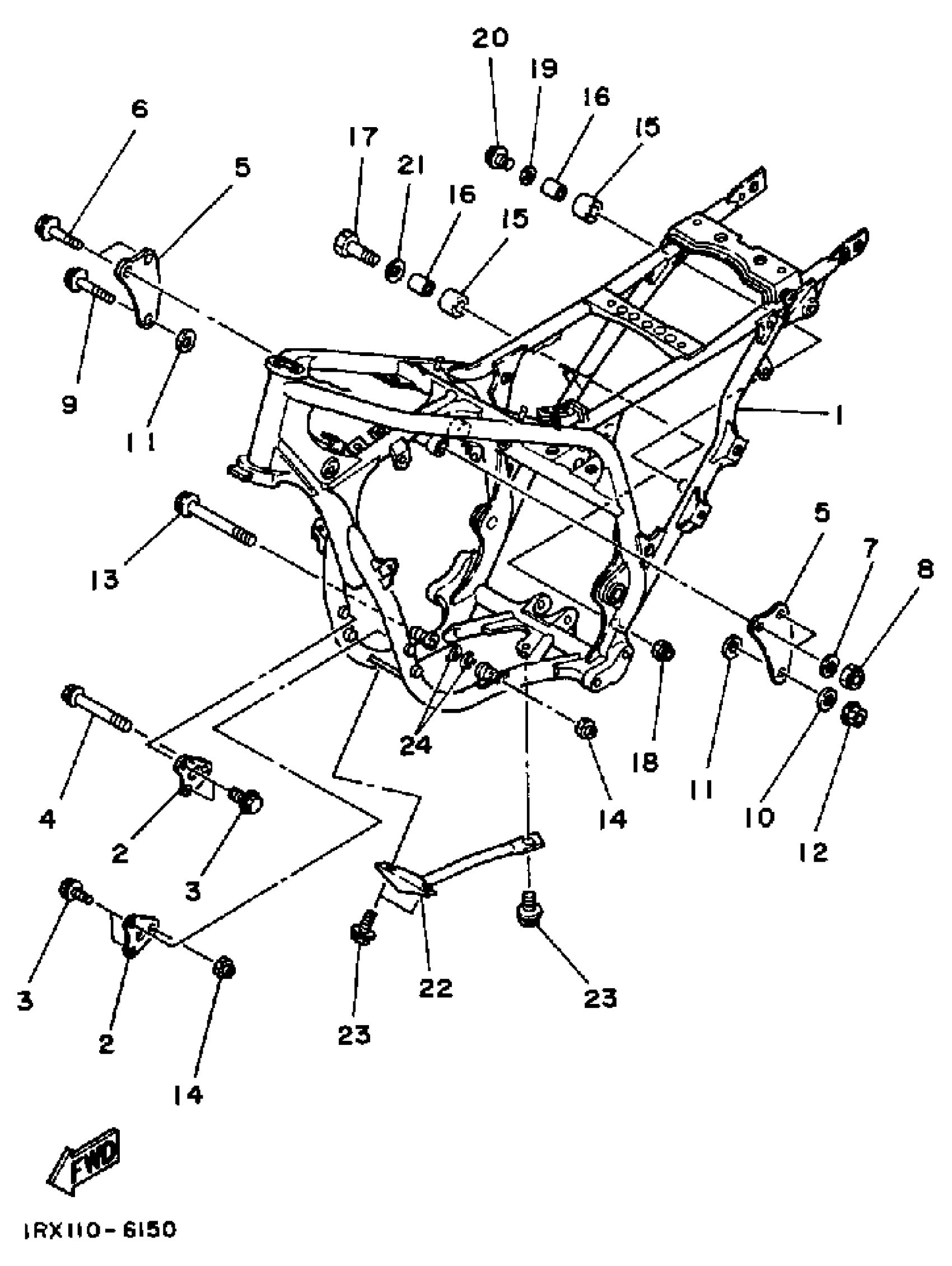

1986 Yamaha YTZ250S Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1RX-21110-00-FH)

1
Out of stock

2

BRACKET, FRONT UPPER 1

24Y-21415-00-00

1
Out of stock

3

BOLT, FLANGE(4LN)

95817-08025-00

1

$6.17

In stock

4

BOLT, FLANGE

95817-08100-00

1

$4.32

In stock

5

BRACKET, REAR UPR 1

38W-21425-00-00

1
Out of stock

6

BOLT, FLANGE

95817-08055-00

1

$2.82

In stock

7

WASHER 6464313202

90202-08022-00

1

$3.56

In stock

8

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

9

BOLT, FLANGE(87Y)

95817-10055-00

1

$4.54

In stock

10

1

$3.00

In stock

11

WASHER, PLATE (3J6)

90201-100A1-00

1

$6.71

In stock

12

NUT, SELF-LOCKING

90185-10170-00

1

$7.98

In stock

13

BOLT, FLANGE

95817-08180-00

1
Out of stock

14

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

15

TENSIONER

30X-22178-00-00

1
Out of stock

16

BUSH

4V4-22184-00-00

—

$3.57

In stock

17

BOLT (23X)

90109-08705-00

—

$12.78

In stock

18

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

19

WASHER, PLATE(8AT)

90201-081R9-00

—
Out of stock

20

BOLT, FLANGE

95817-08012-00

—

$3.98

In stock

21

WASHER, PLATE

90201-13013-00

—

$6.29

In stock

22

PROTECTOR, ENGINE

38W-21471-00-00

1
Out of stock

23

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock

24

WASHER, CLAW

90214-09019-00

1
Out of stock
