1986 Yamaha YTZ250S Handle Switch-Lever Diagram

← All diagrams

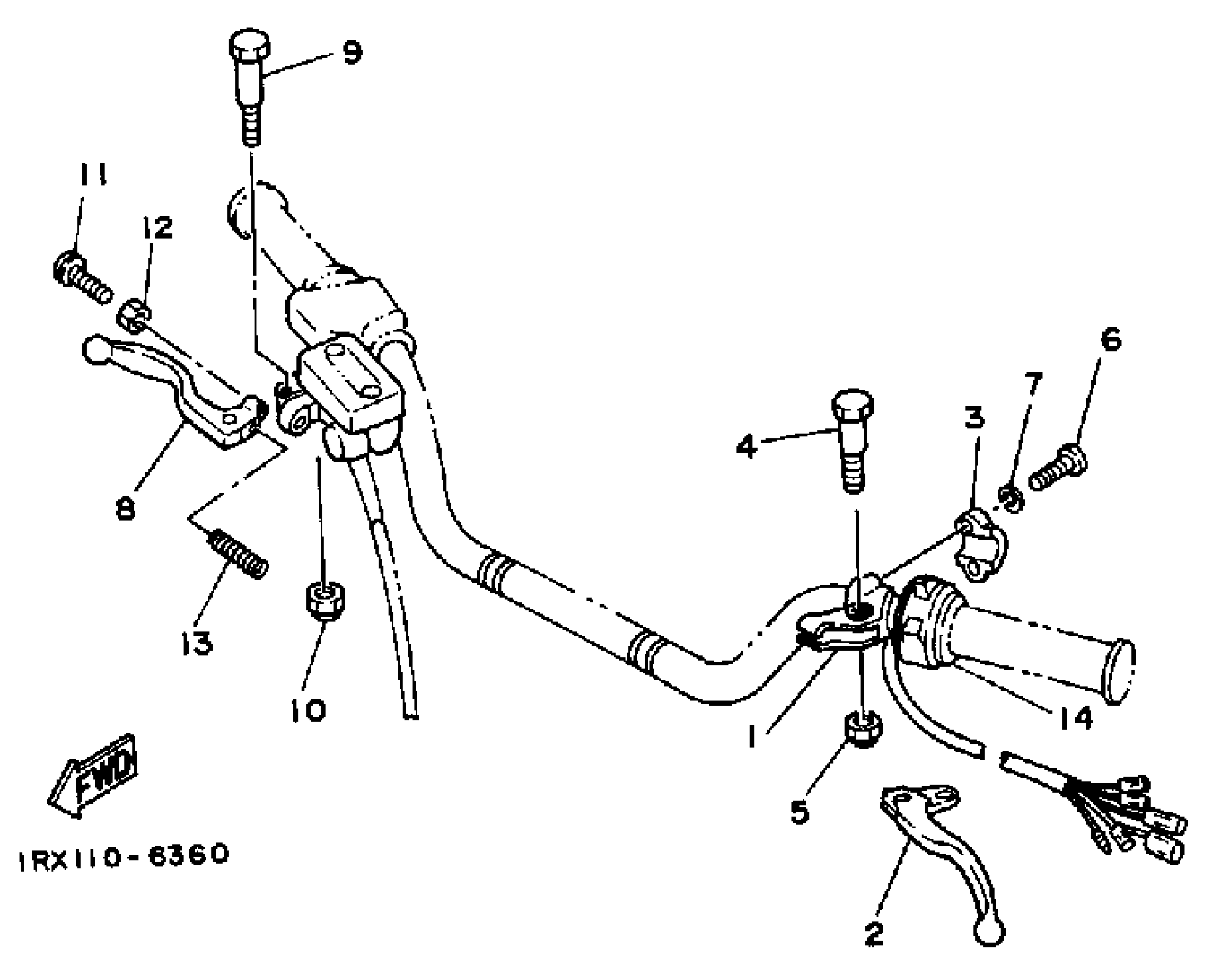

Find the part on the Handle Switch-Lever diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTZ250S Handle Switch-Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

H0LDER, LEVER 1

38V-82911-00-00

1

$33.86

In stock

2

LEVER 1

1NV-83912-02-00

1

$24.94

In stock

3

H0LDER, LEVER L0WER 1

38V-82913-00-00

1
Out of stock

4

BOLT(1FG)

90109-06798-00

1
Out of stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

7

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

8

LEVER 2

1RX-83922-02-00

1

$34.58

In stock

9

BOLT (4L0)

90109-06577-00

1

$5.38

In stock

10

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

11

SCREW (2L0)

90149-06131-00

1

$6.17

In stock

12

NUT HEXAGON 306839270000

90170-06010-00

1

$6.17

In stock

13

1

$6.17

In stock

14

SWITCH HANDLE 2

38W-83975-09-00

1
Out of stock
