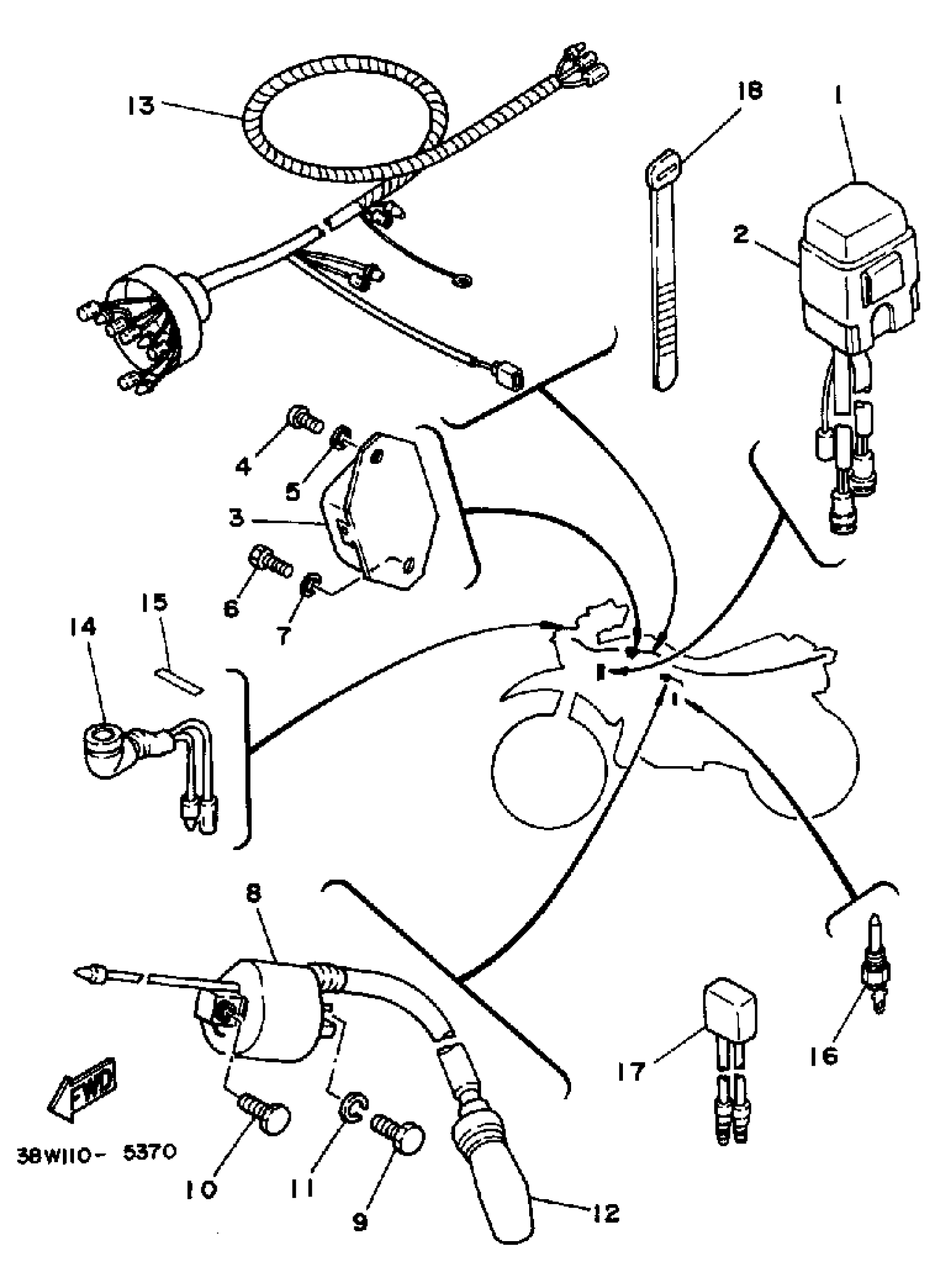

Yamaha YTZ250S 1986 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

1RX-85540-20-00

Unavailable

2

BAND

2A7-85546-00-00

Unavailable

3

VOLTAGE REGULATOR ASSY

7XE-81910-00-00

$46.16

4

SCREW (5G3)

90153-06034-00

$5.65

5

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

6

BOLT (661)

97013-06012-00

$4.40

7

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

8

IGNITION COIL ASSY

3SR-82310-10-00

Unavailable

9

BOLT (21V)

90109-06723-00

$6.26

10

BOLT(3DM)

97024-06020-00

$5.75

11

WASHER, SPRING

92995-06100-00

$2.95

12

PLUG CAP ASSY

8DG-82370-00-00

$41.54

13

WIRE HARNESS ASSEMBLY

38W-82590-00-00

Unavailable

14

PILOT LIGHT ASSY

52G-83530-10-00

$23.87

15

LABEL

38W-83585-00-00

Unavailable

16

OIL LVL SWITCH ASSEMBLYASSY

38W-82560-00-00

Unavailable

17

CHECKER, PILOT LAMP

38W-85774-00-00

Unavailable

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable
