Find the part on the Starter diagram for your 1986 Yamaha YTZ250S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

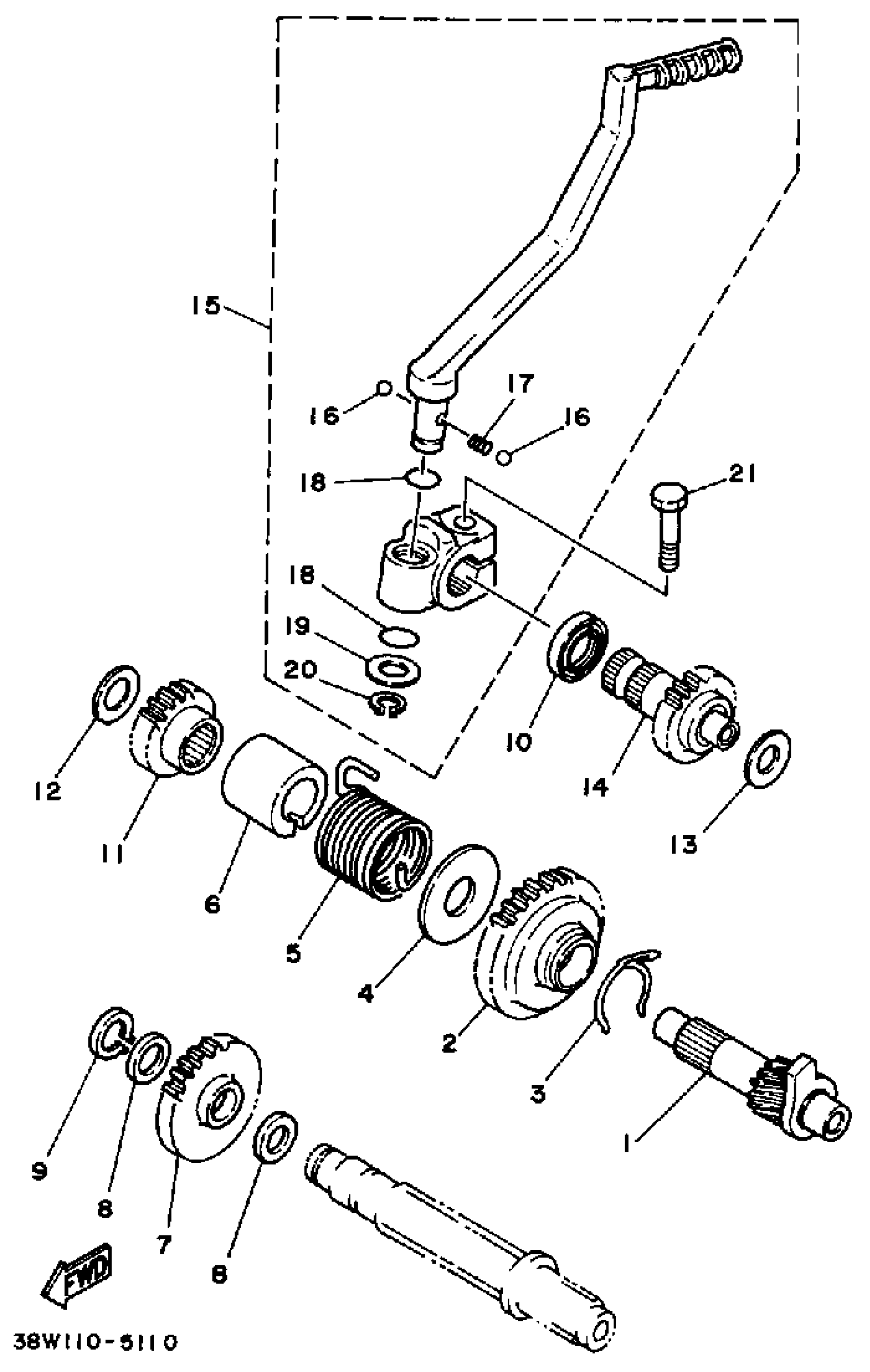

1986 Yamaha YTZ250S Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSEMBLY

38W-15660-00-00

1
Out of stock

2

GEAR, KICK

(53K-15641-00-00)

1
Out of stock

3

CLIP 315156870000

90468-26048-00

1
Out of stock

4

WASHER, PLATE

90201-20358-00

1
Out of stock

5

SPRING, TORSION (3R4)

90508-30422-00

1

$18.75

In stock

6

GUIDE, SPRING

3R4-15664-00-00

1
Out of stock

7

GEAR, KICK IDLE

3R4-15651-00-00

1
Out of stock

8

WASHER, PLATE (525)

90201-17545-00

1

$6.68

In stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

OIL SEAL,SD-TYPE

93102-20309-00

1

$8.77

In stock

11

GEAR, KICK

38W-15641-00-00

1
Out of stock

12

WASHER, PLATE

90201-13205-00

1
Out of stock

13

WASHER, PLATE(3GD)

90201-150U6-00

1

$7.95

In stock

14

KICK SHAFT ASSEMBLY

38W-15601-00-00

1
Out of stock

15

KICK CRANK ASSEMBLY

38W-15620-00-00

1
Out of stock

16

BALL (12R)

93507-32031-00

—
Out of stock

17

. SPRING, COMPRESSION

90501-10589-00

1
Out of stock

18

O-RING (22U)

93210-15566-00

—

$5.78

In stock

19

WASHER (3XVC)

90201-153A1-00

—

$6.71

In stock

20

CIRCLIP

99006-10600-00

—

$6.91

In stock

21

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock
