1986 Yamaha YTM225DRS Transmission Diagram

← All diagrams

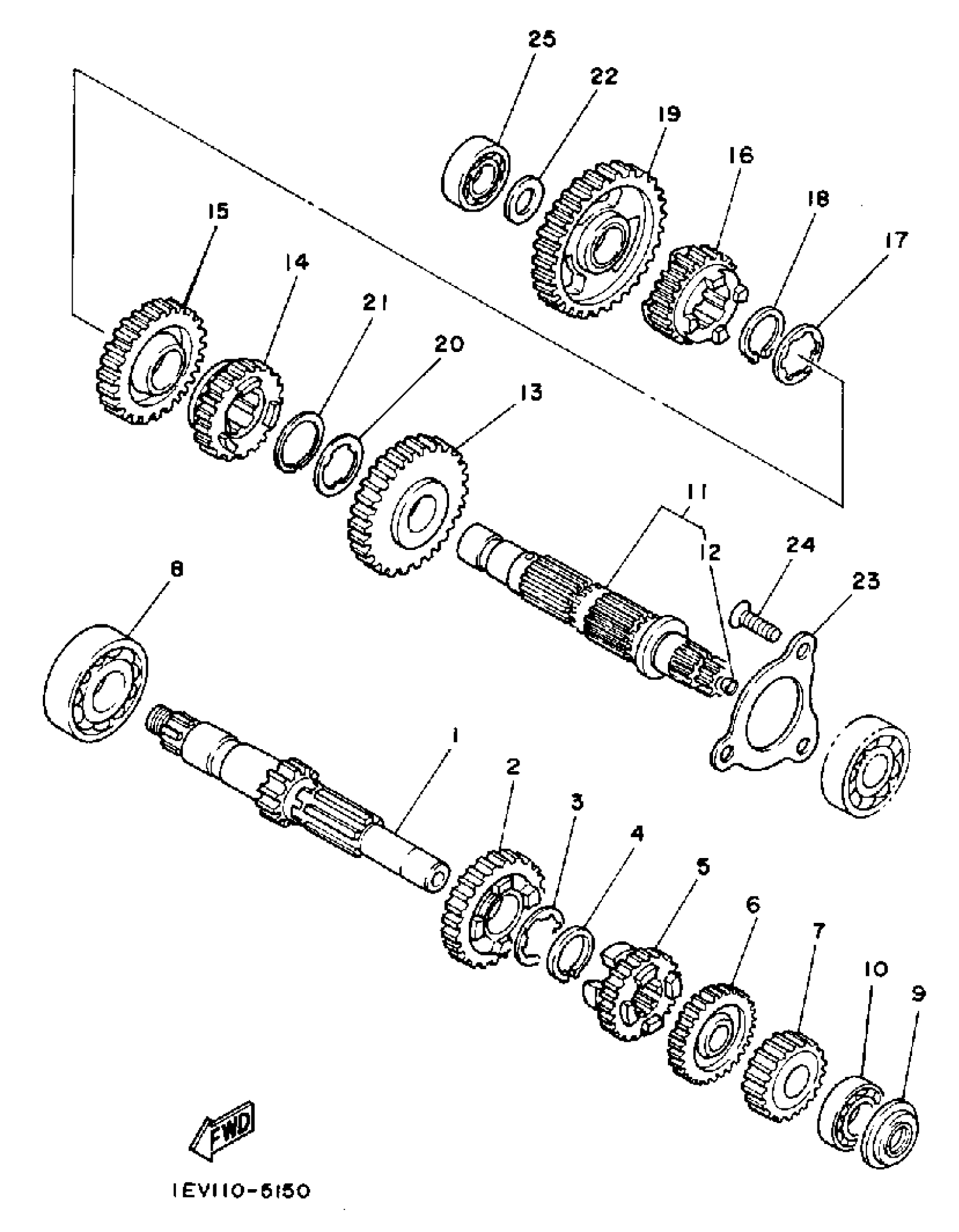

Find the part on the Transmission diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. MAIN AXLE ASSEMBLY COMP (12T)

21V-17401-00-00

1
Out of stock

2

GEAR, 5TH PINION

24W-17151-02-00

—

$50.46

In stock

3

WASHER (5H0)

90209-16209-00

1

$6.00

In stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 2ND PINION

5H0-17121-01-00

—

$43.28

In stock

6

GEAR, 4TH PINION

15A-17141-00-00

—

$29.43

In stock

7

GEAR, 2ND PINION

15A-17121-00-00

—
Out of stock

8

BEARING(1YW)

93306-20461-00

1

$33.41

In stock

9

OIL SEAL (5H0)

93101-15101-00

1

$10.06

In stock

10

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock

11

DRIVE AXLE ASSY

24W-17402-00-00

1
Out of stock

12

. PLUG, TIGHT

90331-07041-00

1
Out of stock

13

GEAR,2ND WHEEL

29U-17221-01-00

1
Out of stock

14

GEAR, 4TH WHEEL

24W-17241-00-00

—
Out of stock

15

GEAR, 3RD WHEEL

15A-17231-00-00

—
Out of stock

16

GEAR, 6TH WHEEL

5MP-17261-00-00

—

$85.94

In stock

17

WASHER (5H0)

90209-18208-00

—

$6.74

In stock

18

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

19

GEAR, 1ST WHEEL (34T)

29U-17211-00-00

1
Out of stock

20

WASHER (30X)

90209-23241-00

—

$3.32

In stock

21

CIRCLIP (30X)

93410-26067-00

—

$7.42

In stock

22

WASHER, PLATE (4L0)

90201-154E8-00

—

$6.17

In stock

23

PLATE, BEARING

24W-17558-00-00

1
Out of stock

24

SCREW

90149-08013-00

—

$6.25

In stock

25

BRG, R-B (7H4)

93306-20211-00

1

$22.05

In stock
