1986 Yamaha YTM225DRS Drive Selector Diagram

← All diagrams

Find the part on the Drive Selector diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

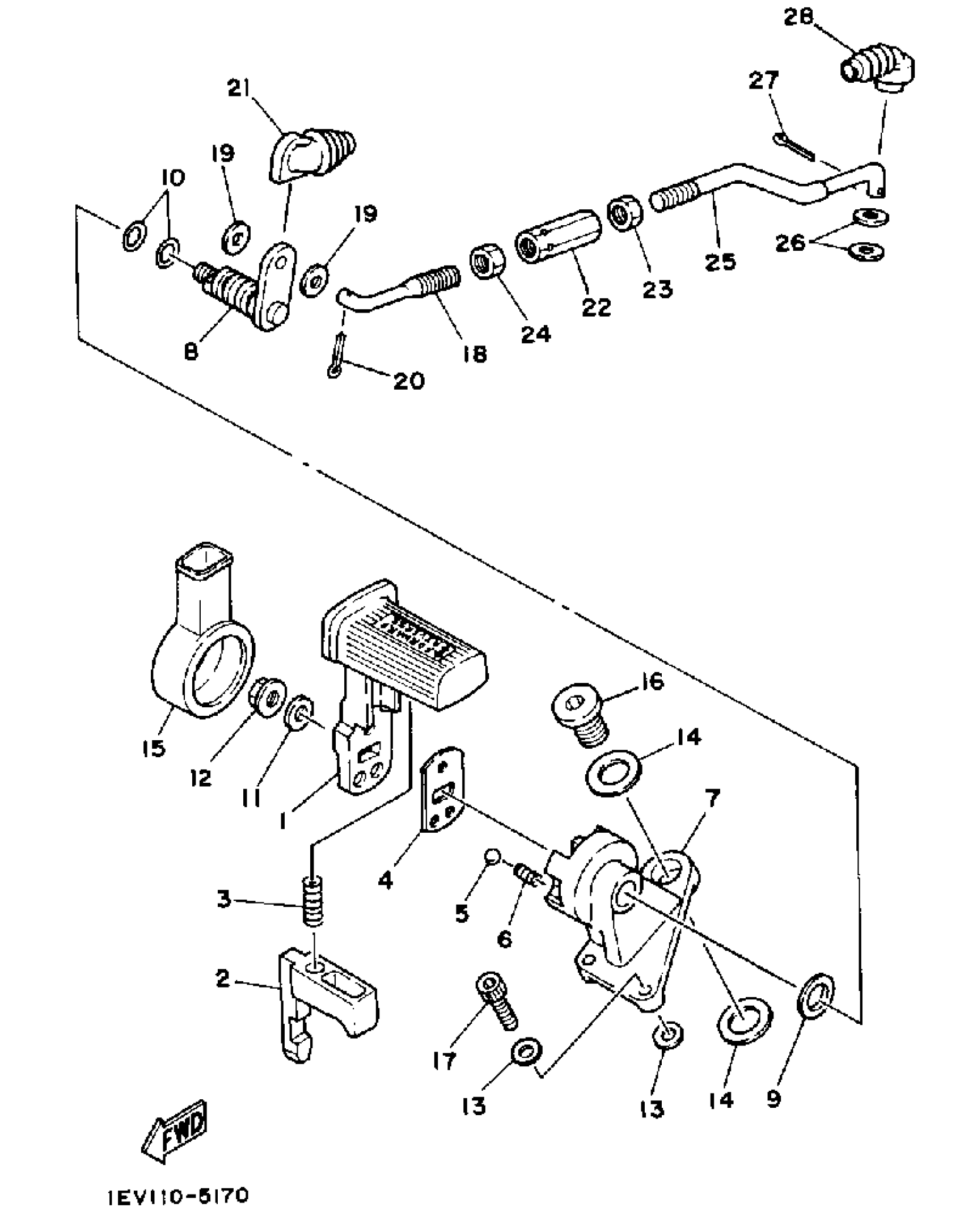

1986 Yamaha YTM225DRS Drive Selector Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT LEVER ASSY

52G-18150-00-00

—
Out of stock

2

KNOB, SHIFT LEVER

4KD-18174-01-00

1
Out of stock

3

SPRING, COMPRESSION(52G)

90501-101A7-00

1

$5.70

In stock

4

PLATE, SIDE 1

52G-18561-00-00

—
Out of stock

5

BALL

93509-32012-00

—
Out of stock

6

SPRING, COMPRESSION(52G)

90501-103A1-00

1
Out of stock

7

GUIDE, SHIFT RETURN SPRING

52H-18153-00-00

1
Out of stock

8

SHAFT, RINK

52H-18341-00-00

—
Out of stock

9

WASHER, PLATE(52G)

90201-144J2-00

1

$6.46

In stock

10

O-RING (611)

93210-10096-00

1

$3.11

In stock

11

WASHER, PLATE(52G)

90201-064J1-00

1
Out of stock

12

NUT, FLANGE(7NB)

95780-06500-00

1

$1.91

In stock

13

WASHER, PLATE(4BD)

90201-067P3-00

1

$4.29

In stock

14

WASHER, PLATE(4BD)

90201-147P2-00

1

$7.00

In stock

15

COVER, SHIFT SPRING

52G-18433-00-00

1
Out of stock

16

PLUG, STRAIGHT SCREW

90340-14107-00

1
Out of stock

17

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

18

JOINT, ROD 2

52G-18117-00-00

1
Out of stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

COVER, DUST

5R2-18154-00-00

—
Out of stock

22

NUT, ADJUST

52G-18187-00-00

1
Out of stock

23

NUT(6TA)

95337-08600-00

—

$6.17

In stock

24

NUT

90170-08261-00

1

$1.72

In stock

25

JOINT, ROD 1

52G-18116-00-00

1
Out of stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

PIN, COTTER

91490-20025-00

—

$1.31

In stock

28

COVER, DUST

10W-18154-00-00

—
Out of stock

29

COVER, SHIFT PEDAL

52G-18113-00-00

—
Out of stock
