1986 Yamaha YTM225DRS Shiftcam - Fork Diagram

← All diagrams

Find the part on the Shiftcam - Fork diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

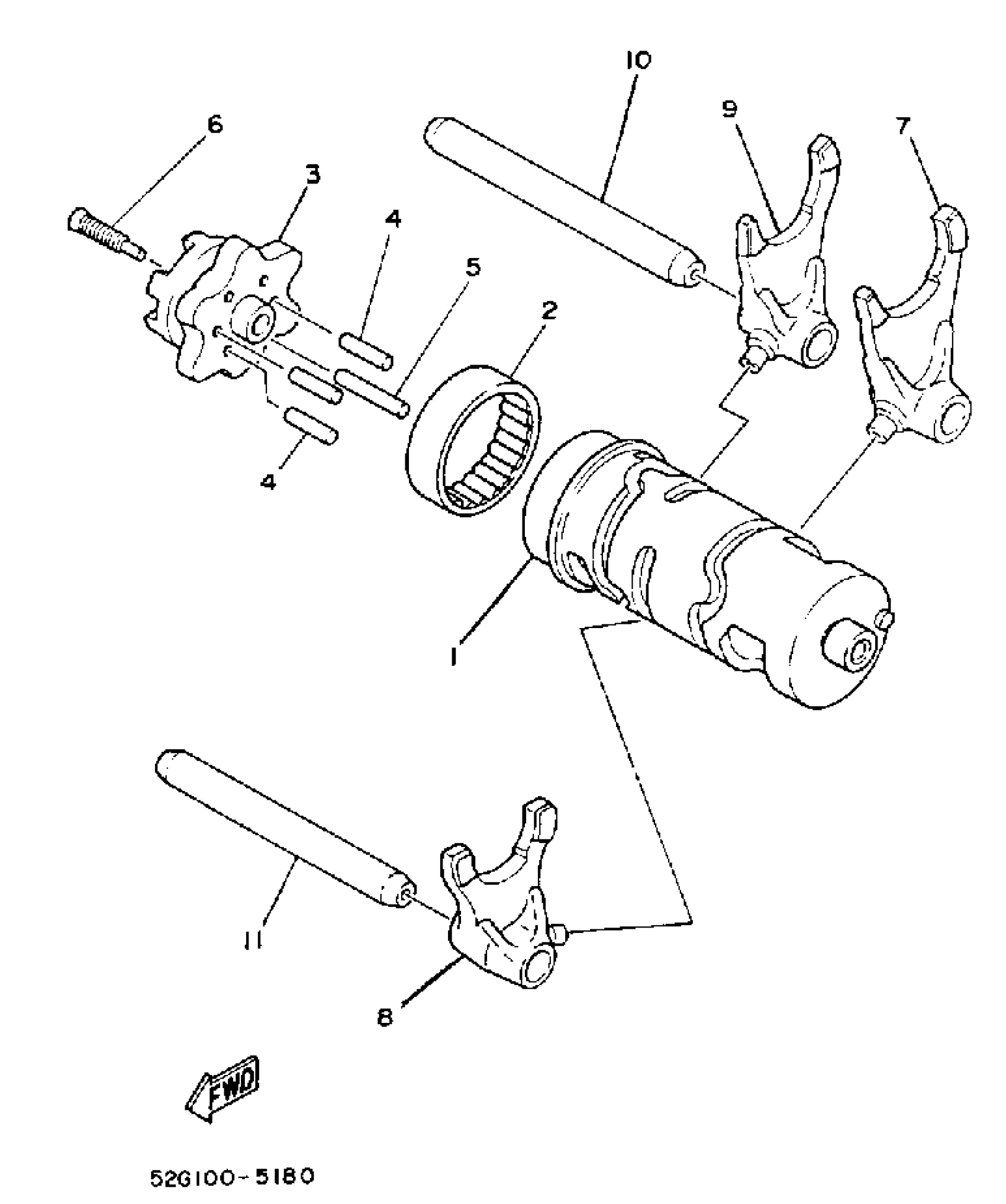

1986 Yamaha YTM225DRS Shiftcam - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

52G-18540-01-00

—

$95.68

In stock

2

BRG,CYL-CAL ROLLER 22G NT

93315-23612-00

1
Out of stock

3

SEGMENT

5H0-18185-01-00

1
Out of stock

4

PIN, DOWEL (409)

93604-16092-00

1

$1.94

In stock

5

PIN, DOWEL (4H7)

93604-20156-00

1

$2.22

In stock

6

SCREW, COUNTERSUNK (5H0)

90151-06013-00

1

$6.91

In stock

7

FORK, SHIFT 3

4JG-18513-00-00

—
Out of stock

8

FORK, SHIFT 1

4JG-18511-00-00

—
Out of stock

9

FORK, SHIFT 2

4JG-18512-01-00

—

$88.92

In stock

10

BAR, SHIFT FORK GUIDE 1

5H0-18531-00-00

1
Out of stock

11

BAR, SHIFT FORK GUIDE 2

4DN-18535-00-00

—

$12.32

In stock
