1986 Yamaha YTM225DRS Clutch Diagram

← All diagrams

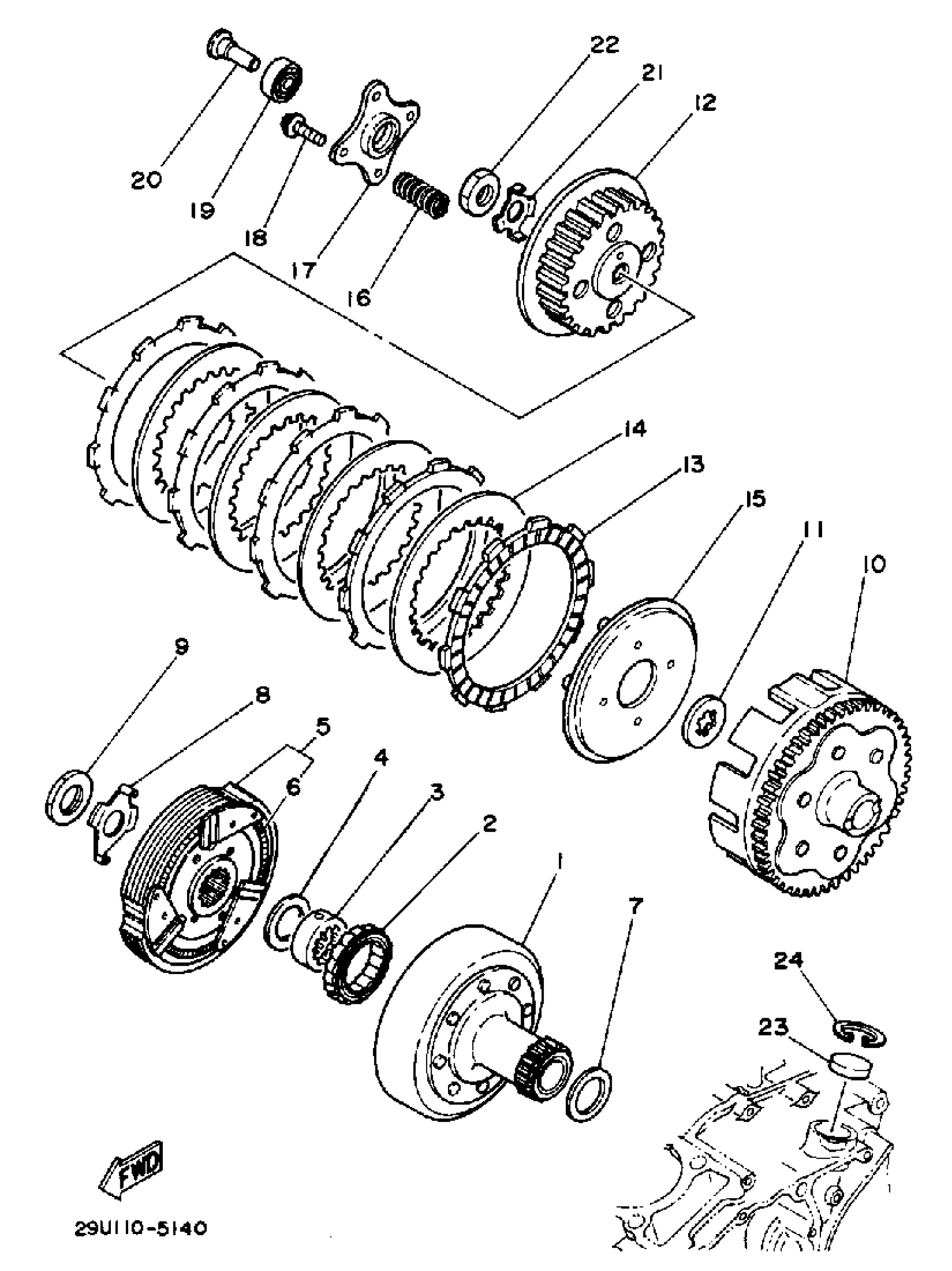

Find the part on the Clutch diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH HOUSING COMP.

3GC-16611-00-00

—
Out of stock

2

BEARING,ONE WAY

21V-16664-00-00

1

$143.97

In stock

3

RETAINER, BEARING

21V-16665-01-00

1
Out of stock

4

WASHER, PLATE

90201-403G7-00

1
Out of stock

5

CLUTCH CARRIER ASSY

99999-01949-00

1

$507.34

In stock

6

. SPRING, CLUTCH WEIGHT

29U-16626-00-00

1
Out of stock

7

WASHER, PLATE (21V)

90201-266F6-00

1
Out of stock

8

WASHER, LOCK

90215-22206-00

1
Out of stock

9

NUT(1NU)

90170-22371-00

1

$14.37

In stock

10

PRIMARY DRIVEN GEAR COMP.

2HT-16150-00-00

1
Out of stock

11

PLATE, THRUST 1

5H0-16154-00-00

—
Out of stock

12

BOSS, CLUTCH

21V-16371-01-00

1
Out of stock

13

PLATE, FRICTION

3XP-16321-00-00

1
Out of stock

14

PLATE, CLUTCH 1

257-16324-10-00

—
Out of stock

15

PLATE, PRESSURE 1

21V-16351-00-00

1
Out of stock

16

SPRING, COMPRESSION(3GC)

90501-243J7-00

—

$11.48

In stock

17

PLATE, PRESSURE 2

21V-16352-00-00

1
Out of stock

18

SCREW, WITH WASHER (537)

90159-05011-00

—

$2.45

In stock

19

BRG,R-B 6000 26MM 19G KY

93306-00004-00

—

$31.81

In stock

20

PLATE, PUSH

1YW-16358-00-00

—

$11.65

In stock

21

WASHER, LOCK (25G)

90215-14186-00

—

$7.83

In stock

22

NUT (5H0)

90170-14284-00

—

$7.92

In stock

23

PLUG (21V)

90338-26136-00

—

$12.23

In stock

24

CIRCLIP (3Y1)

93420-28055-00

—

$6.89

In stock
