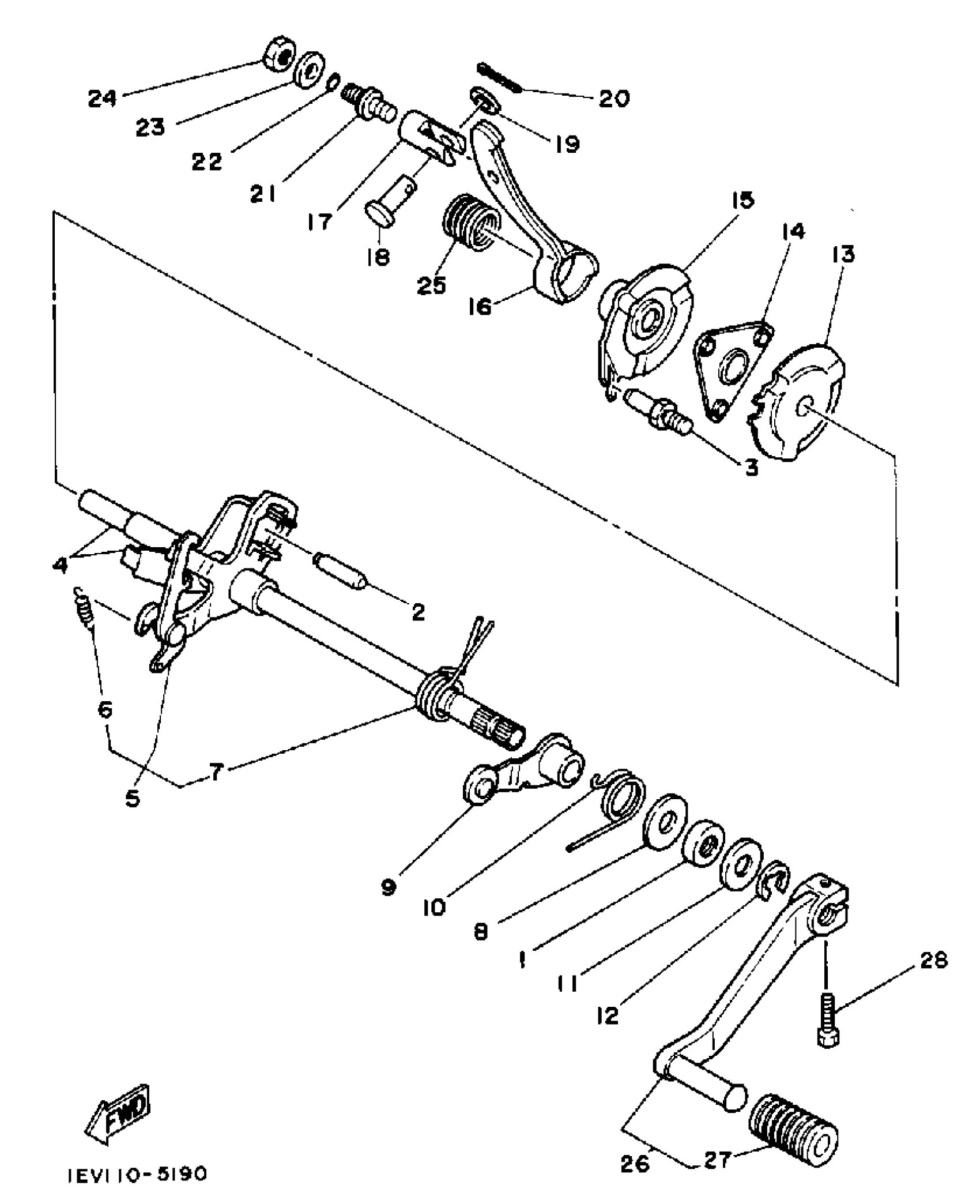

Find the part on the Shift Shaft diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

15

GUIDE SHIFT COMP.

24W-18104-00-00

1
Out of stock

16

ARM, SHIFT 3

2HT-1817A-00-00

1
Out of stock

17

PIN, LEVER

21V-18126-00-00

1
Out of stock

18

PIN, JOINT

21V-18118-00-00

1
Out of stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

PIN, COTTER

91490-16020-00

1

$6.23

In stock

21

STOPPER, SCREW

21V-18127-00-00

—
Out of stock

22

O-RING (21V)

93210-07590-00

—

$5.69

In stock

23

WASHER (1T1)

90201-08649-00

1
Out of stock

24

NUT, HEXAGON SMALL

95317-08700-00

1

$7.05

In stock

25

SPRING, COMPRESSION

90501-16768-00

1
Out of stock

26

SHIFT PEDAL ASSEMBLY

52H-18110-01-00

1
Out of stock

27

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

28

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock
