1986 Yamaha YTM225DRS Starting Motor Diagram

← All diagrams

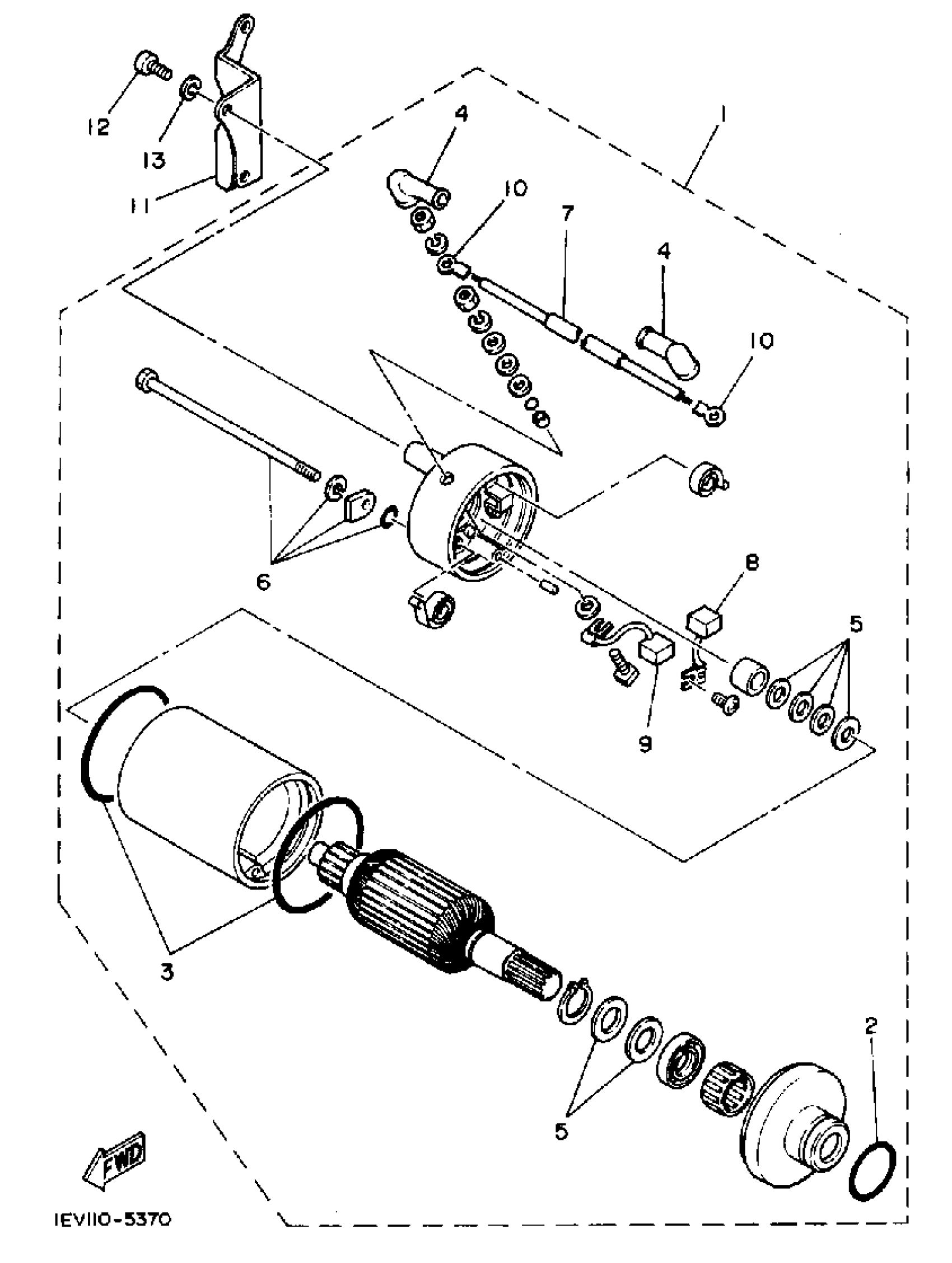

Find the part on the Starting Motor diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTING MOTOR ASSEMBLY (24W-81800-60)

29U-81800-61-00

1
Out of stock

2

. O-RING

5H0-81847-01-00

1
Out of stock

3

GASKET

5H0-81844-01-00

1
Out of stock

4

.. CAP

5H0-81871-00-00

1
Out of stock

5

. WASHER KIT

5H0-81809-00-00

1
Out of stock

6

. BOLT

5H0-81826-00-00

1
Out of stock

7

. WIRE, STARTER

29U-81815-00-00

1
Out of stock

8

BRUSH 1

5H0-81811-00-00

—

$21.05

In stock

9

BRUSH 2

5H0-81812-00-00

1

$21.05

In stock

10

. TERMINAL SET

5H0-81818-00-00

1
Out of stock

11

STAY, STARTING MOTOR

24W-81823-00-00

1
Out of stock

12

SCREW, PAN

98507-06014-00

1

$6.18

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
