1986 Yamaha YTM225DRS Handle Switch-Lever Diagram

← All diagrams

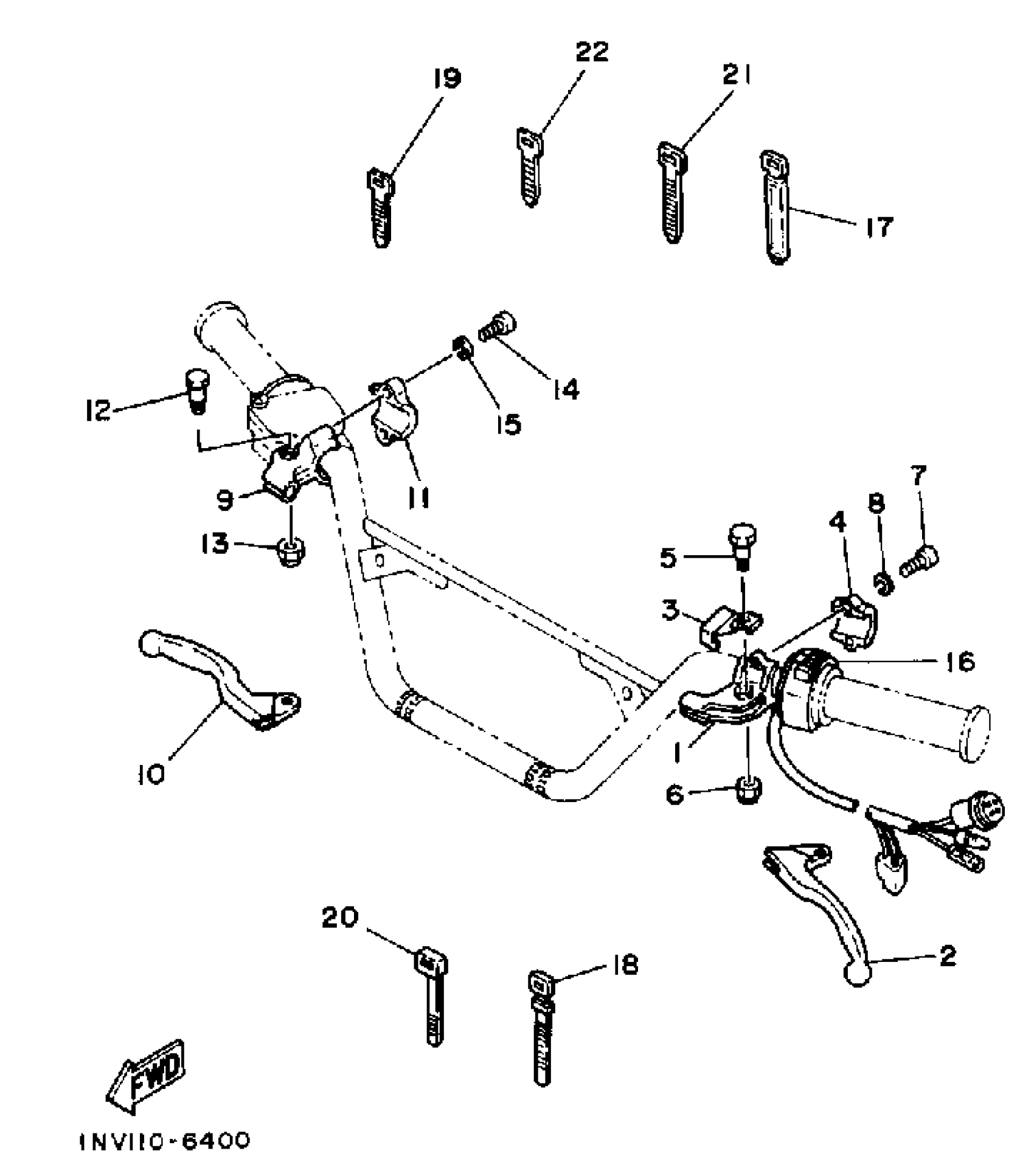

Find the part on the Handle Switch-Lever diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha YTM225DRS Handle Switch-Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

H0LDER, LEVER 1

38V-82911-00-00

1

$33.86

In stock

2

LEVER 1

1NV-83912-02-00

1

$24.94

In stock

3

LEVER, LOCK

3X3-83965-00-00

1

$26.37

In stock

4

H0LDER, LEVER L0WER 1

38V-82913-00-00

1
Out of stock

5

BOLT(1FG)

90109-06798-00

1
Out of stock

6

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

7

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

8

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

9

H0LDER, LEVER 2

38V-82921-00-00

1

$36.58

In stock

10

LEVER R

1NV-83922-00-00

1
Out of stock

11

HOLDER, LEVER LOWER

4V4-82913-00-00

—
Out of stock

12

BOLT(1FG)

90109-06798-00

1
Out of stock

13

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

14

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

15

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

16

SWITCH, HANDLE 3

29U-83973-08-00

—

$138.17

In stock

17

BAND

341-26397-01-00

1
Out of stock

18

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

19

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

20

BAND

1UA-82591-00-00

—
Out of stock

21

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

22

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
