1986 Yamaha YTM225DRS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1986 Yamaha YTM225DRS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

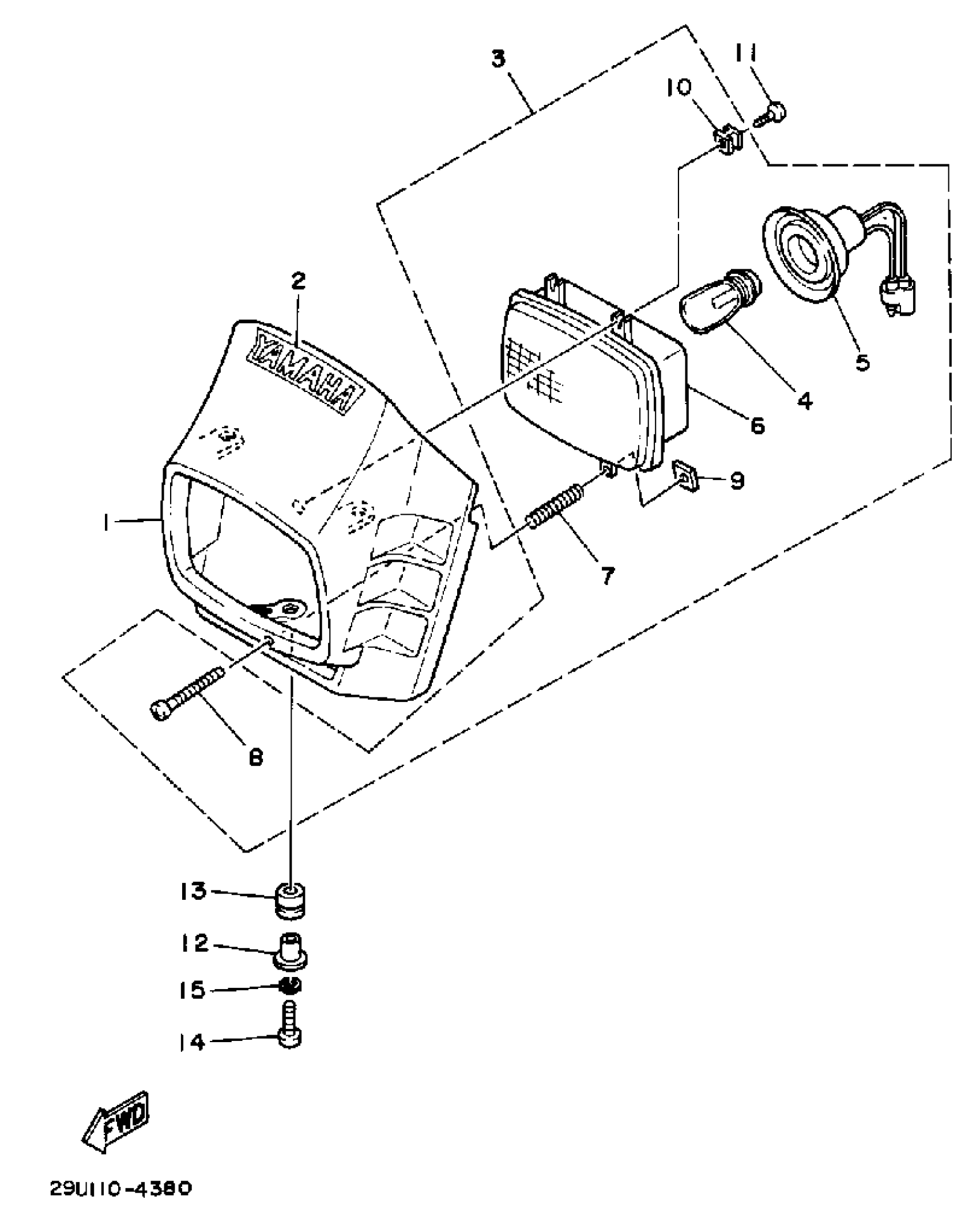

1986 Yamaha YTM225DRS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY, HEADLIGHT

29U-84311-20-00

1
Out of stock

1

BODY, HEADLIGHT

29U-84311-30-00

1
Out of stock

2

EMBLEM, YAMAHA

99241-00080-00

1

$11.89

In stock

3

HEADLIGHT UNIT ASSEMBLY

(21V-84310-00-00)

1
Out of stock

4

BULB,H.L.12V45/45W

21V-84314-00-XX

1
Out of stock

5

. SOCKET

21V-84312-00-00

1
Out of stock

6

. LENS ASSEMBLY

21V-84320-00-00

1
Out of stock

7

SPRING,SCREW

3AA-84332-00-00

1
Out of stock

8

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

9

. NUT, ADJUSTING

21V-84334-00-00

1
Out of stock

10

. NUT, BODY FITTING

21V-84316-00-00

1
Out of stock

11

SCREW, PAN TAP.2 SLIT

97707-40614-00

1

$2.71

In stock

12

COLLAR

90387-06166-00

1
Out of stock

13

GROMMET

90480-14412-00

1
Out of stock

14

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
