1982 Yamaha YT175J Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

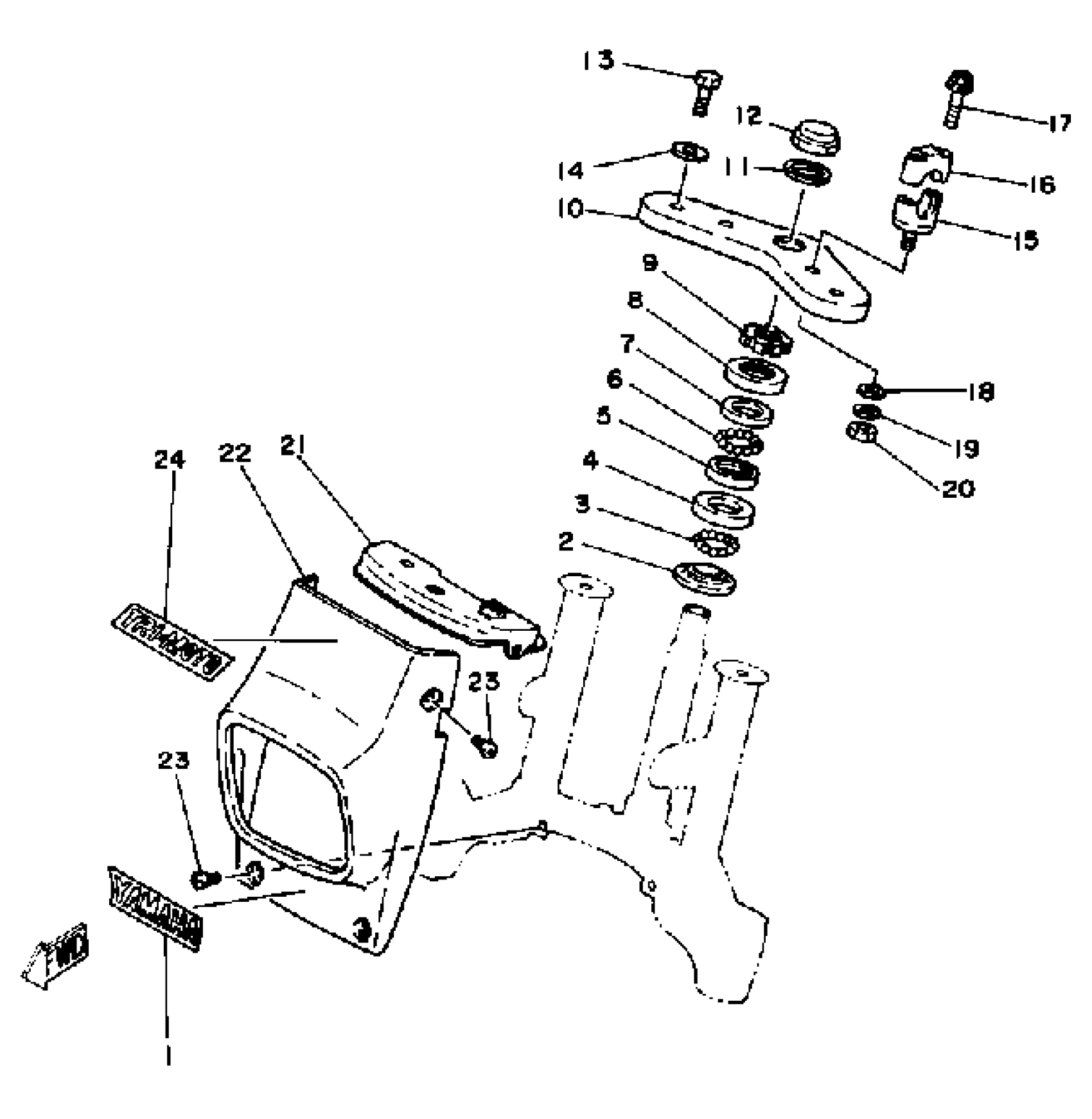

1982 Yamaha YT175J Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EMBLEM, YAMAHA

99244-00100-00

—

$17.82

In stock

2

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

3

BALL

93501-04011-00

1
Out of stock

4

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

5

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

6

BALL

93503-16003-00

1

$2.14

In stock

7

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

8

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

9

NUT

90179-25004-00

1

$20.78

In stock

10

CROWN, HANDLE

3X3-23435-00-00

1
Out of stock

11

WASHER, PLATE

90201-252A5-00

1
Out of stock

12

NUT, FITTING 1

3X3-23453-00-00

1
Out of stock

13

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock

14

WASHER PLATE (3L6)

90201-10742-00

1

$6.80

In stock

15

HOLDER, HANDLE UNDER

462-23442-00-98

—
Out of stock

16

HOLDER, HANDLE UPPER

462-23441-01-00

—
Out of stock

17

BOLT, FLANGE

95817-06035-00

—

$5.37

In stock

18

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

19

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

20

NUT(624)

95380-10600-00

—

$2.14

In stock

21

HOLDER, CABLE

4U3-23317-00-98

1
Out of stock

22

PANEL, FRONT

4U3-23391-00-00

1
Out of stock

23

SCREW, BIND (705)

98980-06016-00

—
Out of stock

24

EMBLEM 5

4U3-21785-00-00

1
Out of stock
