1982 Yamaha YT175J Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

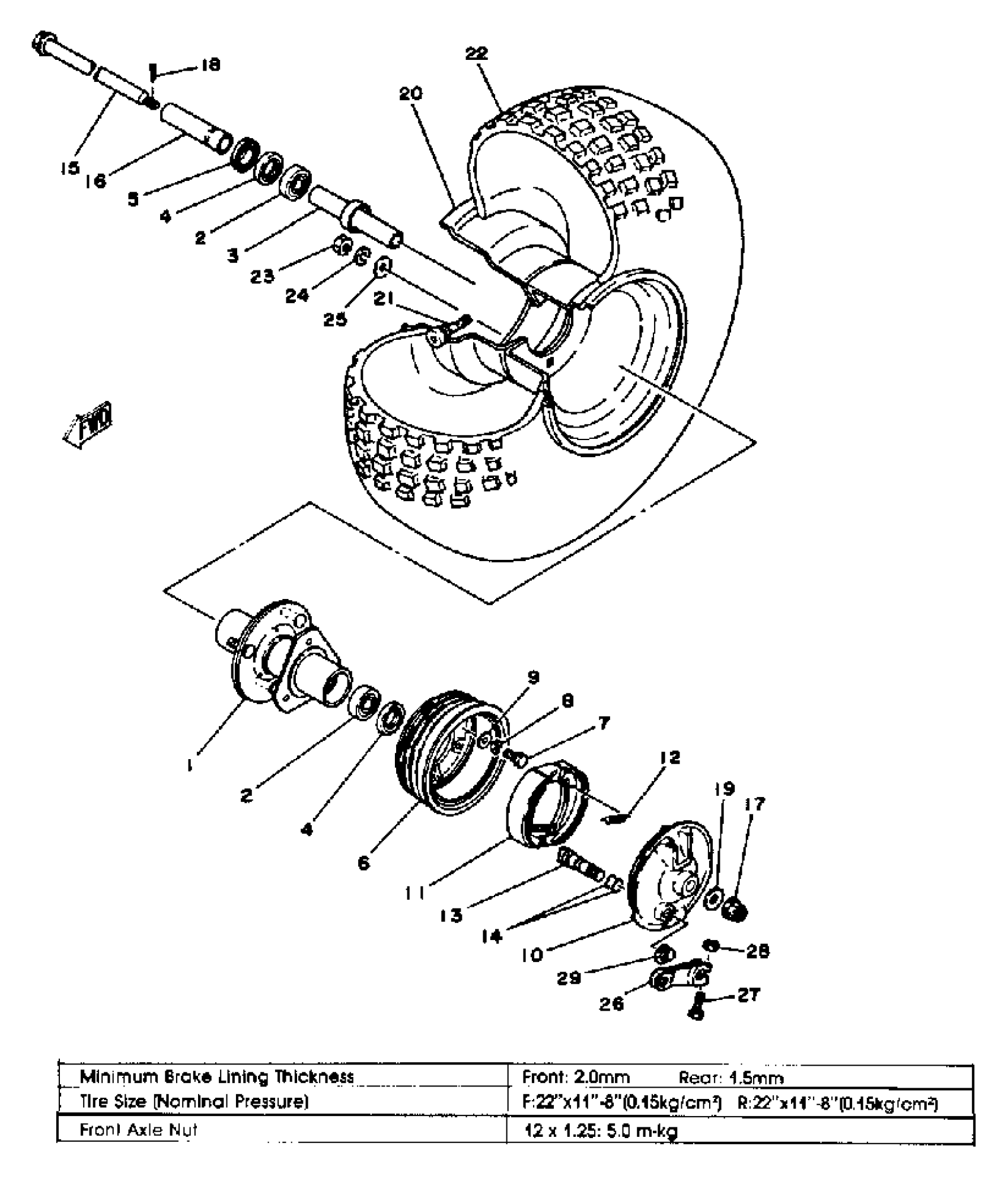

1982 Yamaha YT175J Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(5V7-25111-00-00)

1
Out of stock

2

1

$31.64

In stock

3

SPACER, BEARING

5V7-25117-00-00

1
Out of stock

4

OIL SEAL (5V6)

93102-23252-00

1

$12.17

In stock

5

COVER, HUB DUST

5V6-25118-00-00

1
Out of stock

6

DRUM, BRAKE

5V7-2511E-00-35

—

$219.32

In stock

7

BOLT, HEXAGON

97013-08020-00

1

$1.54

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

9

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

10

PLATE, BRAKE SHOE

(5V7-25121-00-38)

1
Out of stock

11

BRAKE SHOE KIT

4BE-W253E-00-00

1

$22.27

In stock

12

SPRING, TENSION

90506-15260-00

1

$5.75

In stock

13

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

14

O-RING (26H)

93210-14579-00

1

$5.69

In stock

15

AXLE, WHEEL

5V7-25181-00-00

1
Out of stock

16

COLLAR, WHEEL

5V7-25186-00-00

1
Out of stock

17

NUT, CASTLE(3SB)

90171-12050-00

1
Out of stock

18

PIN, COTTER

91490-30030-00

—

$7.15

In stock

19

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

20

WHEEL, FRONT

29U-25180-00-35

1
Out of stock

21

VALVE, RIM(2GH)

93900-00030-00

—

$14.46

In stock

22

22X11.00-8 KT221TL

94122-11572-00

1
Out of stock

23

NUT(624)

95380-10600-00

—

$2.14

In stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

25

—

$3.00

In stock

26

LEVER, CAM SHAFT

3E1-25155-00-00

—
Out of stock

27

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

28

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

29

PLATE, INDICATOR

5V7-2513A-00-00

1
Out of stock
