1982 Yamaha YT175J Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

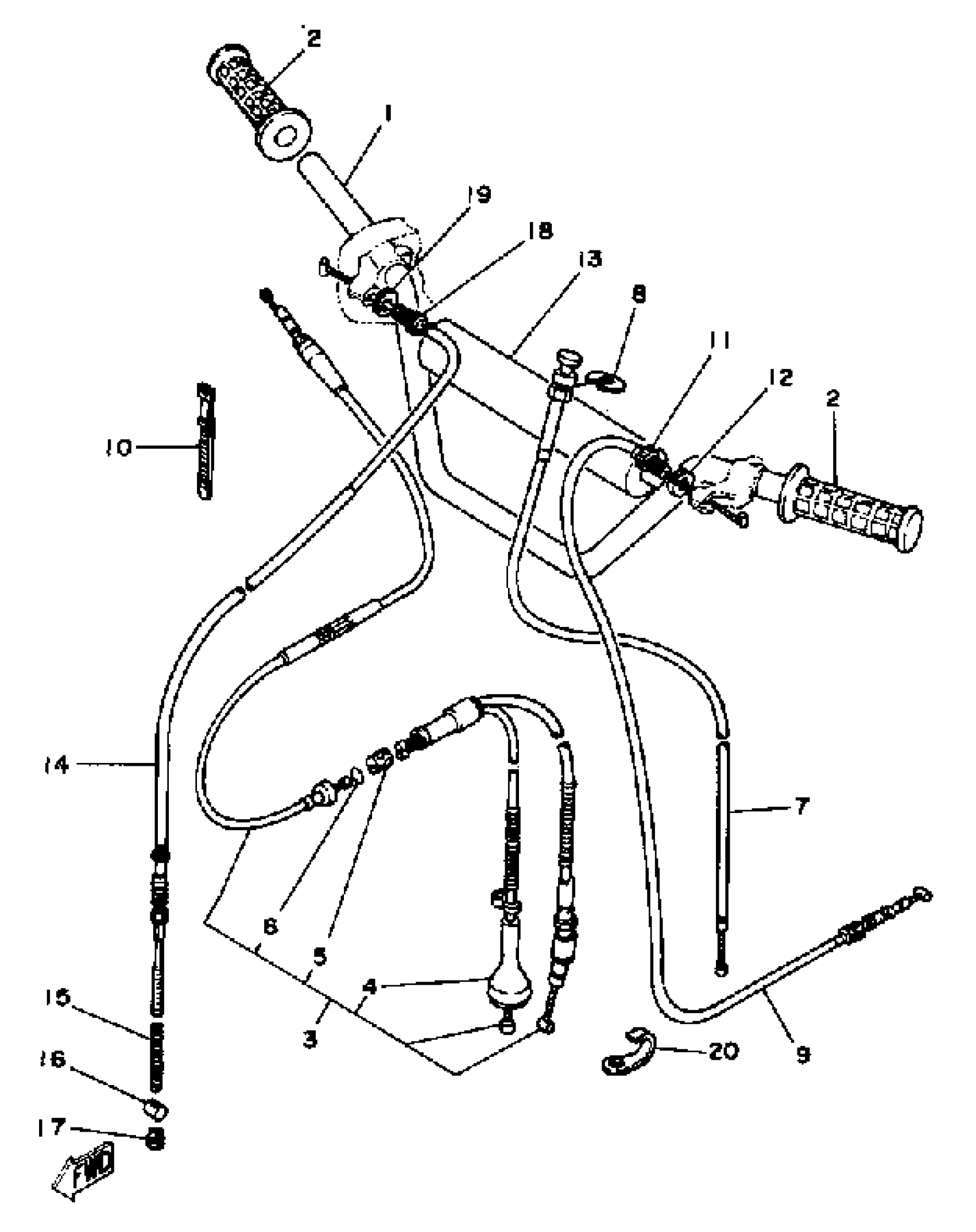

1982 Yamaha YT175J Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

5V6-26111-00-00

1
Out of stock

2

GRIP (L.H)

3GB-26241-00-00

1

$19.00

In stock

3

CBLE ASSEMBLY, THRTL/PMP

5V7-26260-00-00

1
Out of stock

4

. CAP, RUBBER

437-26329-00-00

1
Out of stock

5

PIECE, CONNECTING

1M1-26263-00-00

1
Out of stock

6

O-RING (260)

93210-10118-00

1

$5.86

In stock

7

CABLE, STARTER 1

5V6-26331-02-00

1
Out of stock

8

WASHER, SPECIAL 1

4U3-23385-00-00

1
Out of stock

9

CABLE, BRAKE

5V6-26340-00-00

1
Out of stock

10

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

11

BOLT

90123-08002-00

1

$8.93

In stock

12

NUT

90179-08030-00

1

$3.78

In stock

13

PROTECTOR, HDLBR

4U3-26124-00-00

1
Out of stock

14

CABLE, BRAKE 4

5V7-26373-00-00

1
Out of stock

15

SPRING, (180-27236-00)

90501-10245-00

1

$6.17

In stock

16

PIN 1562723700

90249-12008-00

—

$4.70

In stock

17

NUT (25K)

90179-06411-00

—

$5.10

In stock

18

BOLT

90123-08002-00

1

$8.93

In stock

19

NUT

90179-08030-00

1

$3.78

In stock

20

UNAVAILABLE IN PRICE BOOK

90465-06055-00

1
Out of stock
