1982 Yamaha YT175J Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

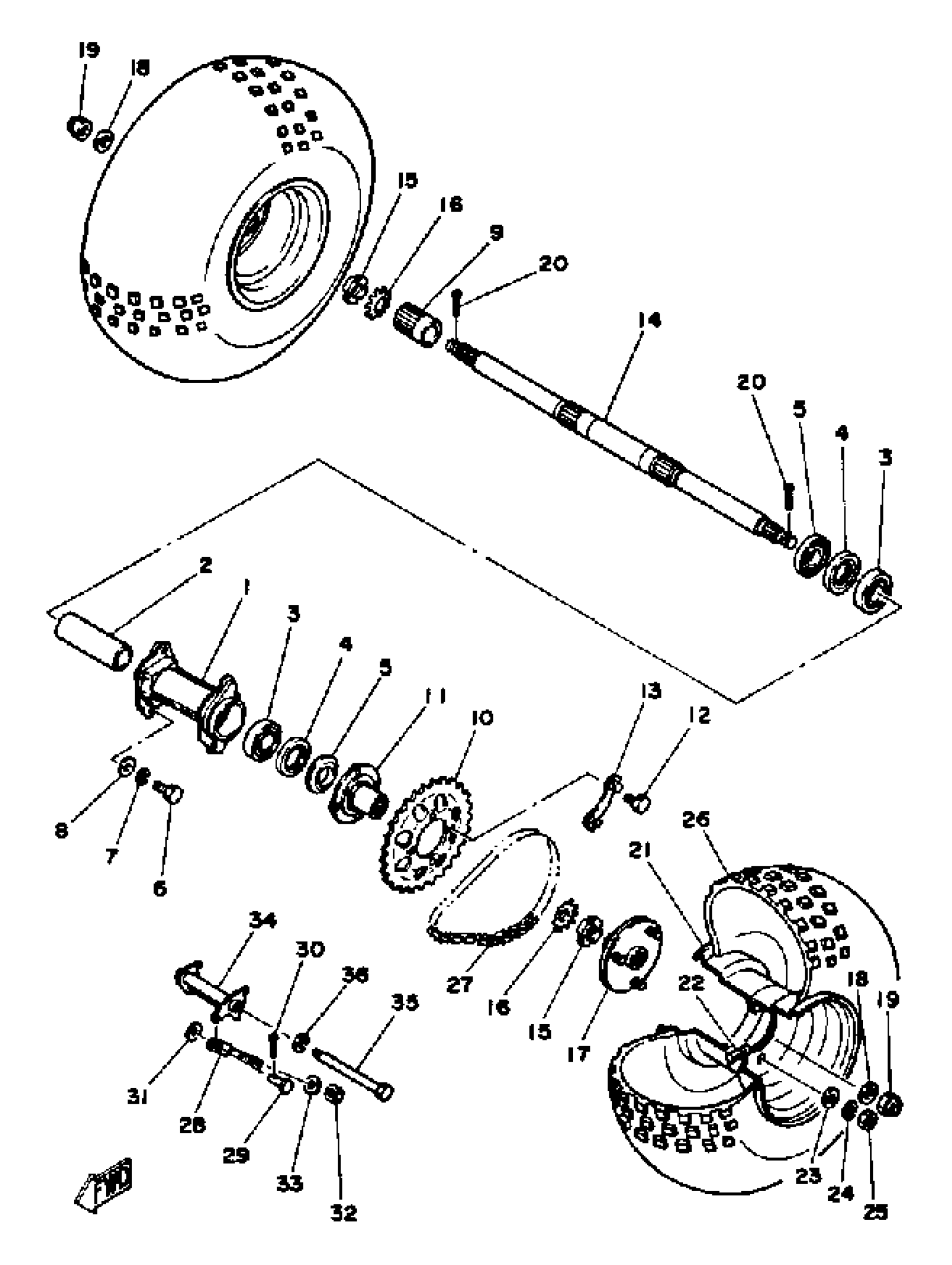

1982 Yamaha YT175J Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

5V6-25311-00-00

1
Out of stock

2

SPACER

90560-35309-00

1
Out of stock

3

BRG,R-B 6007 62MM 150G KY

93306-00702-00

1

$52.00

In stock

4

OIL SEAL(3BC)

93106-42026-00

1

$11.35

In stock

5

COVER, HUB DUST

5V6-25367-00-00

1

$7.94

In stock

6

BOLT(6TD)

97017-10025-00

1

$6.82

In stock

7

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

8

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

9

WASHER

5H0-25412-00-00

1
Out of stock

9

COLLAR, SPRKT AXLE

5V6-25386-00-00

1
Out of stock

9

SPROCKET KIT

(5V7-00000-00-00)

1
Out of stock

9

PORTECTOR, CHAIN (5V6-22147-00)

5V7-22147-00-00

1
Out of stock

9

SPROCKET, DRVN 42T

5V7-25442-20-00

1
Out of stock

9

WASHER, LOCK (1L8)

90215-16127-00

1

$8.91

In stock

9

PIN, COTTER

91490-40045-00

1

$6.80

In stock

9

SEALED CHAIN YT175

94580-40050-00

1
Out of stock

10

SPROCKET, DRVN 39T

5V6-25439-20-00

1
Out of stock

10

SPROCKET, DRVN 42T

5V7-25442-20-00

1
Out of stock

11

BOSS (5V6-25521-00)

5V6-25521-01-00

1
Out of stock

12

BOLT,HEXAGON

97017-10016-00

—

$6.85

In stock

13

WASHER

5H0-25412-00-00

1
Out of stock

14

AXLE, WHEEL

5V6-25381-00-00

1
Out of stock

15

NUT, SPEC''L SHAPE

90179-32365-00

1
Out of stock

16

WASHER, LOCK

90215-33195-00

1
Out of stock

17

COLLAR, WHEEL (3X3-25383-00)

5V7-25383-00-00

1
Out of stock

18

WASHER(3JP)

92903-20600-00

—

$6.68

In stock

19

NUT, FLANGE

95707-20300-00

1
Out of stock

20

PIN, COTTER

91490-40045-00

1

$6.80

In stock

21

WHEEL, FRONT

29U-25180-00-35

1
Out of stock

22

VALVE, RIM(2GH)

93900-00030-00

—

$14.46

In stock

23

—

$3.00

In stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

25

NUT(624)

95380-10600-00

—

$2.14

In stock

26

22X11.00-8 KT221TL

94122-11572-00

1
Out of stock

27

SEALED CHAIN YT175

94580-40050-00

1
Out of stock

27

DID520V-48L SEALED

94581-18048-00

1
Out of stock

28

PULLER, CHAIN 2

5V6-25389-00-00

1
Out of stock

29

PIN, CLEVIS (24X)

90240-06103-00

—

$6.45

In stock

30

PIN, COTTER

91490-20025-00

—

$1.31

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

NUT, U

95617-08100-00

—

$6.78

In stock

33

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

34

PULLER, CHAIN 1

5V7-25388-00-00

1
Out of stock

35

BOLT

90109-08630-00

1
Out of stock

36

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock
