1990 Yamaha YSR50A (YSR50A) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1990 Yamaha YSR50A (YSR50A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

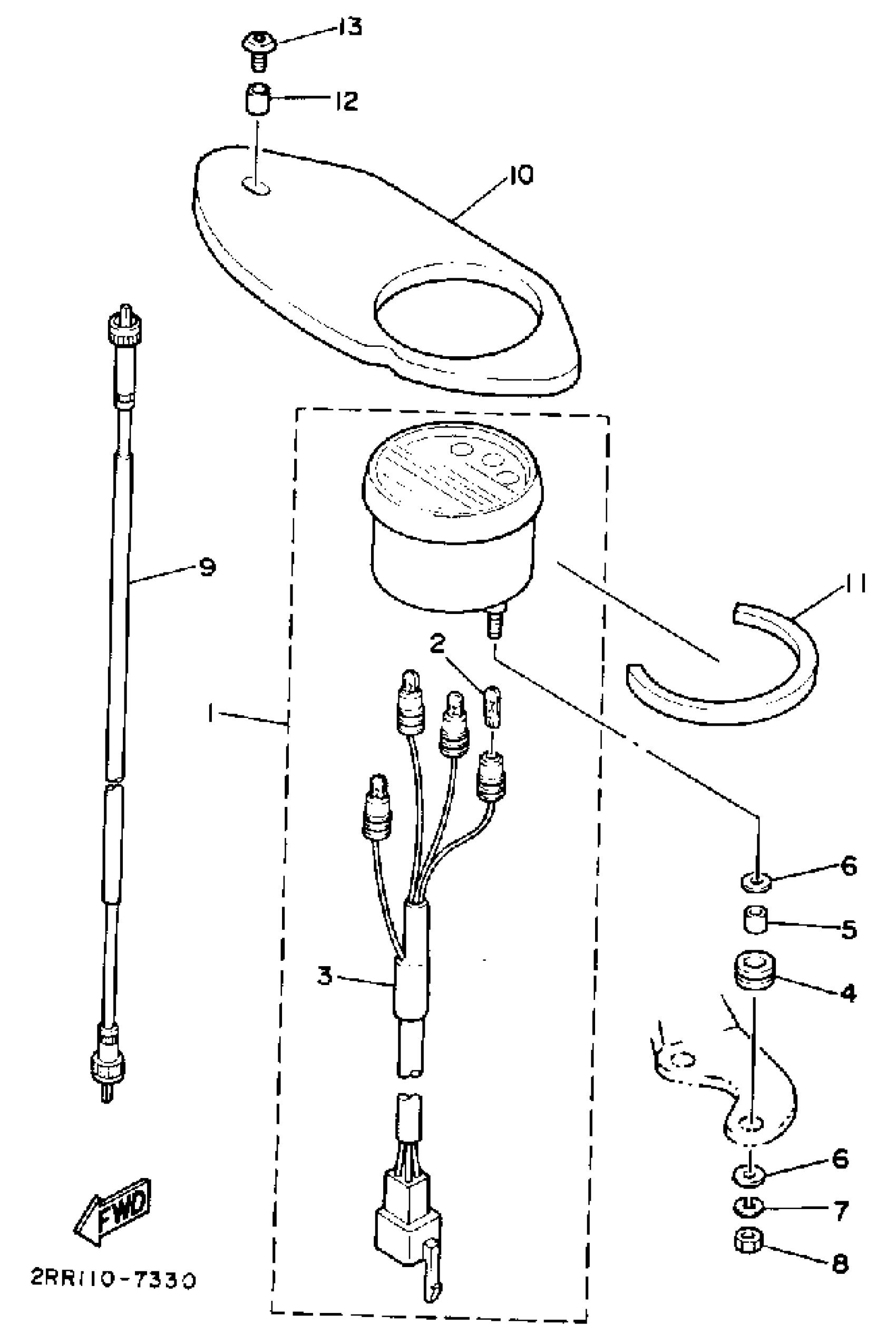

1990 Yamaha YSR50A (YSR50A) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

2RR-83510-A0-00

1
Out of stock

2

BULB (6V 3W)

4N0-83516-00-00

1
Out of stock

3

. SOCKET CORD ASSEMBLY

2RR-83509-00-00

1
Out of stock

4

GROMMET(80K)

90480-13428-00

1

$5.10

In stock

5

COLLAR (26H)

90387-053H3-00

1
Out of stock

6

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

SDMTR,CABLE

2AL-83550-01-00

1
Out of stock

10

PANEL, METER

2AL-83611-00-00

1
Out of stock

11

DAMPER

3AJ-28371-00-00

1
Out of stock

12

COLLAR (420)

90387-06241-00

1

$6.18

In stock

13

—

$4.40

In stock
← Headlight Starter →
