1990 Yamaha YSR50A (YSR50A) Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1990 Yamaha YSR50A (YSR50A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

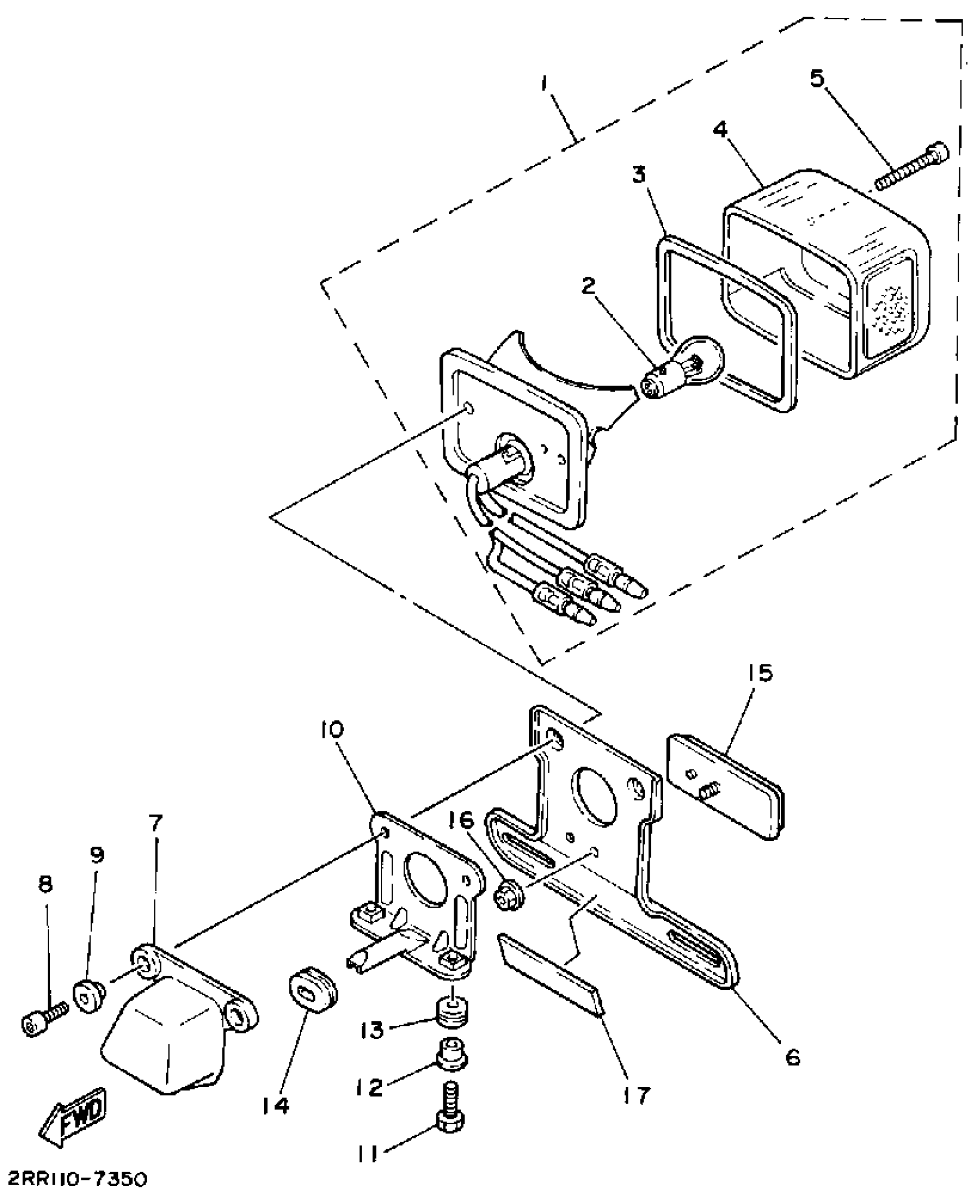

1990 Yamaha YSR50A (YSR50A) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSEMBLY

1M1-84510-60-00

1
Out of stock

2

. BULB

1M1-84514-60-00

1
Out of stock

3

GASKET, TAIL LENS

1M1-84523-60-00

1
Out of stock

4

LENS, TAIL LAMP

1M1-84521-60-00

1
Out of stock

5

SCREW, ADJUSTING

5BF-8433E-00-00

1
Out of stock

6

BRACKET,LICENSE

1UV-84751-00-R4

1
Out of stock

7

COVER

3L8-84544-00-00

1
Out of stock

8

BOLT, HEXAGON SOCKET HEAD(1KF)

90110-06104-00

—
Out of stock

9

COLLAR (8G8)

90387-06681-00

1
Out of stock

10

BRACKET, TAILLIGHT

2RR-84519-00-00

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

12

COLLAR (2H1)

90387-06638-00

1
Out of stock

13

GROMMET(80K)

90480-13428-00

1
Out of stock

14

GROMMET(1KT)

90480-01445-00

—
Out of stock

15

REAR REFLECTOR ASSY

3Y6-85130-02-00

1
Out of stock

16

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock

17

DAMPER 2

34M-21639-00-00

1
Out of stock
