1967 Yamaha YM2C (YM2C) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

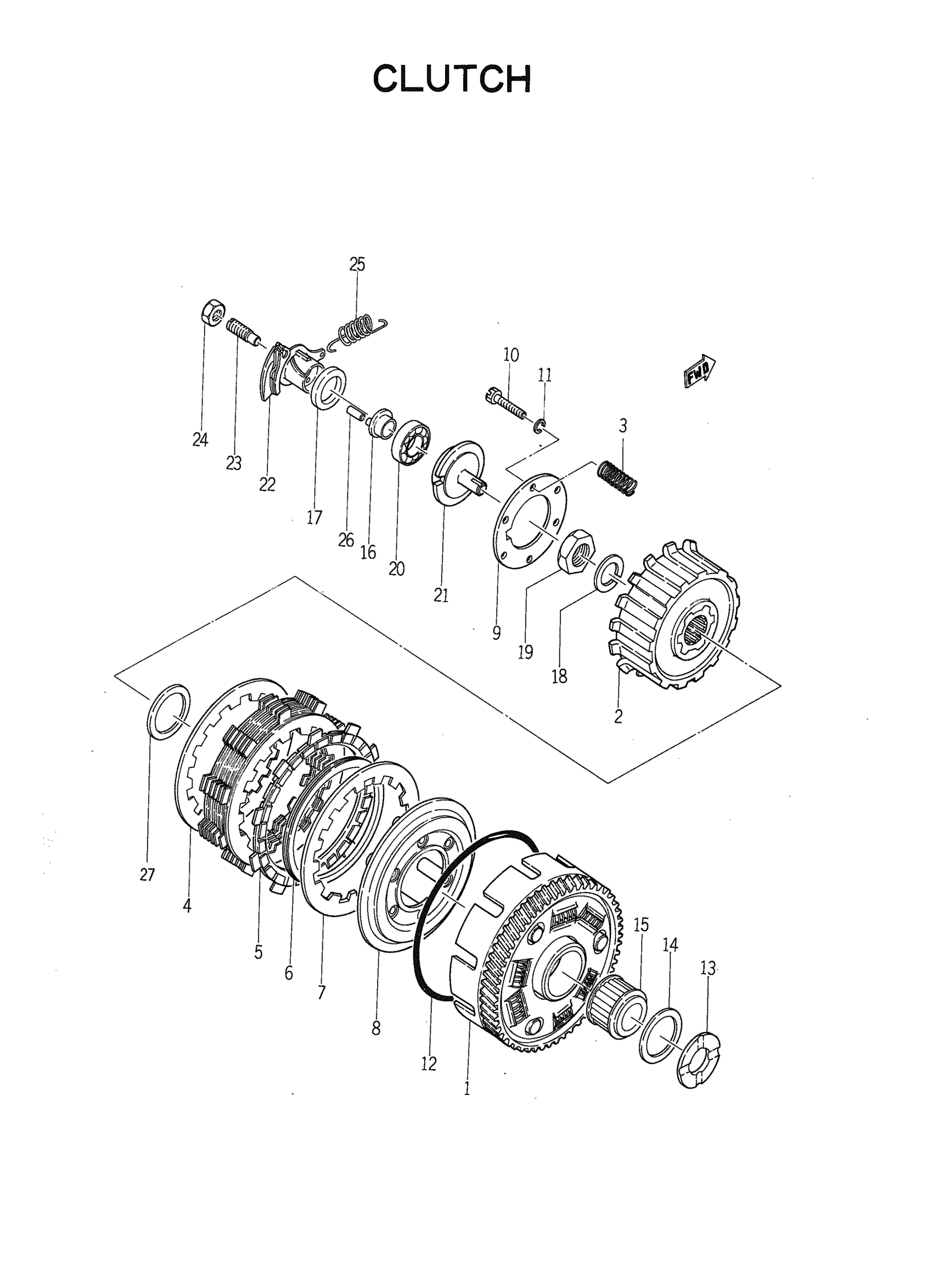

1967 Yamaha YM2C (YM2C) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI DRVN GEAR

246-16150-00-00

1
Out of stock

2

BOSS, CLUTCH

170-16371-00-00

1
Out of stock

3

SPRING COMPRESSION168163330000

90501-23138-00

—
Out of stock

4

PLATE, CLUTCH 1

168-16324-10-00

—

$19.09

In stock

5

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

6

. RING, CUSHION

168-16367-00-00

1
Out of stock

7

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

8

PLATE,PRESSURE 1

168-16351-91-00

1
Out of stock

9

PLATE, PRESSURE 2

168-16352-00-00

1
Out of stock

10

SCREW, SPRING

168-16337-00-00

1
Out of stock

10

SCREW, HEXAGON

90153-05012-00

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

O-RING

93211-10097-00

1
Out of stock

13

WASHER, PLATE(1FK)

90201-252K4-00

—
Out of stock

14

WASHER, THRUST

168-16153-00-20

1
Out of stock

14

WASHER, THRUST

168-16153-00-21

1
Out of stock

14

WASHER, THRUST

168-16153-00-22

1
Out of stock

14

WASHER, THRUST

168-16153-00-23

1
Out of stock

14

BEARING, FLAT #41

93341-23504-00

1
Out of stock

15

SPACER 1

170-16181-00-00

1
Out of stock

15

BEARING, CYLINDER.#18

93318-32501-00

1
Out of stock

16

PLUG, PUSH

168-16349-00-00

1
Out of stock

17

OIL SEAL

93101-25030-00

1
Out of stock

18

WASHER(N15)

92907-18100-00

—

$7.09

In stock

19

NUT

90170-18089-00

1
Out of stock

20

BEARING, CYLINDER.#16

93316-00301-00

1
Out of stock

21

CROWN, PUSH

170-16348-00-00

1
Out of stock

22

PUSH LEVER ASSEMBLY

170-16340-00-00

1
Out of stock

23

BOLT,SET

90113-08020-00

1
Out of stock

24

. NUT

95380-08700-00

1

$3.07

In stock

25

SPRING, TENSION

90506-10023-00

1
Out of stock

26

PIN, DOWEL

93603-14026-00

—
Out of stock

27

WASHER, THRUST

168-16153-00-20

1
Out of stock

27

WASHER, THRUST

168-16153-00-21

1
Out of stock

27

WASHER, THRUST

168-16153-00-22

1
Out of stock

27

WASHER, THRUST

168-16153-00-23

1
Out of stock

27

PLATE, THRUST (2)

170-16164-00-00

—
Out of stock
