1967 Yamaha YM2C (YM2C) Transmission Diagram

← All diagrams

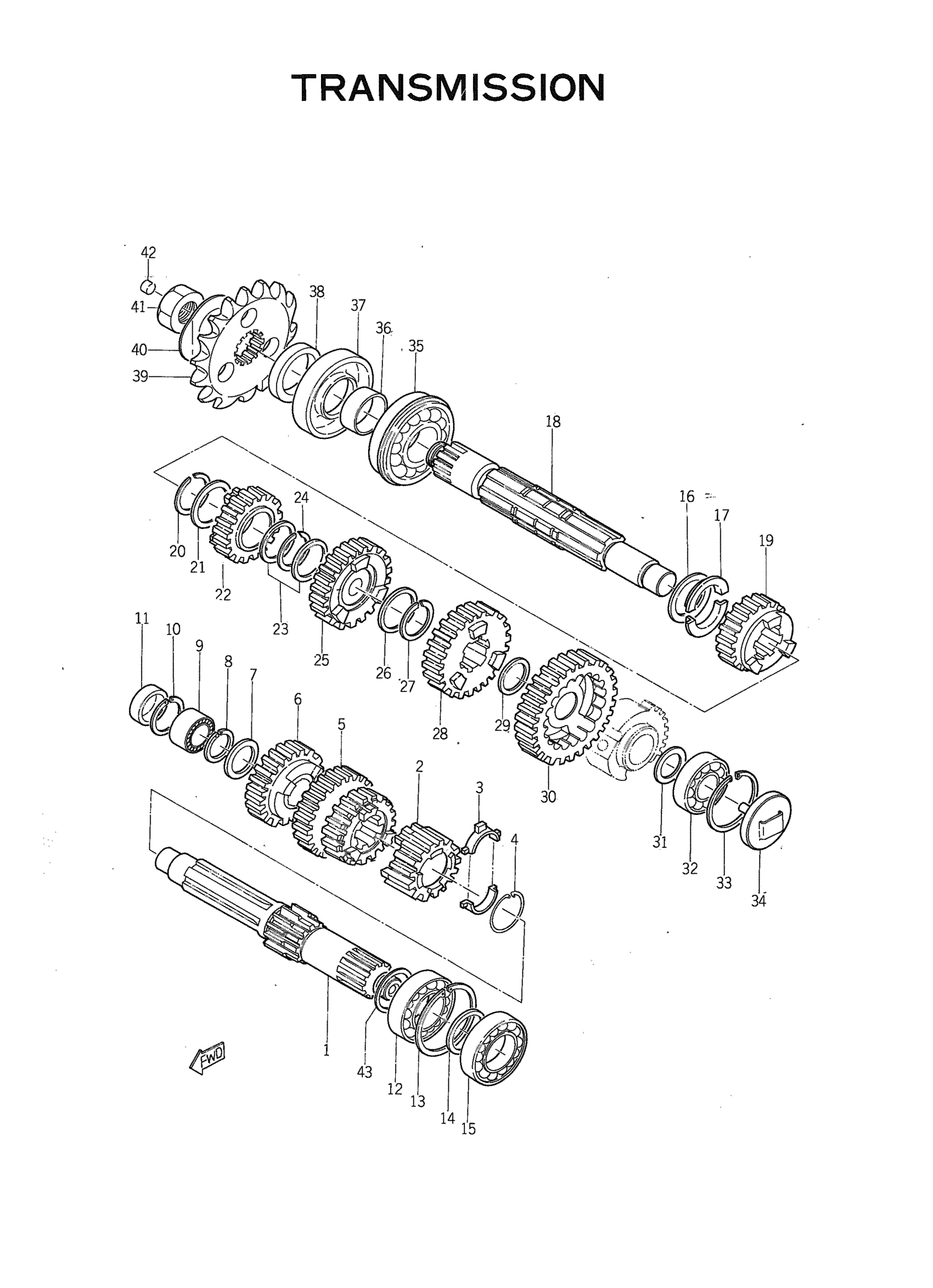

Find the part on the Transmission diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1967 Yamaha YM2C (YM2C) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

170-17411-00-00

1
Out of stock

2

GEAR,2ND PINION

246-17121-00-00

1
Out of stock

3

PLATE, SETTING

156-17115-00-00

1
Out of stock

4

CLIP

90468-14036-00

1
Out of stock

5

GEAR, 3RD PINION

159-17131-01-00

1
Out of stock

6

GEAR,4TH PINION

246-17141-00-00

1
Out of stock

7

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

8

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

9

BEARING, CYLINDER.#11

93311-21704-00

1
Out of stock

10

CIRCLIP

99009-25500-00

1

$5.62

In stock

11

PLUG, BLIND

156-17481-00-00

1
Out of stock

12

BEARING(1FF)

93306-00519-00

1

$31.24

In stock

13

CIRCLIP, INNER

93450-47011-00

1
Out of stock

14

SPACER

90560-25044-00

1
Out of stock

15

BRG,R-B 6005 47MM 85G KY

93306-00507-00

1

$36.14

In stock

16

SHIM 2

156-17428-00-00

1
Out of stock

17

SPACER, DRIVE AXLE

156-17429-00-00

1
Out of stock

18

AXLE, DRIVE

156-17421-00-00

1
Out of stock

19

GEAR, 4TH WHEEL

159-17241-00-00

1
Out of stock

20

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

21

WASHER,SPEC'L SHAP

90209-21081-00

1
Out of stock

22

GEAR,5TH WHEEL

246-17251-00-00

1
Out of stock

23

WASHER PLATE 152172260000

90201-25490-00

—
Out of stock

24

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

25

GEAR,3RD WHEEL

246-17231-00-00

1
Out of stock

26

WASHER,SPEC'L SHAP

90209-21081-00

1
Out of stock

27

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

28

GEAR,2ND WHEEL

145-17221-00-00

1
Out of stock

29

WASHER, PLATE (5N0)

90201-203E7-00

—

$7.22

In stock

30

GEAR,1ST WHEEL

246-17211-00-00

1
Out of stock

31

SHIM 1

156-17427-00-06

1
Out of stock

31

SHIM 1

156-17427-00-07

1
Out of stock

31

SHIM 1

156-17427-00-08

1
Out of stock

32

—

$31.64

In stock

33

CIR-CLIP (70R)

93420-40064-00

—
Out of stock

34

BUCKET, OIL 1

156-17488-00-00

1
Out of stock

35

BEARING

93306-30502-00

1
Out of stock

36

COLLAR(1AE)

90387-253M9-00

—

$34.15

In stock

37

OIL SEAL, SD-TYPE

93102-30025-00

1
Out of stock

37

OIL SEAL, SD-TYPE

93102-35038-00

1
Out of stock

38

SEAL, FELT

156-17465-00-00

1
Out of stock

39

SPROCKET, DRIVE

156-17461-30-00

1
Out of stock

39

SPROCKET, DRIVE

156-17461-40-00

1
Out of stock

39

SPROCKET, DRIVE

156-17461-60-00

1
Out of stock

39

SPROCKET, DRIVE

156-17461-70-00

1
Out of stock

39

SPROCKET, DRIVE

156-17461-80-00

1
Out of stock

39

SPROCKET DRIVE

9384E-15155-00

1
Out of stock

40

WASHER, LOCK(3LD)

90215-21290-00

—
Out of stock

41

NUT 152174630000

90179-18020-00

—
Out of stock

42

PLUG,TAPER

90336-09002-00

1
Out of stock

43

SHIM 1

156-17417-00-01

1
Out of stock
