1967 Yamaha YM2C (YM2C) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

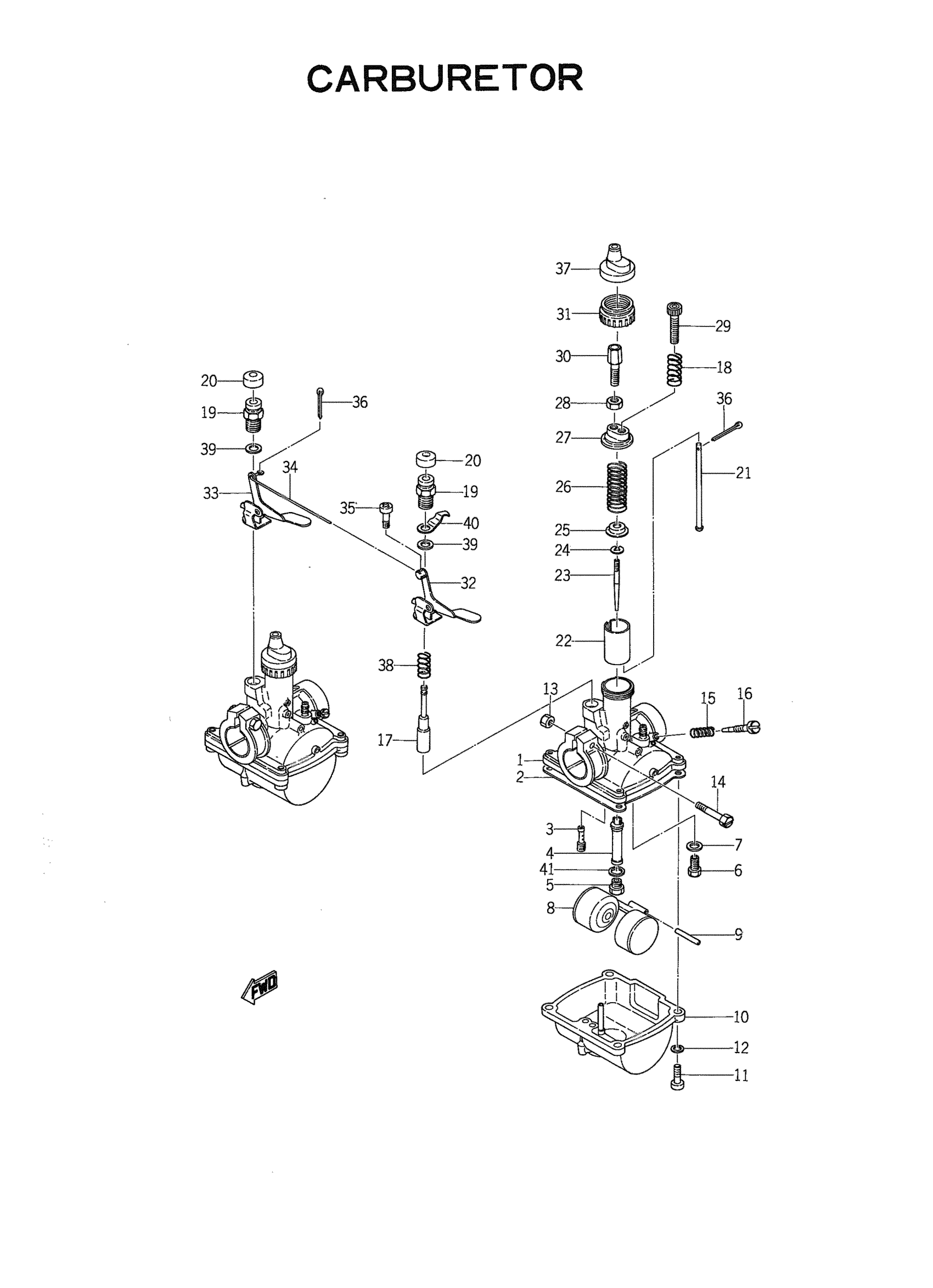

1967 Yamaha YM2C (YM2C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

172-14101-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 2

172-14102-00-00

1
Out of stock

2

. GASKET, FLOAT CHAMBER

156-14184-00-00

1
Out of stock

3

. JET, PILOT #25

127-14142-25-00

1
Out of stock

3

. JET, PILOT #30

127-14142-30-00

1
Out of stock

3

JET, PILOT (# 25)

193-14142-25-A0

1
Out of stock

3

JET, PIL0T (# 30)

193-14142-30-A0

—
Out of stock

4

. NOZZLE, MAIN

170-14141-35-00

1
Out of stock

5

. JET, MAIN #80

137-14143-16-00

1
Out of stock

5

. JET, MAIN #90

137-14143-18-00

1
Out of stock

5

JET, MAIN #100

137-14143-20-00

—

$7.34

In stock

5

JET, MAIN #110

137-14143-22-A0

1
Out of stock

5

. JET, MAIN #120

137-14143-24-00

1
Out of stock

5

JET, MAIN #130

137-14143-26-A0

1
Out of stock

5

JET, MAIN #140

137-14143-28-A0

—

$8.78

In stock

6

. NEEDLE VALVE ASSEMBLY

137-14190-20-00

1
Out of stock

7

WASHER, VALVE SEAT

127-14195-00-00

—

$6.40

In stock

8

. FLOAT

156-14185-00-00

1
Out of stock

9

PIN, FLOAT

127-14186-00-00

—

$6.23

In stock

10

BODY,FLOAT CHMBR 1

246-14181-08-00

1
Out of stock

11

SCREW,PAN HEAD

92503-04015-00

1
Out of stock

11

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

13

NUT, HOLDING

137-14164-00-00

1
Out of stock

14

SCREW, BODY FITTING

137-14125-00-00

1
Out of stock

15

. SPRING, AIR ADJUSTING

137-14134-00-00

1
Out of stock

16

SCREW, AIR ADJUSTING

137-14123-00-00

1
Out of stock

17

PLUNGER, STARTER

132-14171-00-00

—

$31.29

In stock

18

SPRING, THROTTLE STOP

137-14133-00-00

—

$6.15

In stock

19

CAP, PLUNGER

132-14174-00-00

1
Out of stock

20

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

21

BAR, THROTTLE

156-14114-00-00

1
Out of stock

22

VALVE, THROTTLE 1

156-14112-25-00

1
Out of stock

23

. NEEDLE

156-14116-03-00

1
Out of stock

24

CLIP

137-14137-00-00

1
Out of stock

25

SEAT, SPRING

156-14136-00-00

1
Out of stock

26

SPRING, THRTL VALVE

156-14131-01-00

1
Out of stock

27

TOP, MIXING CHAMBER

156-14158-00-00

1
Out of stock

28

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

29

SCREW, THRTL STOP

127-14121-00-00

1
Out of stock

30

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

31

CAP, MIXING CHAMBER

156-14168-00-00

1
Out of stock

32

LEVER, STARTER 1

802-14175-00-00

1
Out of stock

33

LEVER, STARTER 2

170-14176-00-00

1
Out of stock

34

ROD, STARTER LEVER

170-14177-00-00

1
Out of stock

35

SCREW, ROD

132-14486-00-00

1
Out of stock

35

SCREW, ROD

193-14486-00-00

1
Out of stock

36

. PIN, COTTER

91401-10015-00

1
Out of stock

37

CAP

156-14169-00-00

1
Out of stock

38

SPRING, PLUNGER

156-14135-00-00

—

$7.72

In stock

39

WASHER, STARTER LVR

132-14179-00-00

1
Out of stock

40

PLATE, STARTER LEVER

170-14178-00-00

1
Out of stock

41

WASHER,MAIN JET

137-14153-00-00

—
Out of stock

42

GASKET, INSULATING

156-14156-01-00

1
Out of stock
