1967 Yamaha YM2C (YM2C) Gear Unit Diagram

← All diagrams

Find the part on the Gear Unit diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

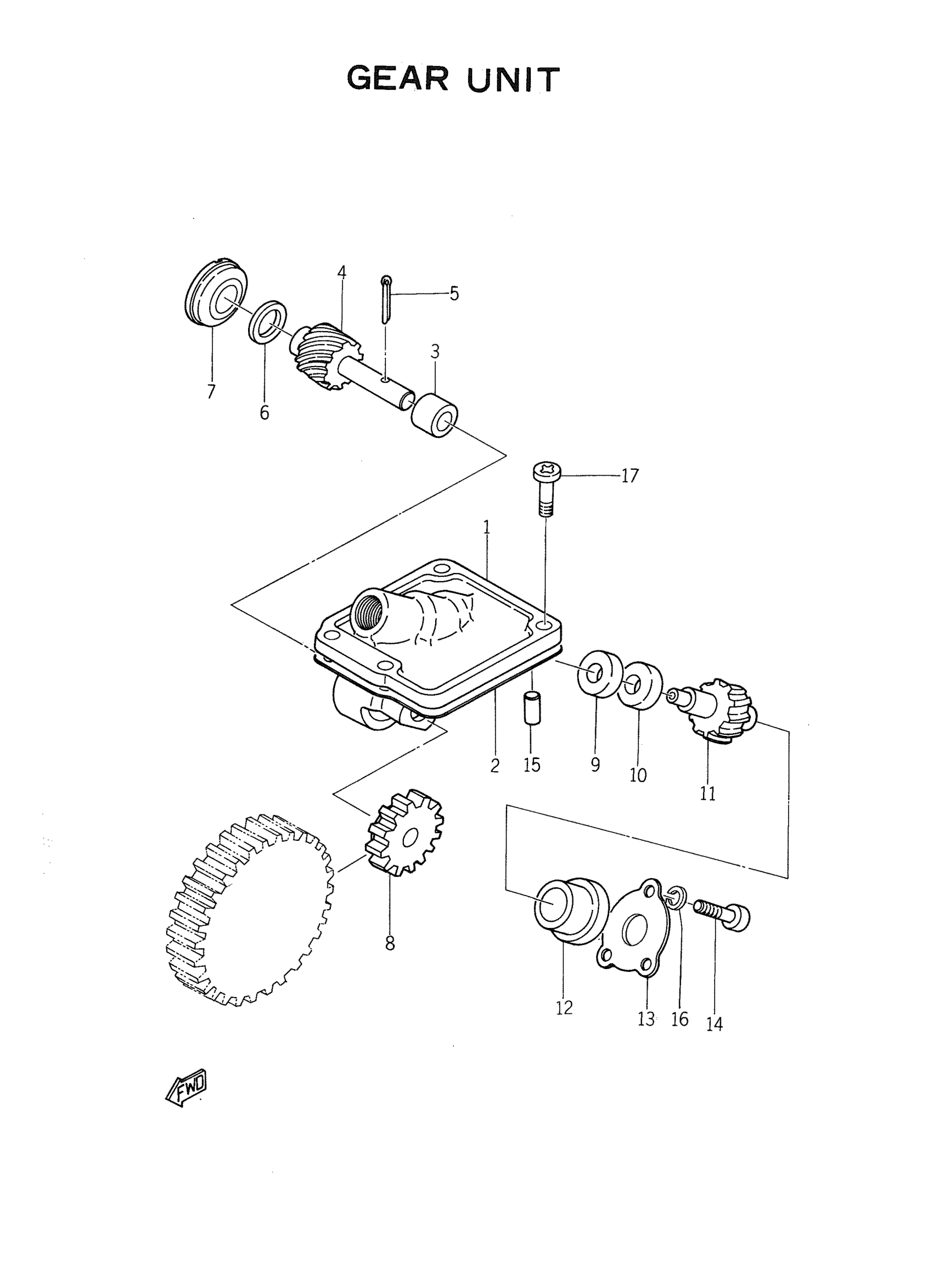

1967 Yamaha YM2C (YM2C) Gear Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING,TACH GEAR

170-17811-00-00

1
Out of stock

2

GASKET

156-17818-00-00

1
Out of stock

3

BUSH,SOLID

90380-08006-00

1
Out of stock

4

GEAR, DRIVE

156-17831-00-00

1
Out of stock

5

PIN COTTER

91490-30025-00

1
Out of stock

6

SHIM

150-17837-00-07

1
Out of stock

7

BUSH, DR GEAR OUTER

152-17833-00-00

1
Out of stock

8

GEAR, PRIMARY

159-17851-00-00

1
Out of stock

9

OIL SEAL,SDO-TYPE

93109-10023-00

1
Out of stock

10

BUSH,SOLID

90380-10008-00

1
Out of stock

11

GEAR, DRIVEN

156-17841-00-00

1
Out of stock

12

BUSH, DRVN GR OUTER

156-17843-00-00

1
Out of stock

13

COVER, HOUSING

156-17821-00-00

1
Out of stock

14

SCREW, PAN HEAD

92503-04008-00

1
Out of stock

14

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

15

PIN,DOWEL (137)

93604-14012-00

—

$1.88

In stock

16

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock
