1967 Yamaha YM2C (YM2C) Shifter 1 Diagram

← All diagrams

Find the part on the Shifter 1 diagram for your 1967 Yamaha YM2C (YM2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

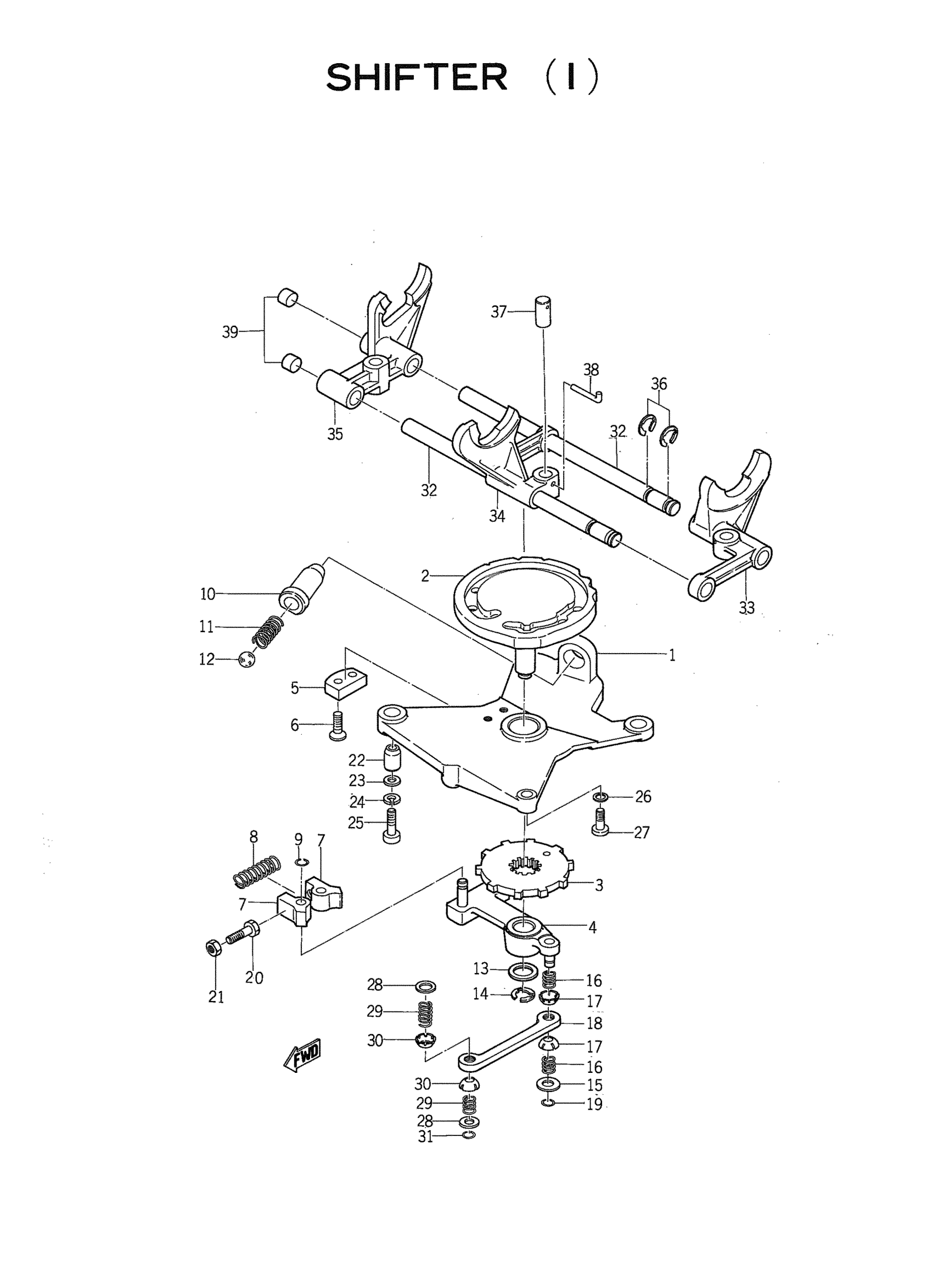

1967 Yamaha YM2C (YM2C) Shifter 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PLATE,CAM FITTING

170-18351-00-00

1
Out of stock

2

PLATE, SHIFT CAM

152-18331-00-00

1
Out of stock

3

PLATE, WORKING

156-18333-00-00

1
Out of stock

4

PAWL HOLDER ASSEMBLY

156-18180-00-00

1
Out of stock

5

PLATE, PAWL

150-18352-00-00

1
Out of stock

6

SCREW,OVAL HEAD

92601-04012-00

1
Out of stock

6

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

7

PAWL, SHIFTER

150-18182-00-00

1
Out of stock

8

SPRING,COMPRESSION

90501-06026-00

1
Out of stock

9

CLIP, PAWL LOCK

150-18189-00-00

1
Out of stock

10

BUSH

150-18587-00-00

1
Out of stock

11

SPRING,COMPRESSION

90501-16098-00

1
Out of stock

12

BALL 13/32

93513-32008-00

—

$1.75

In stock

13

SHIM

150-18334-00-09

1
Out of stock

14

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

15

WASHER,PLATE

90201-06046-00

1
Out of stock

16

SPRING,COMPRESSION

90501-05021-00

1
Out of stock

17

WASHER,SPEC'L SHAP

90209-06083-00

1
Out of stock

18

LINK, SHIFT

150-18335-00-00

1
Out of stock

19

CLIP, PAWL LOCK

150-18189-00-00

1
Out of stock

20

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

28

WASHER,PLATE

90201-06046-00

1
Out of stock

29

SPRING,COMPRESSION

90501-05021-00

1
Out of stock

30

WASHER,SPEC'L SHAP

90209-06083-00

1
Out of stock

31

CLIP, PAWL LOCK

150-18189-00-00

1
Out of stock

32

SHAFT, SHIFTER

150-18318-00-00

1
Out of stock

33

FORK, SHIFT 1

152-18311-00-00

1
Out of stock

34

FORK, SHIFT 2

152-18312-00-00

1
Out of stock

35

FORK, SHIFT 3

152-18313-00-00

1
Out of stock

36

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

37

ROTOR

150-18316-00-00

1
Out of stock

38

PIN, SPEC''L SHAPE

90249-02003-00

1
Out of stock

39

PLUG, BLIND

90334-10006-00

1
Out of stock
