2012 Yamaha V Star 950 (XVS95BS) Meter Diagram

← All diagrams

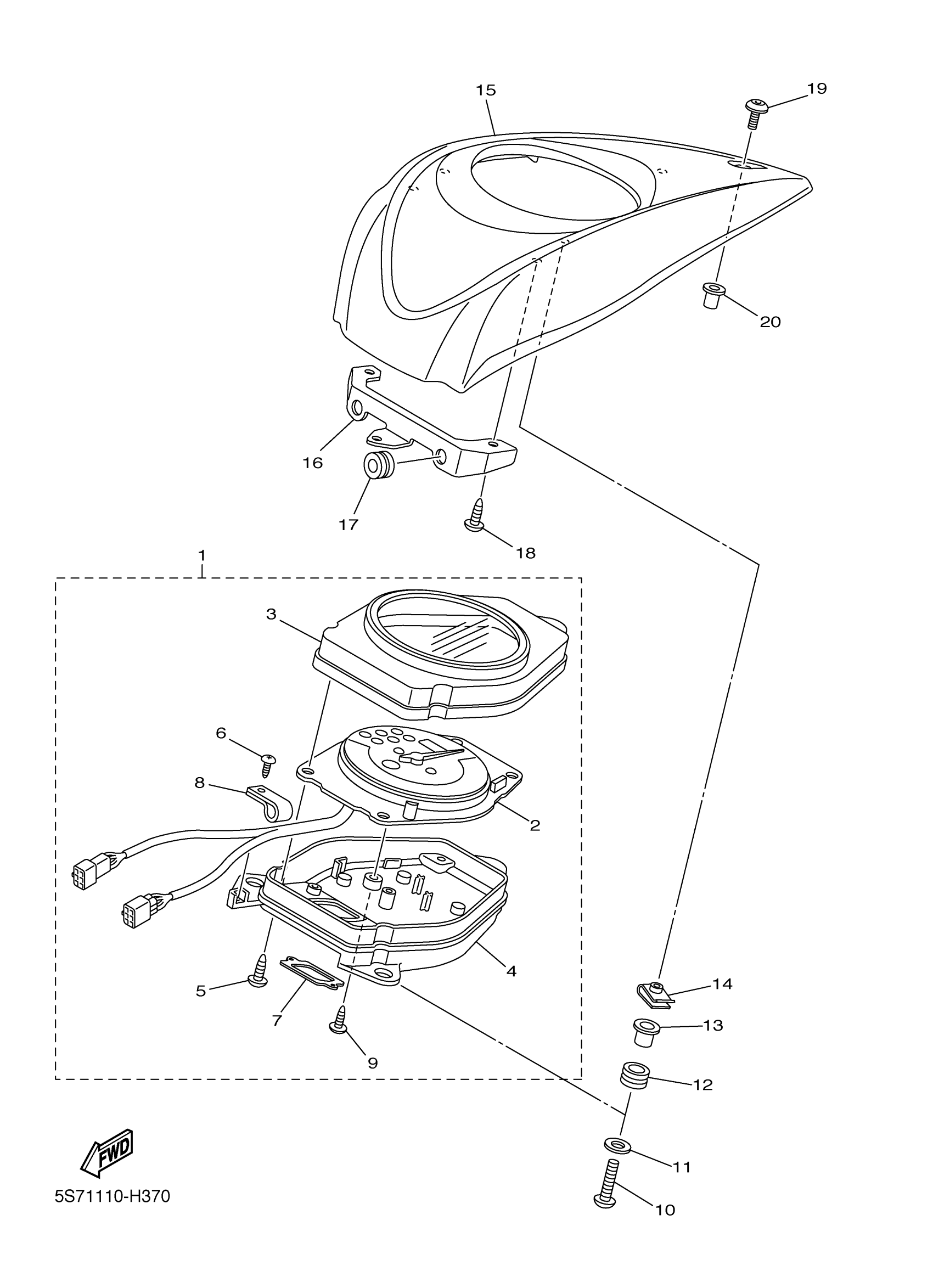

Find the part on the Meter diagram for your 2012 Yamaha V Star 950 (XVS95BS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha V Star 950 (XVS95BS) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

5S7-83500-40-00

—
Out of stock

2

SPEEDOMETER ASSY

5S7-83510-00-00

—
Out of stock

3

CASE, METER UPPER

5VN-8353E-20-00

—
Out of stock

4

CASE, METER LOWER

4WM-8353F-02-00

—
Out of stock

5

SCREW, TRUSS TAP.

97707-40016-00

1

$6.18

In stock

6

SCREW, TAPPING(71E)

90164-04023-00

—
Out of stock

7

BRACKET, METER

4WM-83519-00-00

1
Out of stock

8

CLAMP

5EL-8357E-00-00

1
Out of stock

9

SCREW, TRUSS TAP.

97707-40010-00

1
Out of stock

10

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

11

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

12

DAMPER

4WM-83513-00-00

1

$6.52

In stock

13

COLLAR(82M)

90387-050T5-00

1
Out of stock

14

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

15

COVER, METER

5S7-83559-01-00

—
Out of stock

16

STAY

5S7-24216-00-00

—
Out of stock

17

GROMMET(2GH)

90480-12475-00

—

$6.68

In stock

18

SCREW, TRUSS TAP.

97707-50014-00

—

$6.18

In stock

19

BOLT

90111-05007-00

—

$6.29

In stock

20

NUT(1KT)

90179-05523-00

—

$4.33

In stock
