- V Star 950 (XVS95BS)
Electrical 2
2012 Yamaha V Star 950 (XVS95BS) Electrical 2 Diagram

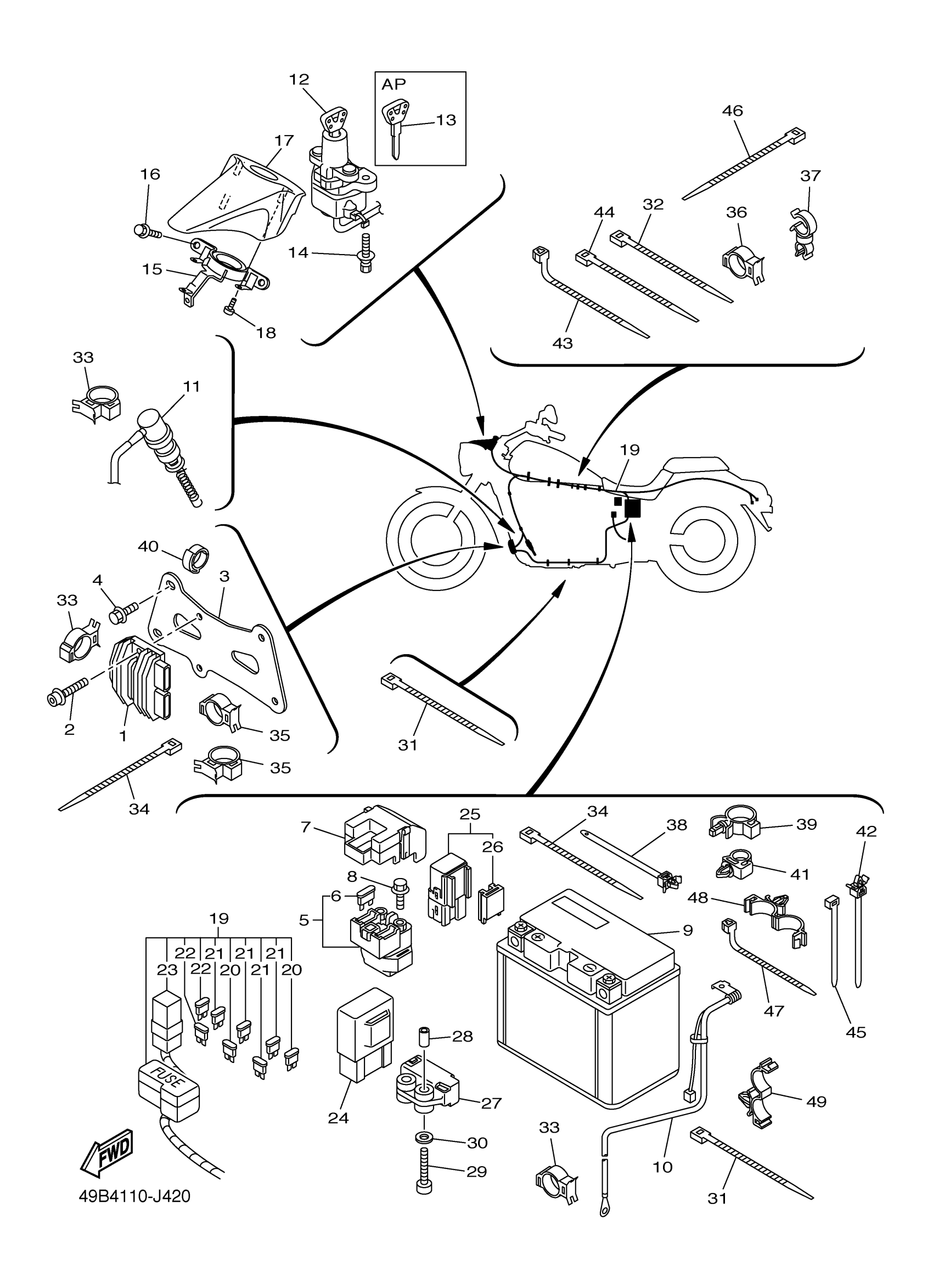

Find the part on the Electrical 2 diagram for your 2012 Yamaha V Star 950 (XVS95BS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
BOLT, HEXAGON SOCKET HEAD
90110-06263-00
3
BRACKET, REGULATOR
5S7-2128A-00-00
10
WIRE, MINUS LEAD
5S7-82116-00-00
11
STOP SWITCH ASSY
5S7-82530-00-00
12
MAIN SWITCH STEERING LOCK
3D8-82501-02-00
15
BRACKET 1
5S7-2334G-00-00
17
COVER, MAIN SWITCH
5S7-82568-00-00
19
WIRE HARNESS ASSY
5S7-82590-20-00
24
RELAY ASSY
5VK-81950-33-00
29
BOLT
91312-04025-00
30
WASHER, PLATE
90201-04027-00
31
BAND
1UA-82591-00-00
32
BAND
1UA-82591-00-00
37
CLAMP
90464-20004-00
40
CLAMP
90464-16003-00
48
CLAMP
90464-18007-00
