2012 Yamaha V Star 950 (XVS95BS) Flasher Light Diagram

← All diagrams

Find the part on the Flasher Light diagram for your 2012 Yamaha V Star 950 (XVS95BS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

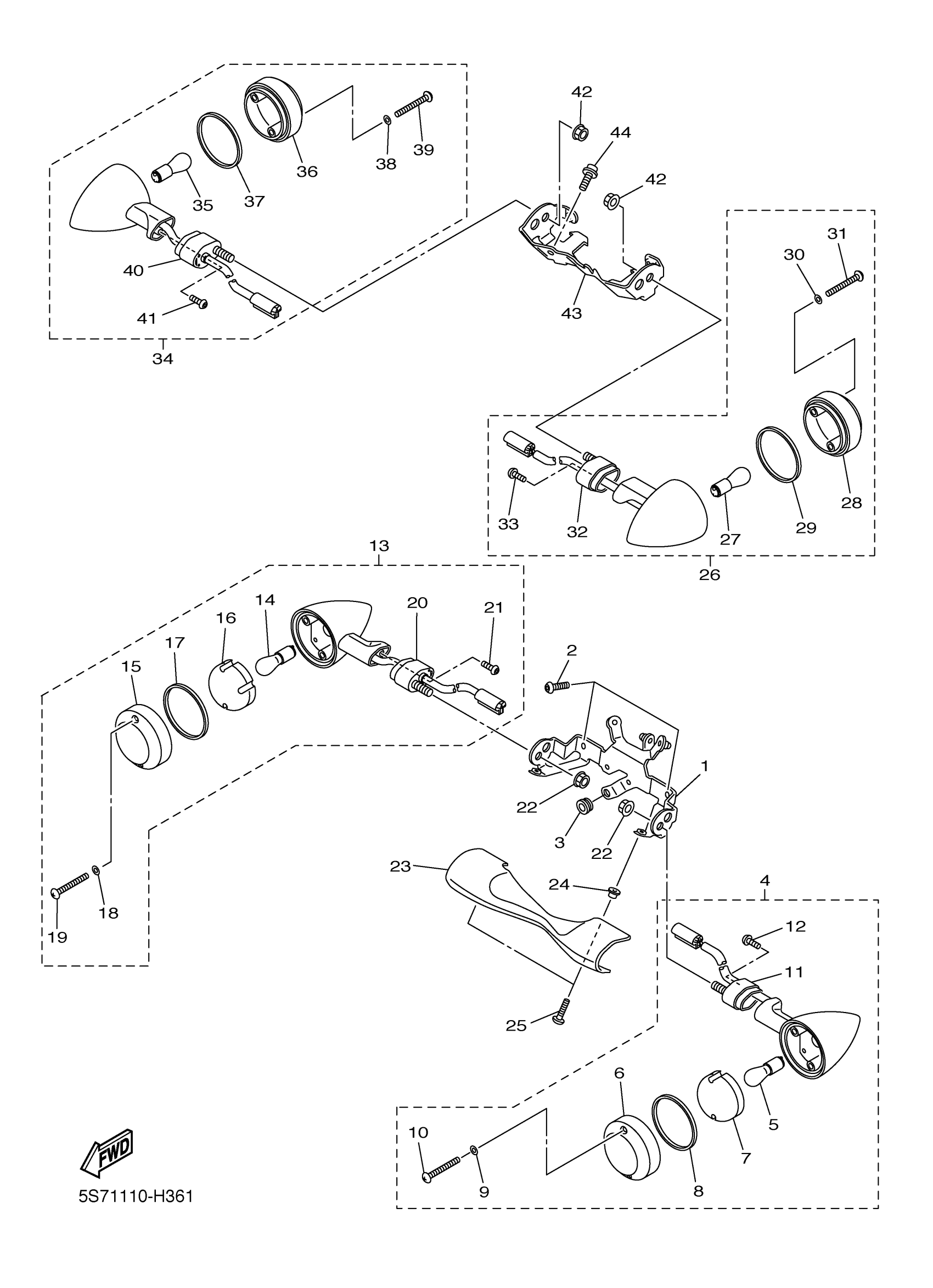

2012 Yamaha V Star 950 (XVS95BS) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY, HEADLIGHT

5S7-23174-00-00

1
Out of stock

2

BOLT, BUTTON HEAD

92012-08016-00

1
Out of stock

3

GROMMET

90480-13014-00

1
Out of stock

4

FRONT FLASHER LIGHT ASSY 1

3D8-83310-00-00

1
Out of stock

5

BULB

1A2-84714-50-00

1
Out of stock

6

LENS, FLASHER

3D8-83312-00-00

1
Out of stock

7

LENS, INNER 1

3D8-8333L-00-00

—
Out of stock

8

GASKET, FLASHER LENS

3D8-83313-00-00

1
Out of stock

9

WASHER

3D8-83348-00-00

1
Out of stock

10

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

1
Out of stock

11

STAY, FLASHER 2

3D8-83369-00-00

1
Out of stock

12

SCREW, PAN TAP.2 SLIT

97707-40614-00

1
Out of stock

13

FRONT FLASHER LIGHT ASSY 2

3D8-83320-00-00

1
Out of stock

14

BULB

1A2-84714-50-00

1
Out of stock

15

LENS, FLASHER

3D8-83312-00-00

1
Out of stock

16

LENS, INNER 1

3D8-8333L-00-00

—
Out of stock

17

GASKET, FLASHER LENS

3D8-83313-00-00

1
Out of stock

18

WASHER

3D8-83348-00-00

1
Out of stock

19

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

1
Out of stock

20

STAY, FLASHER 2

3D8-83369-00-00

1
Out of stock

21

SCREW, PAN TAP.2 SLIT

97707-40614-00

1
Out of stock

22

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

23

COVER, OUTER 1

3D8-23122-10-00

—
Out of stock

24

COLLAR

90387-06255-00

—
Out of stock

25

BOLT,HEX. SOCKET BUTTON

90111-05037-00

—
Out of stock

26

REAR FLASHER LIGHT ASSY 1

3D8-83330-00-00

—
Out of stock

27

BULB FLASHER (12V21W)

3D8-83311-00-00

—
Out of stock

28

LENS, FLASHER

3D8-83312-00-00

1
Out of stock

29

GASKET, FLASHER LENS

3D8-83313-00-00

1
Out of stock

30

WASHER

3D8-83348-00-00

1
Out of stock

31

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

1
Out of stock

32

STAY, FLASHER 2

3D8-83369-00-00

1
Out of stock

33

SCREW, PAN TAP.2 SLIT

97707-40614-00

1
Out of stock

34

REAR FLASHER LIGHT ASSY 2

3D8-83340-00-00

—
Out of stock

35

BULB FLASHER (12V21W)

3D8-83311-00-00

—
Out of stock

36

LENS, FLASHER

3D8-83312-00-00

1
Out of stock

37

GASKET, FLASHER LENS

3D8-83313-00-00

1
Out of stock

38

WASHER

3D8-83348-00-00

1
Out of stock

39

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

1
Out of stock

40

STAY, FLASHER 2

3D8-83369-00-00

1
Out of stock

41

SCREW, PAN TAP.2 SLIT

97707-40614-00

1
Out of stock

42

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

43

STAY, FLASHER 1

5S7-83368-10-00

—
Out of stock

44

BOLT, HEXAGON SOCKET HEAD

90110-06219-00

—
Out of stock
