2012 Yamaha V Star 950 (XVS95BS) Headlight Diagram

← All diagrams

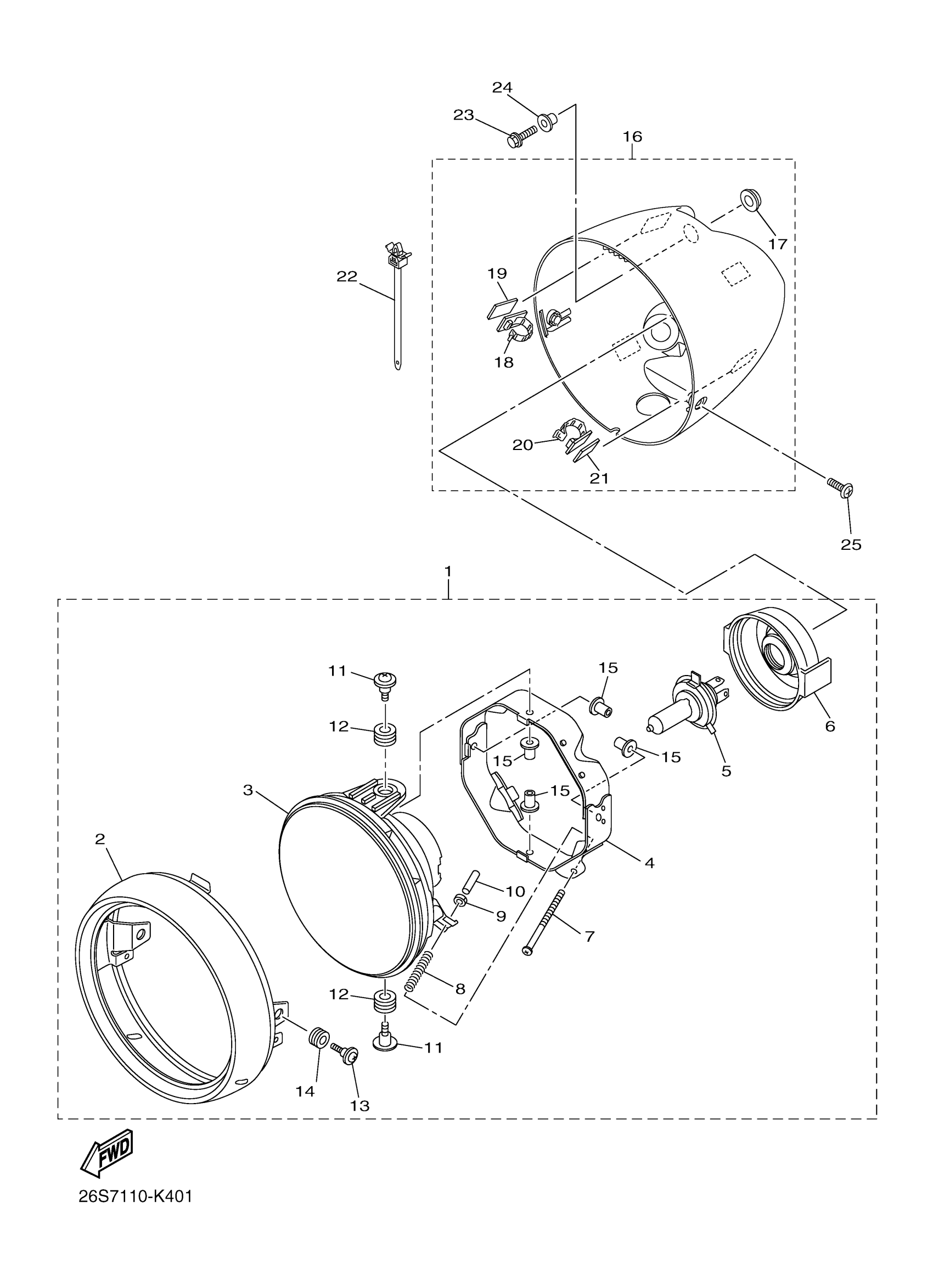

Find the part on the Headlight diagram for your 2012 Yamaha V Star 950 (XVS95BS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha V Star 950 (XVS95BS) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

5S7-84310-00-00

1

$464.68

In stock

2

RIM, HEADLIGHT

5S7-84315-00-00

1

$82.36

In stock

3

LENS ASSY

5PX-84320-00-00

1

$184.20

In stock

4

STAY, HEADLIGHT 1

5PX-84318-00-00

1

$59.90

In stock

5

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

6

COVER, SOCKET

5PX-84397-00-00

1

$34.05

In stock

7

SCREW, RIM ADJUSTING

5PX-84331-00-00

1

$6.38

In stock

8

SPRING, SCREW

5PX-84332-00-00

1

$6.38

In stock

9

NUT, ADJUSTING

5PX-84334-00-00

1

$6.38

In stock

10

CAP,1

5PX-84385-00-00

1

$6.38

In stock

11

SCREW, RIM FITTING

5PX-84325-00-00

1

$6.43

In stock

12

GROMMET

5PX-84354-00-00

1

$4.91

In stock

13

SCREW, RIM FITTING

5PX-84125-00-00

1

$6.43

In stock

14

GROMMET

5PX-84352-00-00

1

$5.93

In stock

15

NUT

5PX-84317-00-00

1

$10.20

In stock

16

BODY ASSY

5S7-84330-10-00

—
Out of stock

17

DAMPER, HEADLIGHT 1

42X-84366-00-00

—

$18.66

In stock

18

CLAMP

90464-20020-00

—
Out of stock

19

SEAL

5S7-28307-00-00

—
Out of stock

20

CLAMP

90464-17002-00

—
Out of stock

21

SEAL 1

5S7-28428-00-00

—
Out of stock

22

CLAMP

90465-13M76-00

1
Out of stock

23

BOLT, FLANGE

95022-06025-00

—

$1.46

In stock

24

COLLAR

90387-06175-00

—

$6.65

In stock

25

SCREW, BIND(4DN)

98980-05014-00

—

$1.78

In stock
