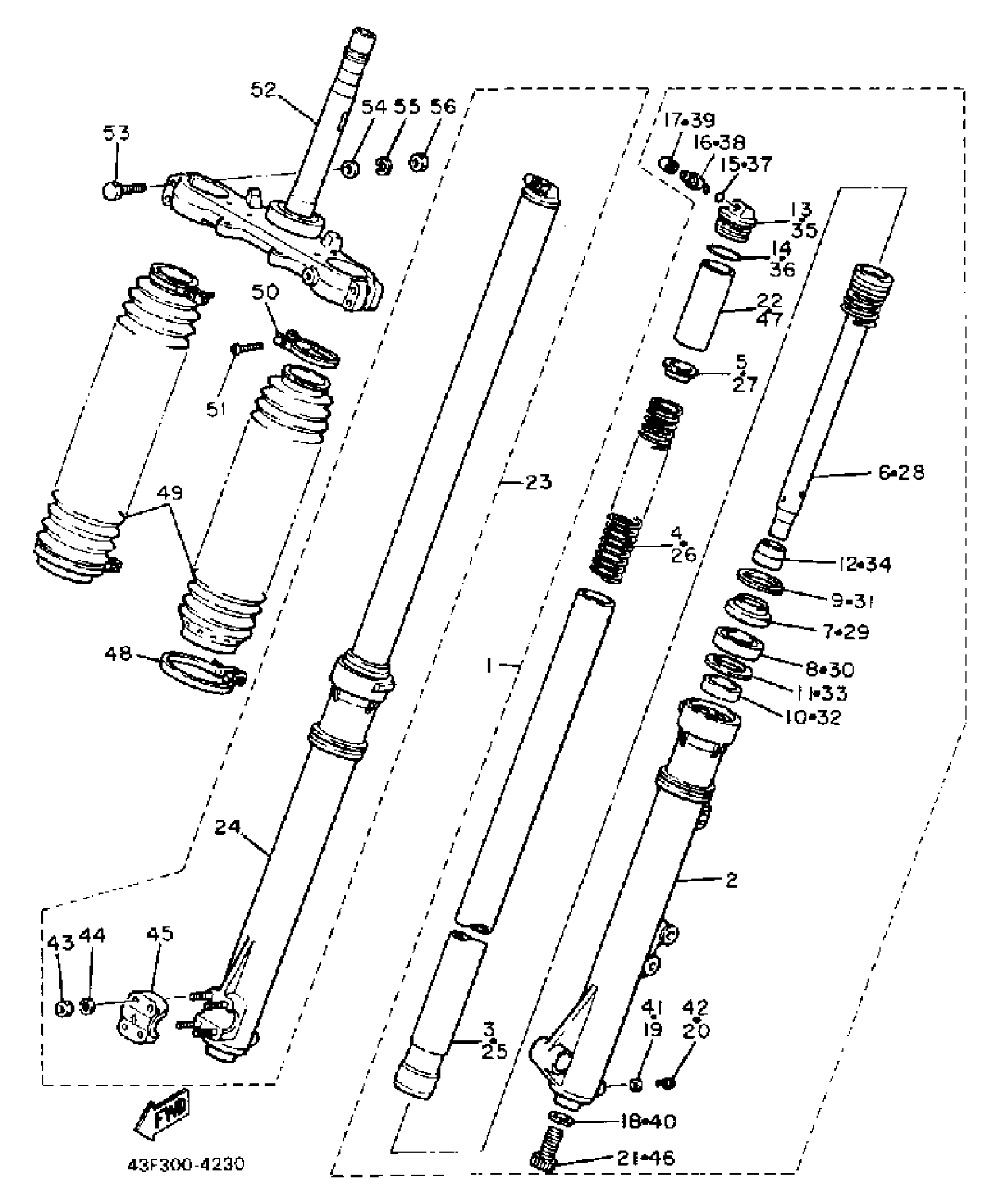

Find the part on the Front Fork diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha XT600 CA (XT600SC) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT FORK ASSEMBLY LH

43F-W2313-00-00

1
Out of stock

2

. TUBE, OUTER 1

43F-23126-10-38

1
Out of stock

3

. INNER TUBE 1

43F-23110-10-00

1
Out of stock

4

. SPRING, FRONT FORK

43F-23141-10-00

1
Out of stock

5

. SEAT, SPRING UPPER

43F-23142-10-00

1
Out of stock

6

. CYLINDER, FRTFRK

43F-23170-10-00

1
Out of stock

7

SEAL, DUST

43F-23144-10-00

1

$21.22

In stock

8

OIL SEAL

43F-23145-10-00

1

$27.57

In stock

9

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

10

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

11

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

12

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

13

. BOLT, CAP

43F-23111-10-00

1
Out of stock

14

O-RING

43F-23188-10-00

1

$6.43

In stock

15

O-RING

3J2-23147-00-00

1
Out of stock

16

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

17

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

18

GASKET

4V4-23158-L0-00

—
Out of stock

19

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

20

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

21

BOLT

4V4-23181-L0-00

—
Out of stock

22

SPACER

(43F-23118-10-00)

1
Out of stock

23

FRT FORK ASSEMBLY RH

(43F-W2314-00-00)

1
Out of stock

24

. TUBE, OUTER 2

43F-23136-10-38

1
Out of stock

25

. INNER TUBE 1

43F-23110-10-00

1
Out of stock

26

. SPRING, FRONT FORK

43F-23141-10-00

1
Out of stock

27

. SEAT, SPRING UPPER

43F-23142-10-00

1
Out of stock

28

. CYLINDER, FRTFRK

43F-23170-10-00

1
Out of stock

29

SEAL, DUST

43F-23144-10-00

1

$21.22

In stock

30

OIL SEAL

43F-23145-10-00

1

$27.57

In stock

31

CLIP, OIL SEAL

26H-23156-00-00

1

$6.62

In stock

32

METAL, SLIDE 1

4FM-23125-40-00

1

$28.47

In stock

33

WASHER, OIL SEAL

36Y-23146-10-00

1

$22.06

In stock

34

. SPINDLE, TAPER

4V4-23173-L0-00

1
Out of stock

35

. BOLT, CAP

43F-23111-10-00

1
Out of stock

36

O-RING

43F-23188-10-00

1

$6.43

In stock

37

O-RING

3J2-23147-00-00

1
Out of stock

38

AIR VALVE COMP.

4V4-23190-L0-00

—

$52.77

In stock

39

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

40

GASKET

4V4-23158-L0-00

—
Out of stock

41

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

42

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

43

NUT(6TA)

95317-06600-00

—

$2.69

In stock

44

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

45

HOLDER, AXLE

4V2-23167-L0-00

—
Out of stock

46

BOLT

4V4-23181-L0-00

—
Out of stock

47

SPACER

(43F-23118-10-00)

1
Out of stock

48

BAND

3LD-23489-00-00

—

$26.00

In stock

49

BOOT (CHAPPY RED)

43F-23191-11-00

—
Out of stock

50

BAND

43M-23192-L0-00

—
Out of stock

51

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

52

UNDER BRACKET

43F-23340-30-39

1
Out of stock

53

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

54

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

55

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

56

NUT(6L2)

95333-08600-00

—

$3.20

In stock
