1986 Yamaha XT600 CA (XT600SC) Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1986 Yamaha XT600 CA (XT600SC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

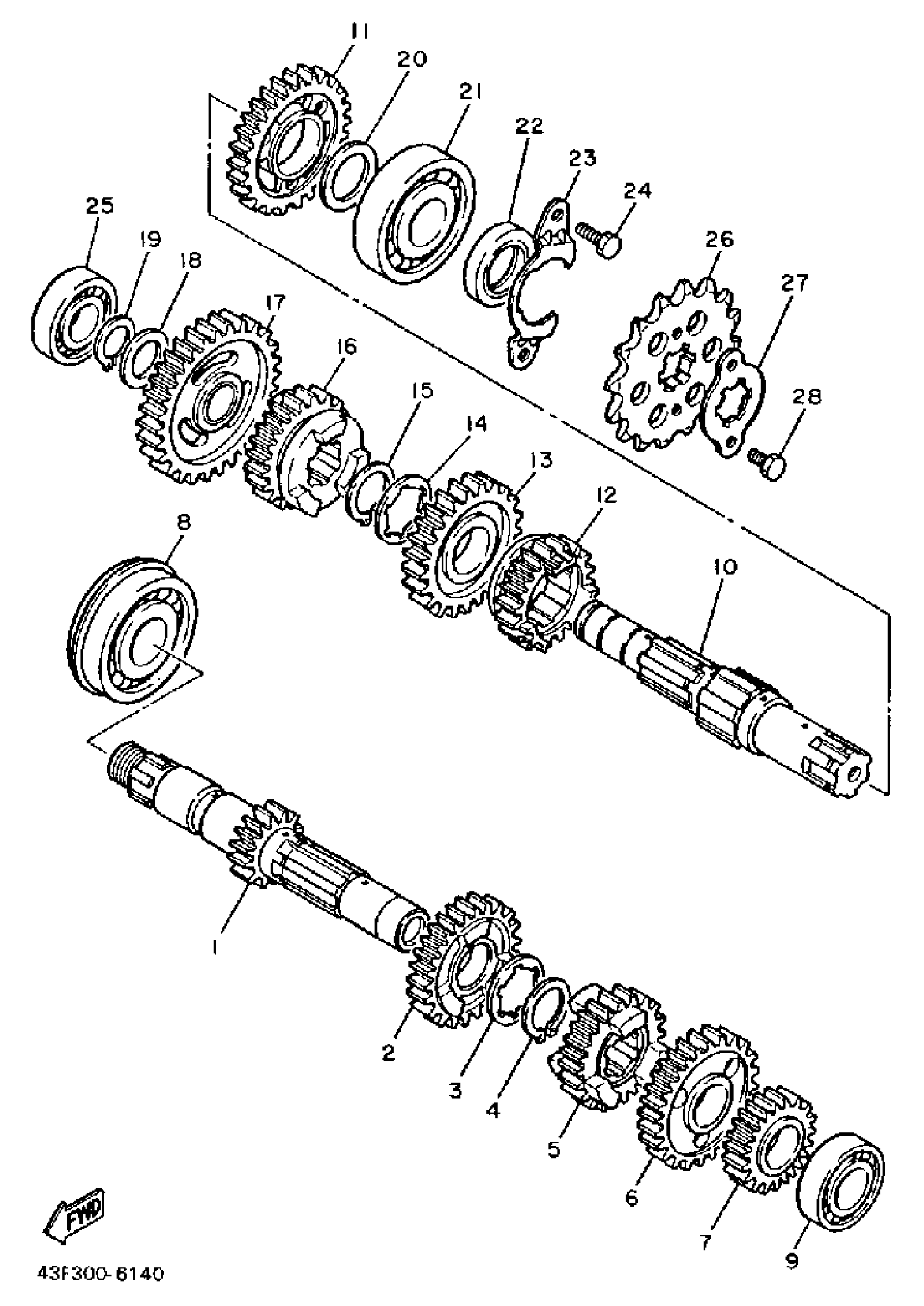

1986 Yamaha XT600 CA (XT600SC) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. AXLE, MAIN

34L-17411-00-00

1
Out of stock

2

GEAR, 4TH PINION

34K-17141-00-00

1

$70.40

In stock

3

WASHER (3J3)

90209-22191-00

1

$5.62

In stock

4

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

5

. GEAR, 3RD PINION (20T)

5Y1-17131-00-00

1
Out of stock

6

GEAR, 5TH PINION

1VJ-17151-01-00

1
Out of stock

7

GEAR, 2ND PINION

34K-17121-01-00

1

$31.63

In stock

8

BEARING (5Y1)

93306-30540-00

1
Out of stock

9

BEARING (34L)

93306-00431-00

1
Out of stock

10

DRIVE AXLE ASSY

34K-17402-01-00

1
Out of stock

11

GEAR, 2ND WHEEL

5Y1-17221-01-00

1
Out of stock

12

GEAR, 5TH WHEEL

2JT-17251-10-00

1
Out of stock

13

GEAR, 3RD WHEEL (24T)

1VJ-17231-00-00

1
Out of stock

14

WASHER (3J3)

90209-22191-00

1

$5.62

In stock

15

CIRCLIP (4L0)

93440-25084-00

1

$3.96

In stock

16

GEAR,4TH WHEEL

55U-17241-00-00

1
Out of stock

17

GEAR,1ST WHEEL

99999-02306-00

1
Out of stock

18

WASHER PLATE 328171160000

90201-20276-00

—
Out of stock

19

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

20

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

21

BEARING (5Y1)

93306-30535-00

—
Out of stock

22

OIL SEAL (3Y1)

93102-25226-00

—

$12.31

In stock

23

PLATE, COVER

5Y1-17471-00-00

—

$9.40

In stock

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

25

BEARING (5Y1)

93306-00426-00

—

$35.60

In stock

26

SPROCKET, DRIVE (5Y1-17461-50)

93834-15080-00

1
Out of stock

27

HOLDER, SPROCKET

3Y1-17456-00-00

—

$6.38

In stock

28

BOLT(3JP)

97017-06010-00

—

$2.62

In stock
