1982 Yamaha XT550 (XT550J) Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 1982 Yamaha XT550 (XT550J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

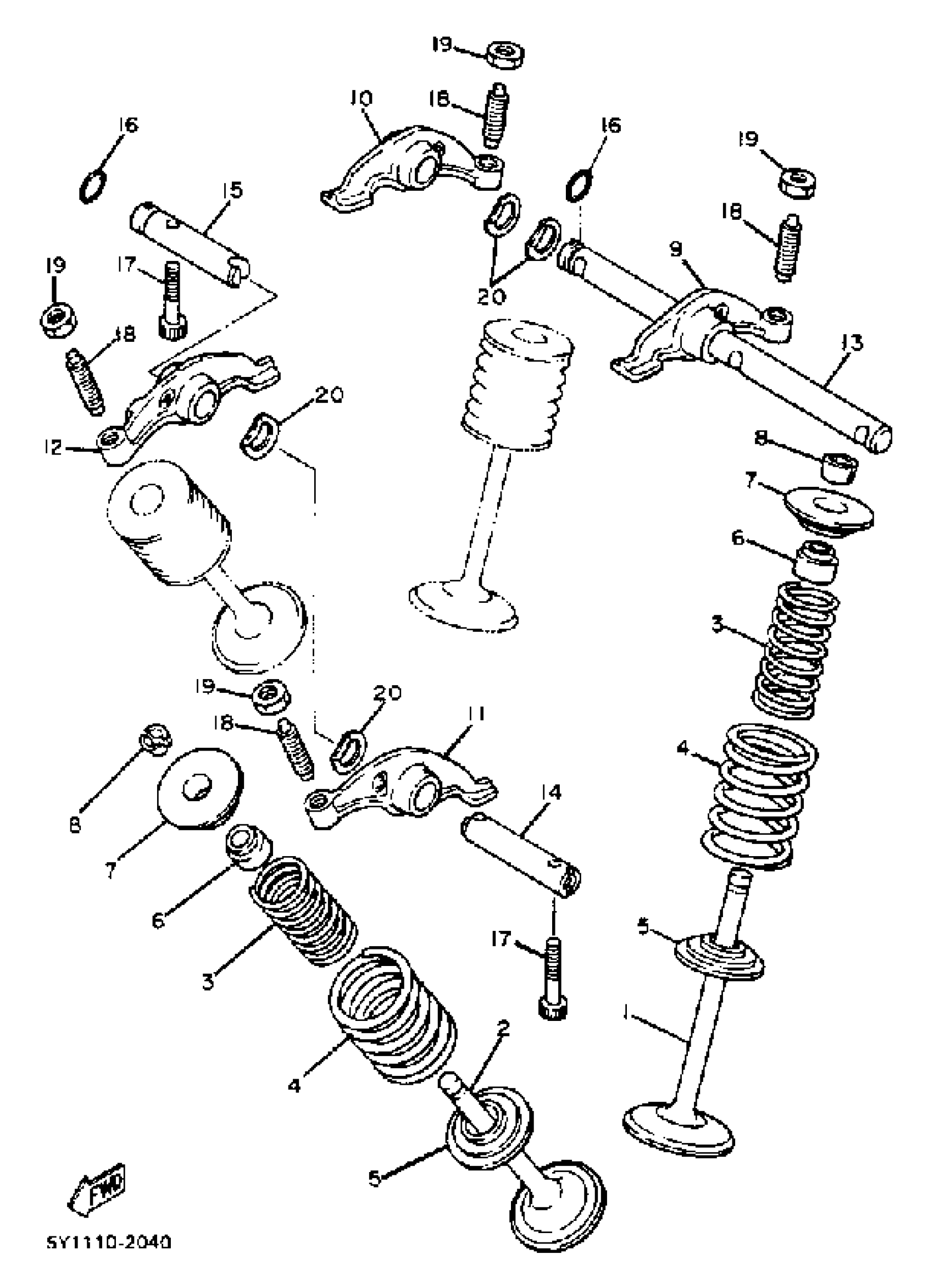

1982 Yamaha XT550 (XT550J) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

5Y1-12111-00-00

1
Out of stock

2

VALVE, EXHAUST

5Y1-12121-00-00

1
Out of stock

3

SPRING, VALVE INNER

5Y1-12113-00-00

—

$8.38

In stock

4

SPRING, VALVE OUTER

5Y1-12114-00-00

1

$9.88

In stock

5

SEAT, VALVE SPRING

4H7-12116-00-00

1
Out of stock

6

SEAL, VALVE STEM OIL

1J7-12119-01-00

1
Out of stock

7

RETAINER, VALVE SPRING

2F3-12117-00-00

1
Out of stock

8

LOCK, VALVE SPRING

1J7-12118-00-00

1
Out of stock

9

ARM, VALVE ROCKER

34K-12151-00-00

1
Out of stock

10

ARM, VALVE ROCKER 2

34K-12161-00-00

1
Out of stock

11

ARM,VALVE ROCKER 3

34K-12162-00-00

1
Out of stock

12

ARM, VALVE ROCKER 4

34K-12163-00-00

1
Out of stock

13

SHAFT, ROCKER

2NX-12146-00-00

1
Out of stock

14

SHAFT, ROCKER

5Y1-12156-00-00

1
Out of stock

15

SHAFT, ROCKER 3

5Y1-12166-00-00

1
Out of stock

16

O-RING (5Y1)

93210-08521-00

—

$5.86

In stock

17

—

$3.82

In stock

18

SCREW, VALVE ADJUSTING

2NX-12159-00-00

—

$10.23

In stock

19

NUT HEXAGON 371121580000

90170-06128-00

—

$6.17

In stock

20

WASHER, WAVE (17W)

90206-12074-00

—

$6.98

In stock
